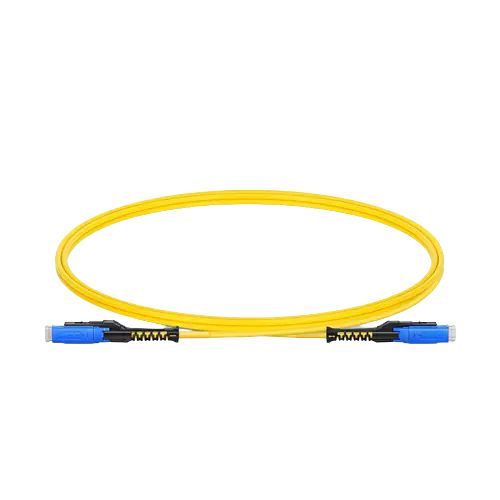

Name: US Conec MDC UPC to MDC UPC Uniboot Duplex OS2 Single Mode LSZH 2.0mm Fiber Optic Patch Cable, for 200/400G Network Connection
SKU: 7019
Availability: InStock

Specifications

Connector Type

MDC UPC to MDC UPC

Polish Type

UPC to UPC

Insertion Loss

≤0.3dB

Return Loss

≥50dB

Fiber Mode

OS2 9/125μm

Wavelength

1310/1550nm

Attenuation at 1310 nm

≤0.4dB/km

Attenuation at 1550 nm

≤0.3dB/km

Fiber Grade

G.657.A1 Fiber

Cable Jacket

LSZH/OFNR

Fiber Count

Duplex

Cable Diameter

2.0mm

Min. Bend Radius(Fiber Core)

10mm

Min. Bend Radius(Fiber Cable)

10/5D (Dynamic/Static)

Tensile Strength(Long Term / Short Term)

60/100N

Polarity

A (Tx) to B (Rx)

Operating Temperature

-10~70°C

Storage Temperature

-20~70°C

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. Cablefam adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: 3D Interferometer Test

: End-Face Inspection

: Insertion Loss and Return Loss Testing

Quality Assurance

Excellent quality is the foundation of Cablefam’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
