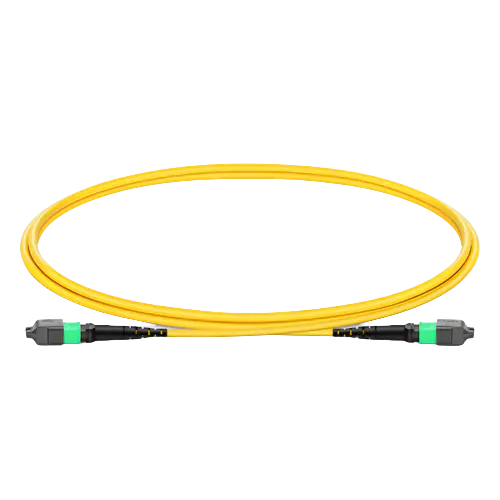

16 Fibers (OS2) Patch Cable, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB
16 Fibers (OS2) Patch Cable, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB - Image 2

16 Fibers (OS2) Patch Cable, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB

16 Fibers (OS2) Patch Cable, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB

Price range: $40.00 through $289.00
  • Use high-quality raw materials
  • Fast delivery by default DHL or Fedex
  • 60-day worry-free return and exchange
  • Professional customer service

Fiber Grade
G.657.A1 (Compatible with G.652.D)
Polish Type
APC to APC
Polarity
Type B
Fiber Mode
OS2 9/125μm
Fiber Count
16F
Wavelength
1310/1550nm
Cable Jacket/Flame Rating
LSZH/OFNR
Insertion Loss
≤0.35dB
Return Loss
≥60dB
Attenuation at 1310 nm
≤0.35 dB/km
Attenuation at 1550 nm
≤0.21dB/km
Min. Bend Radius(Fiber Core)
10mm
Min. Bend Radius(Fiber Cable)
10/5D (Dynamic/Static)
Cable Diameter
3.0mm
Tensile Strength
80/150N (Long/Short Term)
Connector Durability
≥ 500 – 1000 times
Operating Temperature
-20~70°C
