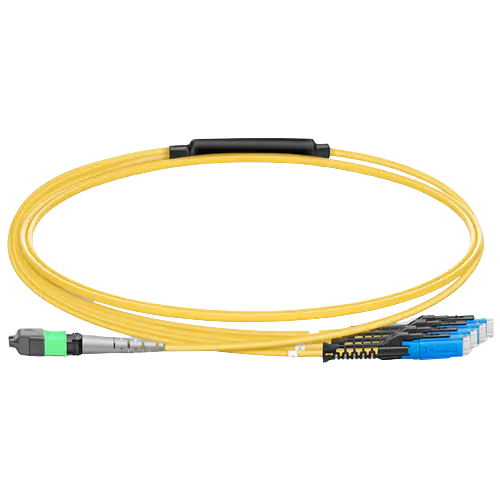

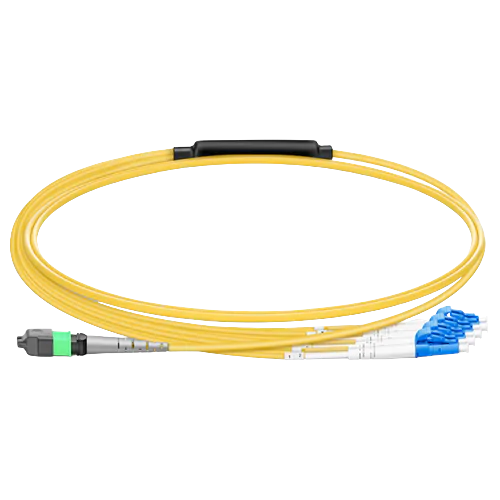

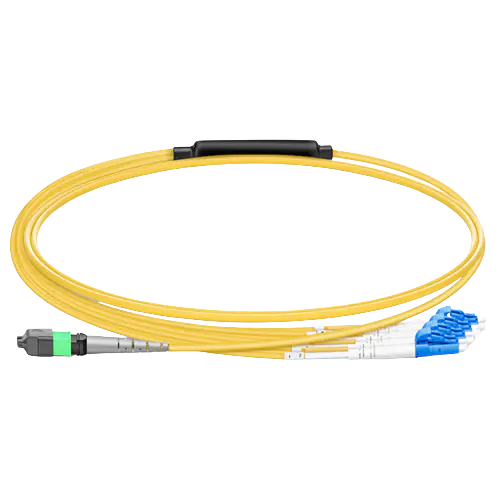

Single-mode (OS2) Harness Cable, Type B, LSZH, Yellow
Single-mode (OS2) Harness Cable, Type B, LSZH, Yellow - Image 2
Single-mode (OS2) Harness Cable, Type B, LSZH, Yellow - Image 3
Single-mode (OS2) Harness Cable, Type B, LSZH, Yellow - Image 4

Single-mode (OS2) Harness Cable, Type B, LSZH, Yellow

Single-mode (OS2) Harness Cable, Type B, LSZH, Yellow

Price range: $42.00 through $322.80
  • Use high-quality raw materials
  • Fast delivery by default DHL or Fedex
  • 60-day worry-free return and exchange
  • Professional customer service

Specifications

Fiber Grade
G.657.A1 (Compatible with G.652.D)
Polish Type
APC to UPC
Polarity
Type B
Fiber Mode
OS2 9/125μm
Fiber Count
8F to 4x2F
Wavelength
1310/1550nm
Cable Jacket/Flame Rating
LSZH/OFNR
Insertion Loss
≤0.35dB(MTP) ≤0.25dB(LC)
Return Loss
≥60dB(MTP) ≥50dB(LC)
Attenuation at 1310 nm
≤0.40 dB/km(MTP) ≤0.35 dB/km(LC)
Attenuation at 1550 nm
≤0.30dB/km(MTP) ≤0.21dB/km(LC)
Min. Bend Radius(Fiber Core)
10mm
Min. Bend Radius(Fiber Cable)
10/5D (Dynamic/Static)
Cable Diameter
3.0mm(Cable OD) 2.0mm(Breakout OD)
Tensile Strength
80/150N (Long/Short Term)
Connector Durability
≥ 500 – 1000 times
Operating Temperature
-20~70°C
