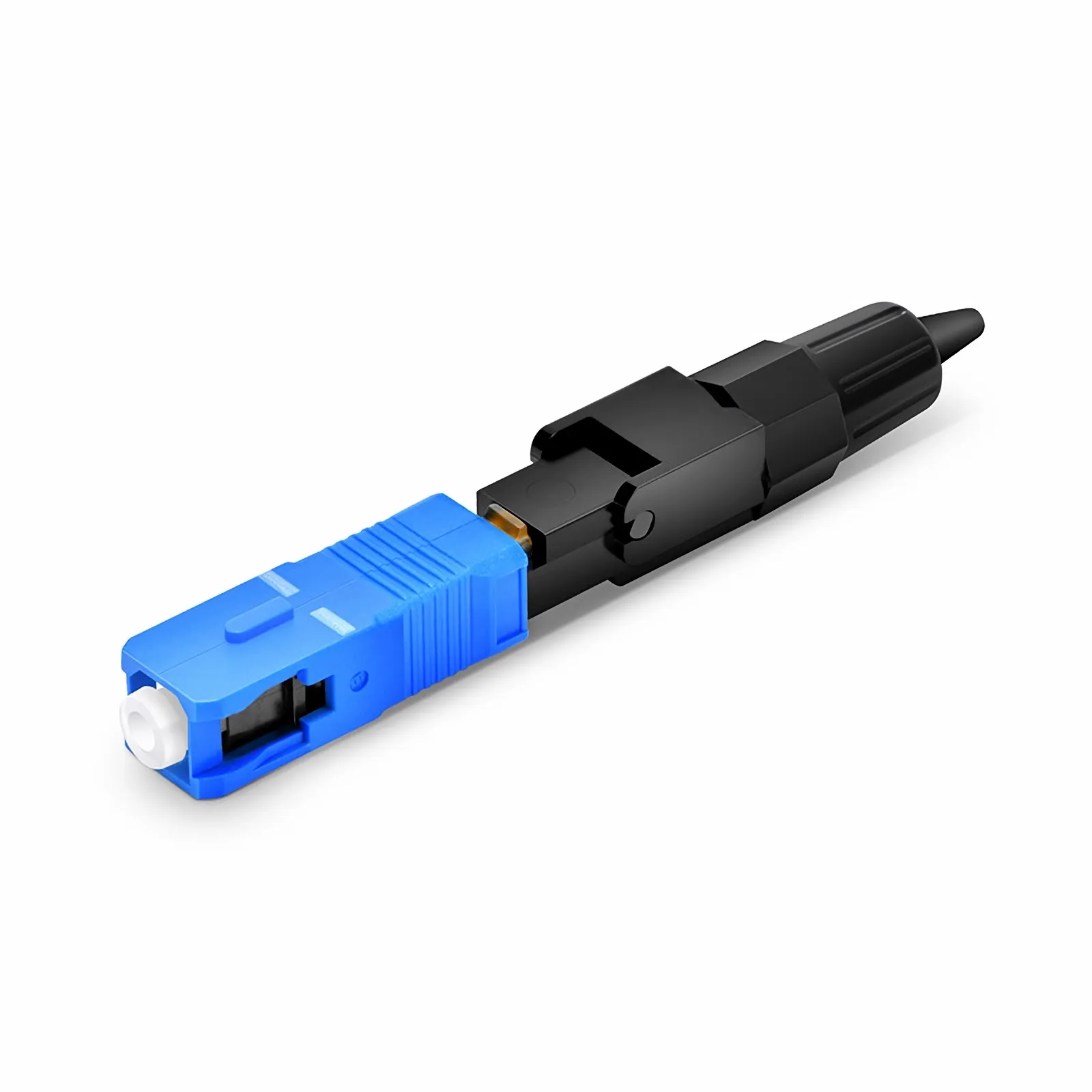

SC/UPC Single Mode 0.9/2.0/3.0mm Pre-polished Ferrule Field Assembly Connector Fast/Quick Connector

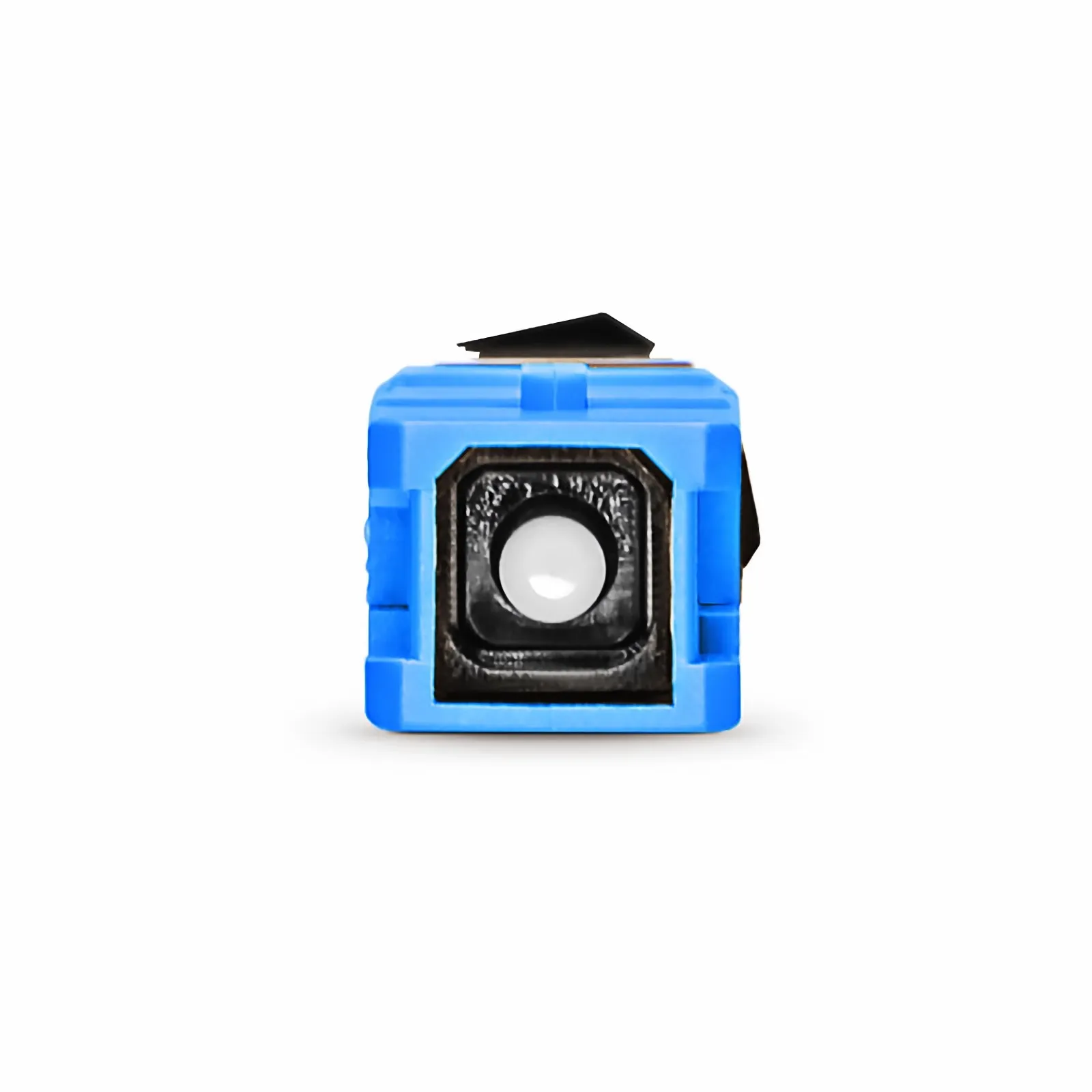

SC/UPC Single Mode 0.9/2.0/3.0mm Pre-polished Ferrule Field Assembly Connector Fast/Quick Connector - Image 2
SC/UPC Single Mode 0.9/2.0/3.0mm Pre-polished Ferrule Field Assembly Connector Fast/Quick Connector - Image 3

SC/UPC Single Mode 0.9/2.0/3.0mm Pre-polished Ferrule Field Assembly Connector Fast/Quick Connector

×

Bulk Quote：



SC/UPC Single Mode 0.9/2.0/3.0mm Pre-polished Ferrule Field Assembly Connector Fast/Quick Connector



    The SC/UPC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field.

    $4.32
    • Use high-quality raw materials
    • Fast delivery by default DHL or Fedex
    • 60-day worry-free return and exchange
    • Professional customer service

    Connector Type
    SC
    Polishing
    UPC
    Ferrule
    Ceramic
    Fiber Mode
    9/125μm Singlemode
    Cable Diameters
    0.9/2.0/3.0mm
    Dimension
    50mm
    Insertion Loss
    ≤0.35dB
    Return Loss
    ≥45dB
    Tension Test
    900µm 10N, 2.0mm 20N
    3.0mm 50N
    Temperature
    Storage -40 to 85°C
    Operating -40 to 85°C
