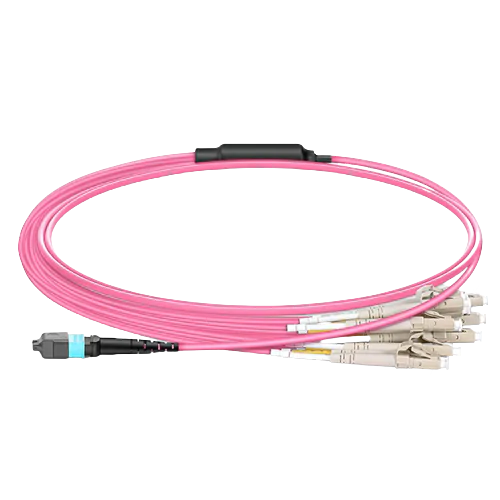

Name: Multimode (OM4) Harness Cable, Type B, LSZH, Magenta
SKU: 7407
Availability: InStock

Specifications

Fiber Grade

Bend Insensitive

Polish Type

APC to UPC

Polarity

Type B

Fiber Mode

OM4 50/125μm

Fiber Count

16F to 8x2F

Wavelength

850/1300nm

Cable Jacket/Flame Rating

LSZH/OFNR

Insertion Loss

≤0.35dB(MTP) ≤0.25dB(LC)

Return Loss

≥35dB(MTP) ≥30dB(LC)

Attenuation at 850 nm

≤2.3 dB/km(MTP) ≤3.5 dB/km(LC)

Attenuation at 1300 nm

≤1.0dB/km(MTP) ≤1.5dB/km(LC)

Min. Bend Radius(Fiber Core)

7.5mm

Min. Bend Radius(Fiber Cable)

20/10D (Dynamic/Static)

Cable Diameter

3.0mm(Cable OD) 2.0mm(Breakout OD)

Tensile Strength

80/150N (Long/Short Term)

Connector Durability

≥ 500 – 1000 times

Operating Temperature

-20~70°C

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. Cablefam adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: 3D Interferometer Test

: End-Face Inspection

: Insertion Loss and Return Loss Testing

Quality Assurance

Excellent quality is the foundation of Cablefam’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
