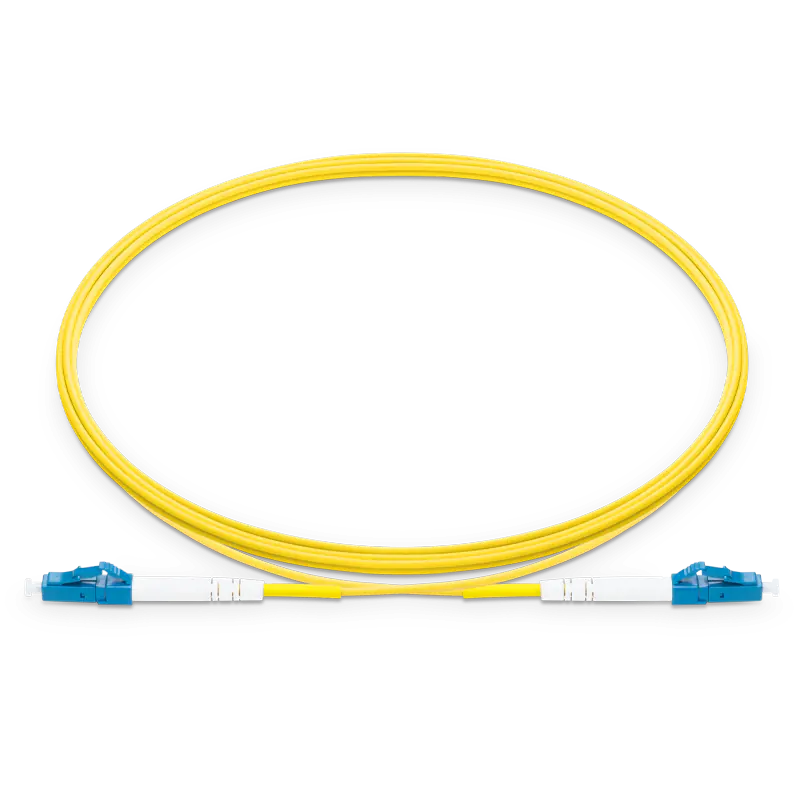

LC UPC to LC UPC Simplex OS2 Single Mode LSZH 2.0mm G.657.A2 Fiber Optic Patch Cable

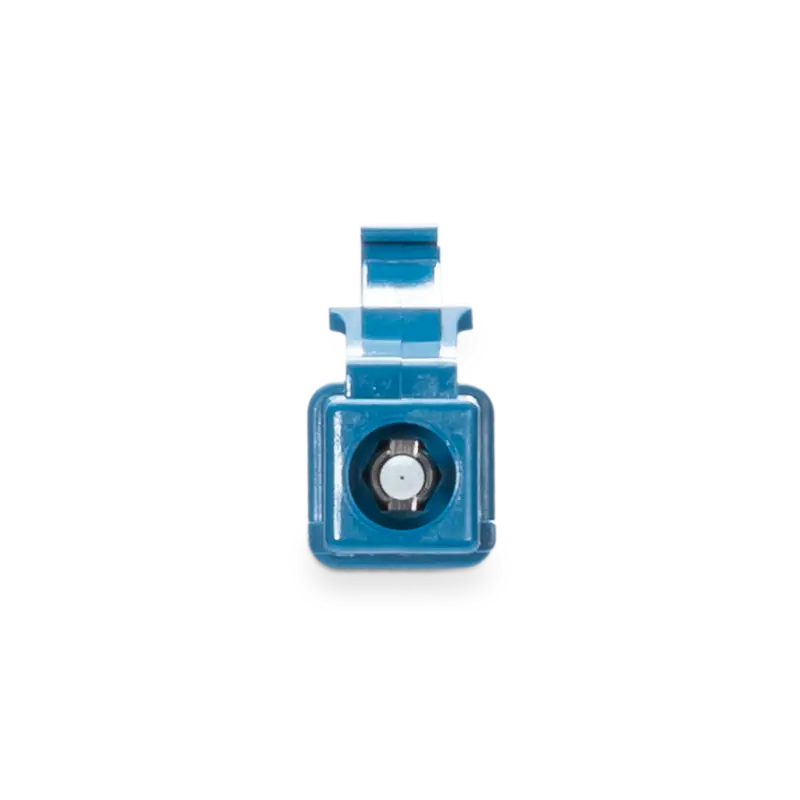

LC UPC to LC UPC Simplex OS2 Single Mode LSZH 2.0mm G.657.A2 Fiber Optic Patch Cable - Image 2

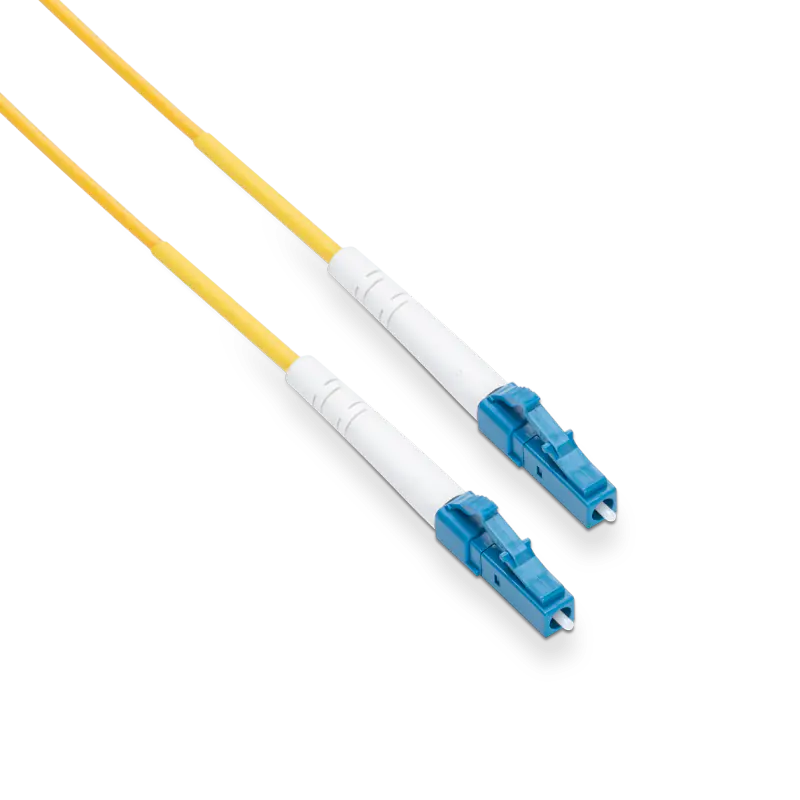

LC UPC to LC UPC Simplex OS2 Single Mode LSZH 2.0mm G.657.A2 Fiber Optic Patch Cable - Image 3

LC UPC to LC UPC Simplex OS2 Single Mode LSZH 2.0mm G.657.A2 Fiber Optic Patch Cable

Specifications Connector Type LC UPC to LC UPC Fiber Grade G.657.A/G.652.D Fiber Mode OS2 9/125μm Wavelength 1310/1550nm Insertion Loss ≤0.3dB Return Loss ≥50dB Min. Bend Radius(Fiber Core) 7.5mm Min. Bend Radius(Fiber Cable) 10/5D (Dynamic/Static) Attenuation at 1310 nm 0.4 dB/km Attenuation at 1550 nm 0.25 dB/km Fiber Count Simplex Cable Diameter 2.0mm Cable Jacket LSZH/OFNR […]

Price range: $3.30 through $7.60
  • Use high-quality raw materials
  • Fast delivery by default DHL or Fedex
  • 60-day worry-free return and exchange
  • Professional customer service

Specifications

Connector Type
LC UPC to LC UPC
Fiber Grade
G.657.A/G.652.D
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Insertion Loss
≤0.3dB
Return Loss
≥50dB
Min. Bend Radius(Fiber Core)
7.5mm
Min. Bend Radius(Fiber Cable)
10/5D (Dynamic/Static)
Attenuation at 1310 nm
0.4 dB/km
Attenuation at 1550 nm
0.25 dB/km
Fiber Count
Simplex
Cable Diameter
2.0mm
Cable Jacket
LSZH/OFNR
Polarity
A (Tx) to B (Rx)
Operating Temperature
-20~70°C
Storage Temperature
-40~80°C
Compliance
TIA-604 (FOCIS)
