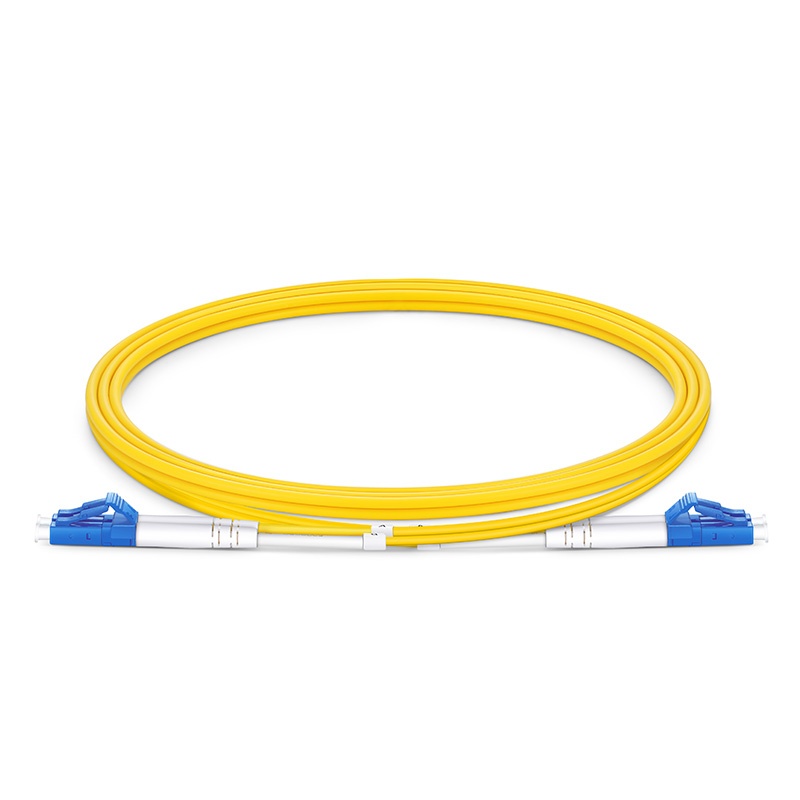

LC UPC to LC UPC Duplex OS2 Single Mode LSZH 2.0mm G.657.A2 Fiber Optic Patch Cable

LC UPC to LC UPC Duplex OS2 Single Mode LSZH 2.0mm G.657.A2 Fiber Optic Patch Cable

LC UPC to LC UPC Duplex OS2 Single Mode LSZH 2.0mm G.657.A2 Fiber Optic Patch Cable

Price range: $5.10 through $17.00
  • Use high-quality raw materials
  • Fast delivery by default DHL or Fedex
  • 60-day worry-free return and exchange
  • Professional customer service

Specifications

Connector Type
LC UPC to LC UPC
Fiber Grade
G.657.A/G.652.D
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Insertion Loss
≤0.3dB
Return Loss
≥60dB
Min. Bend Radius(Fiber Core)
10mm
Min. Bend Radius(Fiber Cable)
10/5D (Dynamic/Static)
Attenuation at 1310 nm
0.36 dB/km
Attenuation at 1550 nm
0.22 dB/km
Fiber Count
Duplex
Cable Diameter
2.0mm
Cable Jacket
LSZH/OFNR
Polarity
A (Tx) to B (Rx)
Operating Temperature
-20~70°C
Storage Temperature
-40~80°C
Compliance
TIA-617 (FOCIS)
