The Cat6 slim patch cable is the perfect solution for high-density racks in data centers and out-of-band management in AI networks. Its compact 28AWG design simplifies installation and management. Smaller patch lead size helps alleviate congestion as well as improve airflow with in the racks. Snagless boot prevents unwanted cable snags during installation and provides extra strain relief, which provides easy access in high-density applications. Tested and verified to meet Cat6 component requirements for ANSI/TIA-568.2-D and ISO/IEC 11801 standards. They reduce the patch cord density by 38% when compared to typical Cat6 patch cords. The smaller diameter makes for a slimmer, more flexible cable that is perfect for cross-connects, workstations, or racks with higher-density and limited space.
Cat6 28AWG Snagless Unshielded (U/UTP) CM/LSZH Small Diameter High-Flex Ethernet Network Patch Cable
The Cat6 slim patch cable is the perfect solution for high-density racks in data centers and out-of-band management in AI networks.
US $4.05
- Use high-quality raw materials
- Fast delivery by default DHL or Fedex
- 60-day worry-free return and exchange
- Professional customer service
Cat6 Snagless Unshielded (UTP) CM/LSZH Slim Ethernet Network Patch Cable, 28AWG, 1/10GBase-T
Specifications
Cable Type
Cat6 Snagless
Shielding Type
Unshielded (UTP)
Plug Housing Material
Polyester
Jacket Material
LSZH
Flammability Rating
Dual Rated (CM/LSZH)
Length
0.5m (Including Plugs)
Conductor Material
>99.95% Oxygen-free Copper
Conductor Type
Stranded
Data Rate Support
1000Base-T and Maximum to 10GBase-T
Maximum (Tested) Frequency
550MHz
Gauge (AWG)
28 (7/0.127mm)
Cable Outer Diameter (mm)
4.0 ± 0.3
PoE Compatibility
PoE/PoE+/PoE++
Connectors
RJ45 (Male)
Wire Scheme
T568B, Straight
Standard
ISO/IEC 11801, ANSI/TIA-568.2-D
Plug Type
8 Position
Support FSWireNet
No
Operating Temperature
-40 to +85°C (-40 to 185°F)
Installation Temperature
-10 to +50°C (14 to 122°F)
Related products
10m Cat5e Non-booted Unshielded (U/UTP) PVC Ethernet Network Patch Cable, Black
16 Fibers (OS2) Patch Cable, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB
2m Cat5e Snagless Unshielded(U/UTP)LSZH Ethernet Network Patch Cable, Black

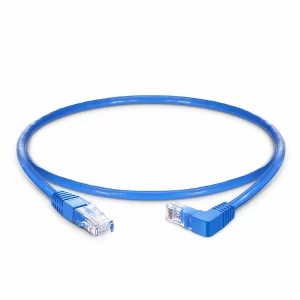

90 Degree Cat6 26AWG Snagless Unshielded (U/UTP) PVC CM Ethernet Network Patch Cable, RJ45 Right Angle Down Male to RJ45 Male

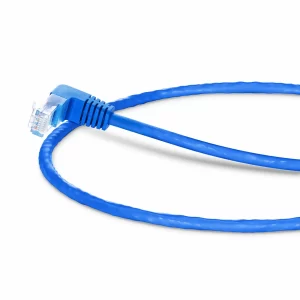

90 Degree Cat6 26AWG Snagless Unshielded (U/UTP) PVC CM Ethernet Network Patch Cable, RJ45 Right Angle UP Male to RJ45 Male
