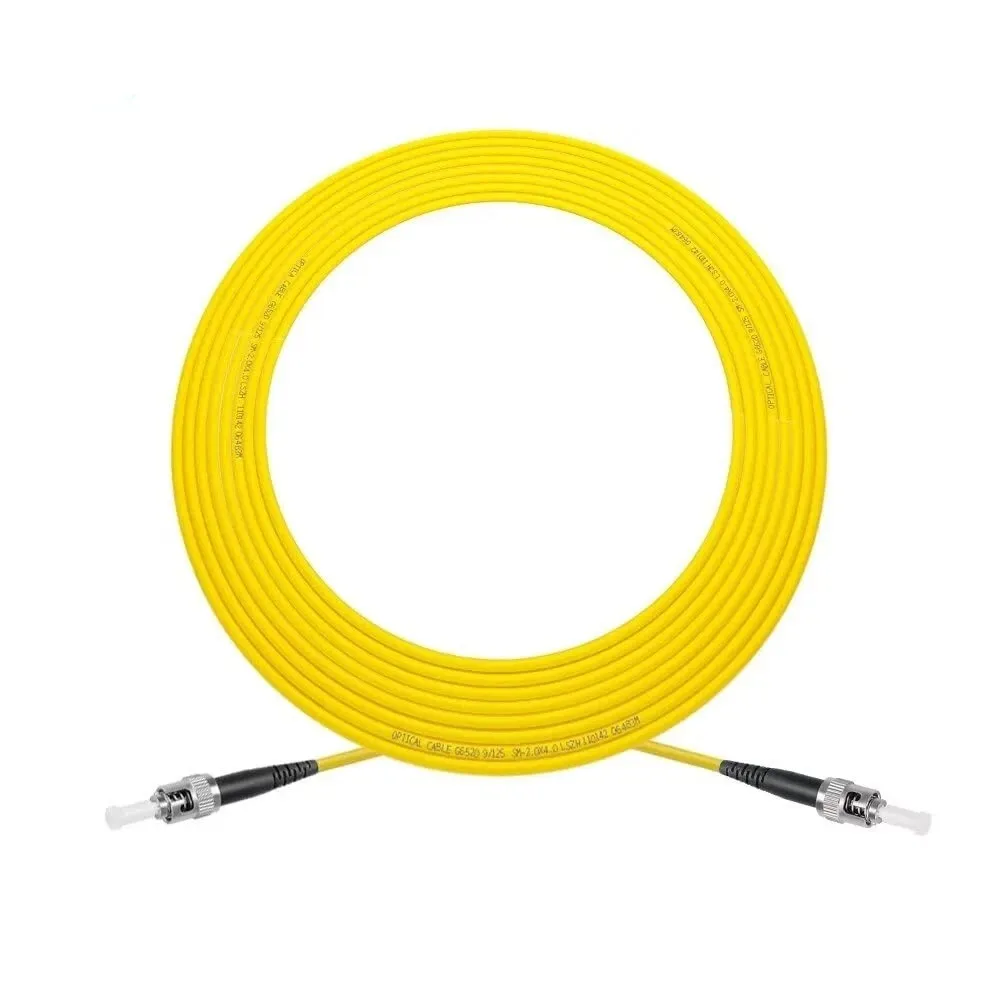

ST UPC to ST UPC OS2 Simplex Single-Mode Fiber Patch Cord, LSZH

ST UPC to ST UPC OS2 simplex single-mode fiber patch cord with an LSZH jacket, 1m–10m length options and ≤0.5 dB insertion loss.

Price range: $2.01 through $4.11
Length

ST UPC to ST UPC OS2 Simplex Patch Cord for Matching ST Fiber Ports

This ST UPC to ST UPC OS2 simplex single-mode fiber patch cord connects matching ST/UPC interfaces at both ends. Both endpoints use ST connectors with UPC polish, making it suitable for links where legacy or existing equipment requires ST/UPC at both endpoints. The working configuration uses OS2 9/125μm single-mode fiber, simplex construction, an LSZH jacket, 1m–10m lengths, and ≤0.5 dB insertion loss.

Connector AST UPCConnector BST UPC
Fiber TypeOS2 9/125μm Single ModeFiber StructureSimplex
Cable JacketLSZHAvailable Length1m – 10m
Insertion Loss≤0.5dBApplicationFTTH, Telecom Network

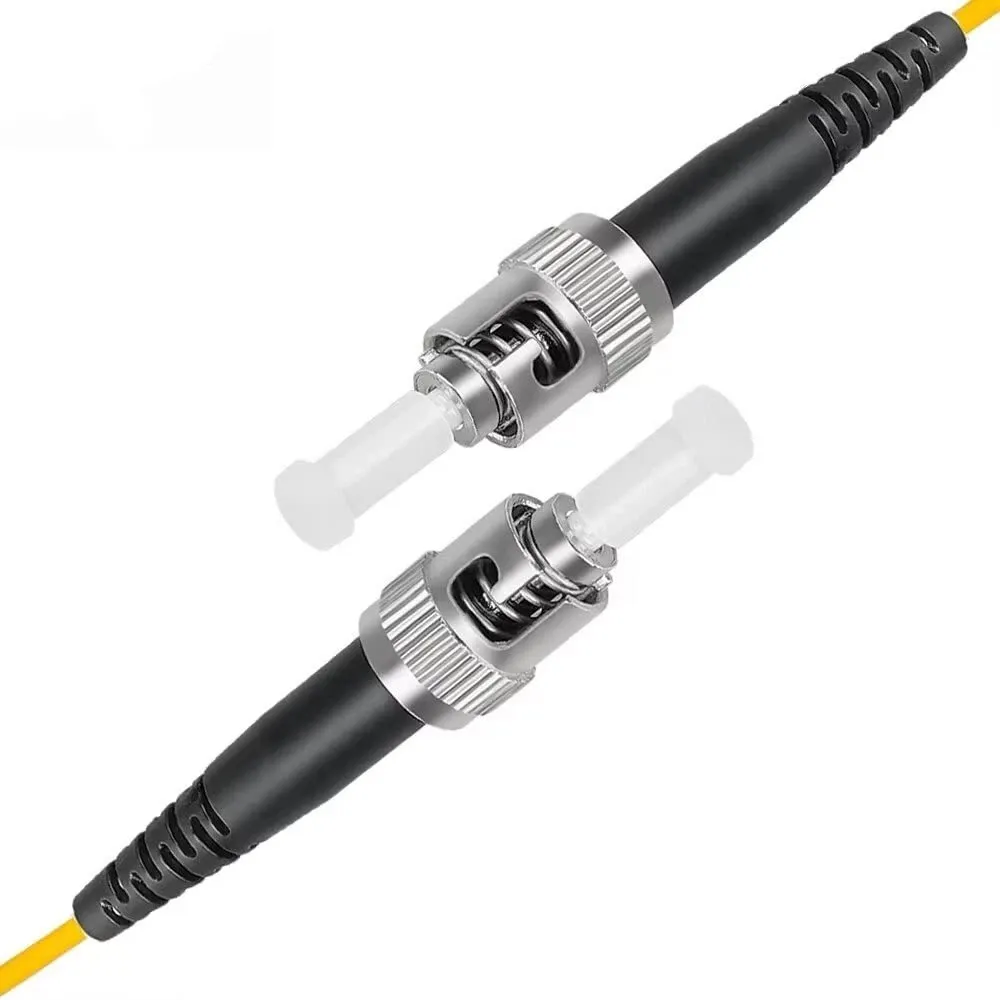

ST/UPC at Both Ends

Both endpoints use ST connectors with UPC polish. The bayonet-style ST interface is commonly encountered in legacy telecom, campus, monitoring and industrial fiber installations.

Same-Connector, Same-Polish Link

Because both ends use the same ST/UPC termination, there is no connector-specific A-to-B direction; the key requirement is matching ST/UPC interfaces at both endpoints.

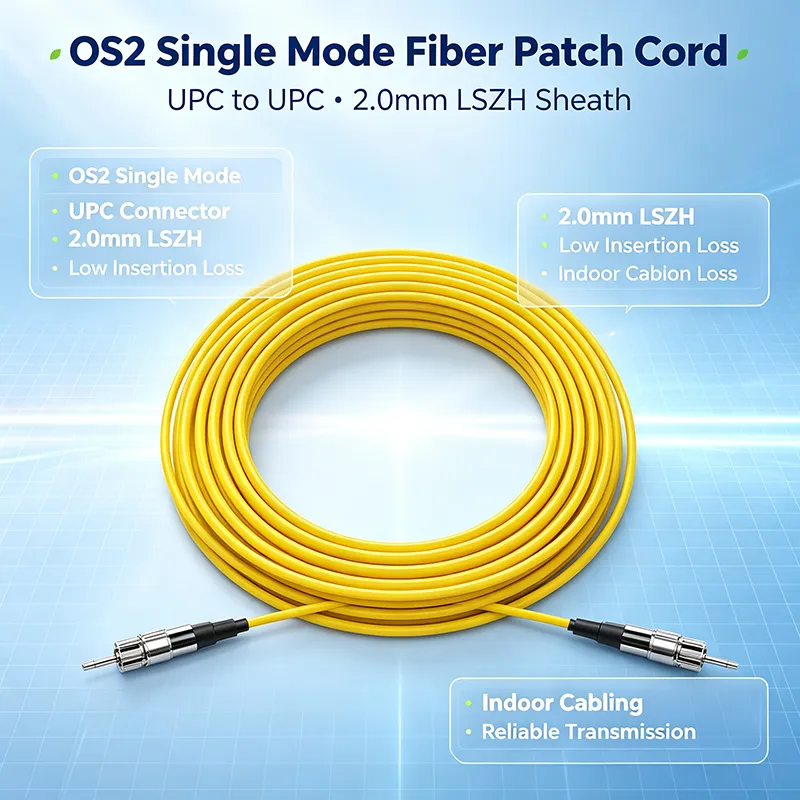

OS2 Simplex with LSZH Jacket

The working configuration uses OS2 9/125μm single-mode fiber, simplex construction, an LSZH jacket, 1m–10m lengths, and ≤0.5 dB insertion loss.

Fiber patch cord types
Fiber internal structure
Optical cable parameter sheet
OS2 singlemode simplex fiber patch cord structure diagram showing the 9/125μm fiber core, cladding, coating, aramid yarn and yellow LSZH jacket
OS2 singlemode simplex fiber patch cord with anti-stretch aramid yarn for tensile and bending resistance
OS2 singlemode simplex fiber patch cords connected in a rack-mounted fiber optic distribution application

Strict Optical Cable Performance Inspection

Network Fiber Patch Cord demand steady transmission performance and long service life.
We select high-standard single-mode fiber core, premium LSZH outer material
and mature production process to support stable optical transmission,
reliable connector performance and long-term network deployment.

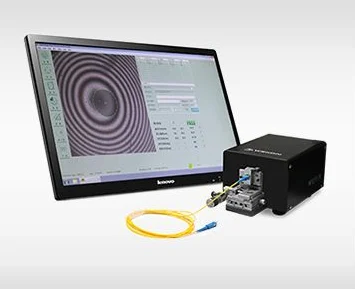

3D interferometer test for OS2 singlemode simplex fiber patch cord connector end-face geometry

3D Interferometer Test

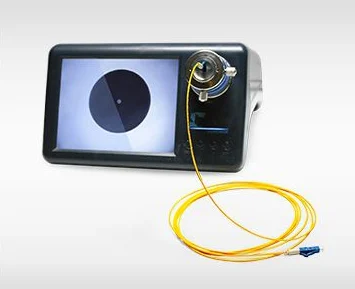

End-face inspection of an OS2 singlemode simplex fiber patch cord connector using a fiber inspection microscope

End-Face Inspection

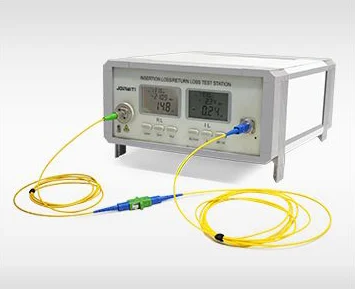

Insertion loss and return loss testing setup for an OS2 singlemode simplex fiber patch cord

Insertion Loss and Return Loss Testing

Strict Quality Control System

Consistent stable quality is our core competitiveness for fiber optic products.
Our technical team has extensive experience in fiber optic communication.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers,
quality control process and production technology,
and compliance with certification and safety standards.
At present, our products meet the industry standards
and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Quality Certification Supplier of fiber optic patch cables, cat5e/cat6/cat6a Ethernet cables, data transmission cables, audio/video cables, and power cords.

Our Advantages

Fast Shipment

Short Lead Time Fast Delivery

Professional Support

Professional Service Technical Support

Quality Guarantee

Worry-Free Guarantee Shopping Satisfactorily

High Quality Cable

Premium Quality High stability

FAQ

What connector types are on both ends of this fiber patch cable?

Both ends use ST/UPC connectors, so this is a same-interface patch cord for equipment or adapters that require ST/UPC at both endpoints. The ST connector uses a bayonet-style locking mechanism, while UPC describes the connector end-face polish.

What advantages does UPC polishing bring to ST fiber connectors?

UPC polishing provides a low-reflection single-mode connector end face for general optical links. On this cable, both ST connectors use UPC polish, so the connected ports or adapters should also be compatible with ST/UPC rather than APC-polished interfaces.

What does Simplex mean for this fiber patch cable?

Simplex means the patch cord contains one optical fiber. It describes the fiber count, not a fixed transmission direction or distance. This product combines simplex construction with OS2 9/125μm single-mode fiber and ST/UPC connectors at both ends.

Where is an ST/UPC to ST/UPC OS2 simplex patch cord commonly used?

ST connectors are commonly found in legacy campus networks, older telecom or monitoring systems, industrial fiber points and existing equipment that still uses the bayonet-lock ST interface. This cable is intended for those links when both endpoints require ST/UPC.

What should I check before ordering this ST/UPC to ST/UPC patch cord?

Confirm that both endpoints use ST/UPC, then select the required length within the listed 1m–10m range. The working configuration uses OS2 9/125μm single-mode fiber, simplex construction, an LSZH jacket and insertion loss of ≤0.5 dB.
