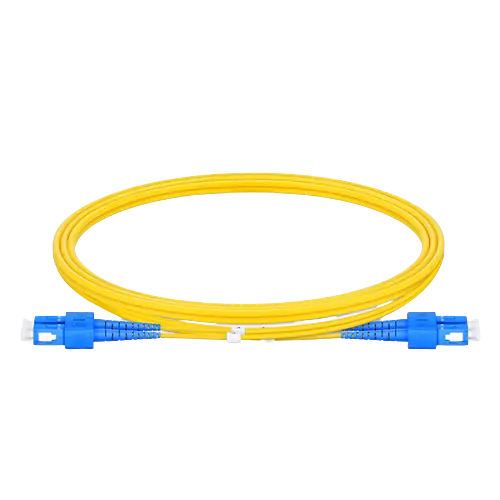

SC UPC to SC UPC Duplex LSZH 9/125 Single Mode 3.0mm Fiber Patch Cable

SC UPC to SC UPC Duplex LSZH 9/125 Single Mode 3.0mm Fiber Patch Cable

SC UPC to SC UPC Duplex LSZH 9/125 Single Mode 3.0mm Fiber Patch Cable

Price range: $3.70 through $14.10
  • Use high-quality raw materials
  • Fast delivery by default DHL or Fedex
  • 60-day worry-free return and exchange
  • Professional customer service

Specifications

Connector Type
SC UPC to SC UPC
Fiber Grade
G.657.A/G.652.D
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Insertion Loss
≤0.3dB
Return Loss
≥50dB
Min. Bend Radius(Fiber Core)
10mm
Min. Bend Radius(Fiber Cable)
10/5D (Dynamic/Static)
Attenuation at 1310 nm
0.36 dB/km
Attenuation at 1550 nm
0.22 dB/km
Fiber Count
Duplex
Cable Diameter
3.0mm
Cable Jacket
LSZH/OFNR
Polarity
A (Tx) to B (Rx)
Operating Temperature
-20~70°C
Storage Temperature
-40~80°C
Compliance
TIA-604 (FOCIS)
