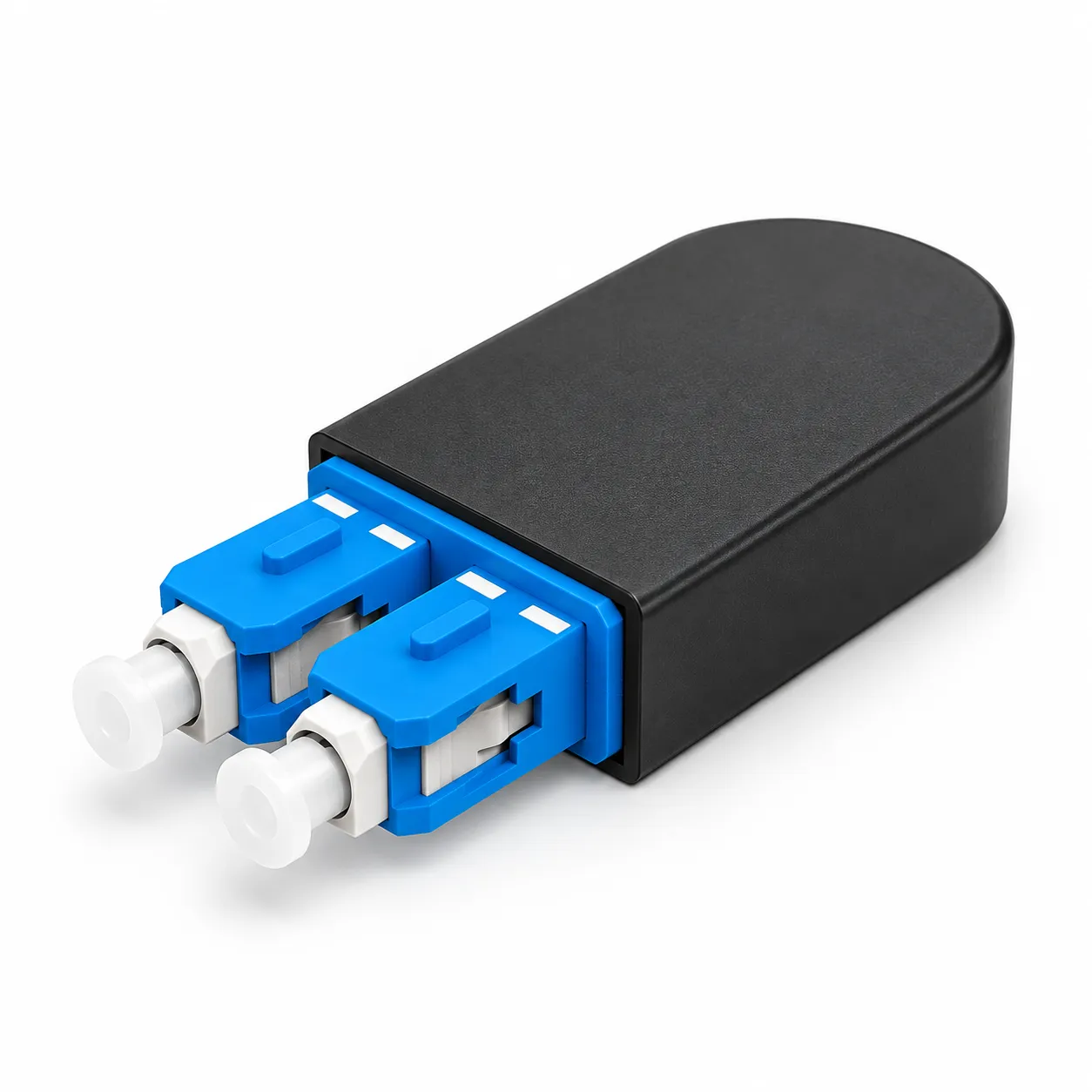

Angled view of SC UPC duplex singlemode fiber optic loopback with black housing and dual blue SC connectors on a white background

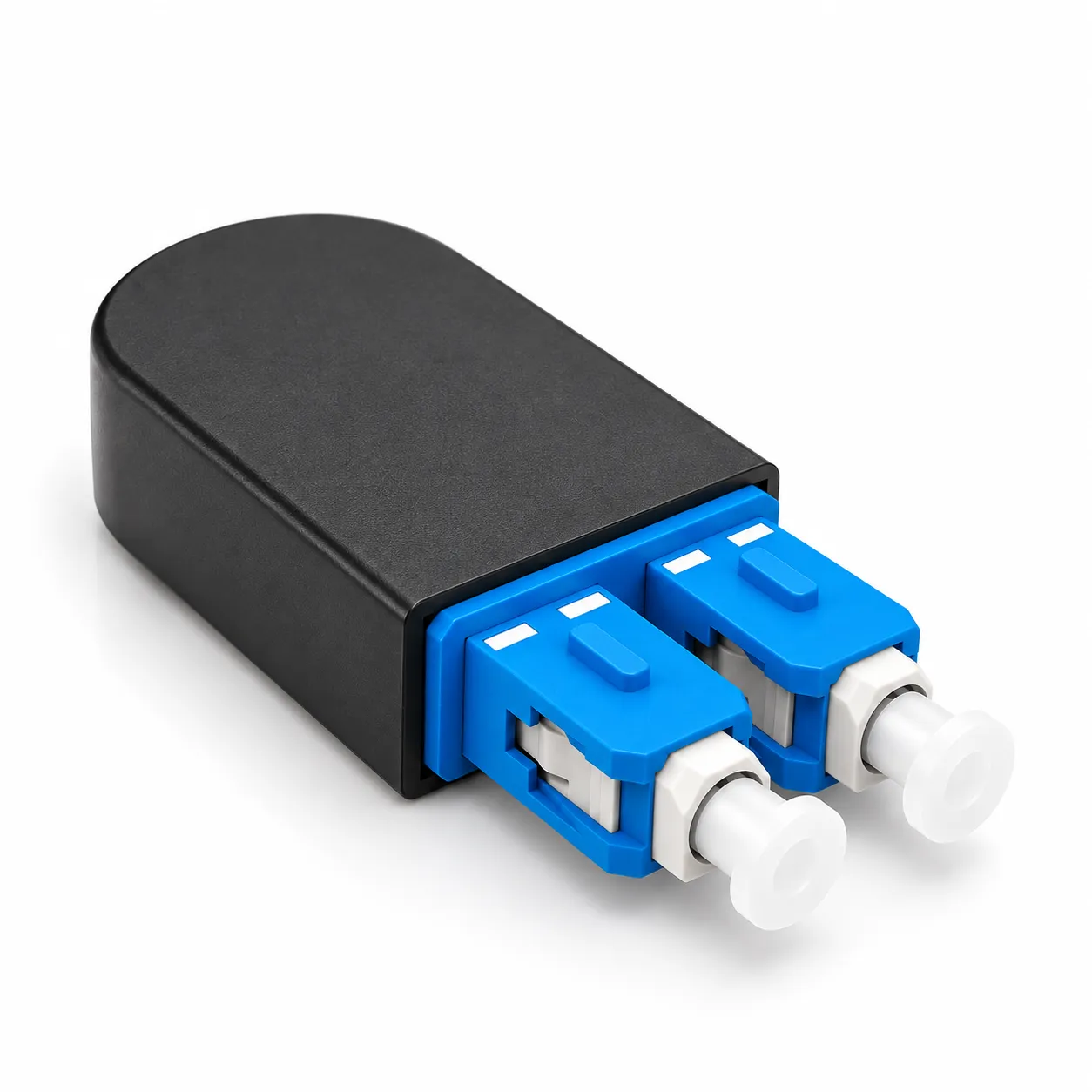

Angled view of SC UPC duplex singlemode fiber optic loopback with black housing and dual blue SC connectors on a white background

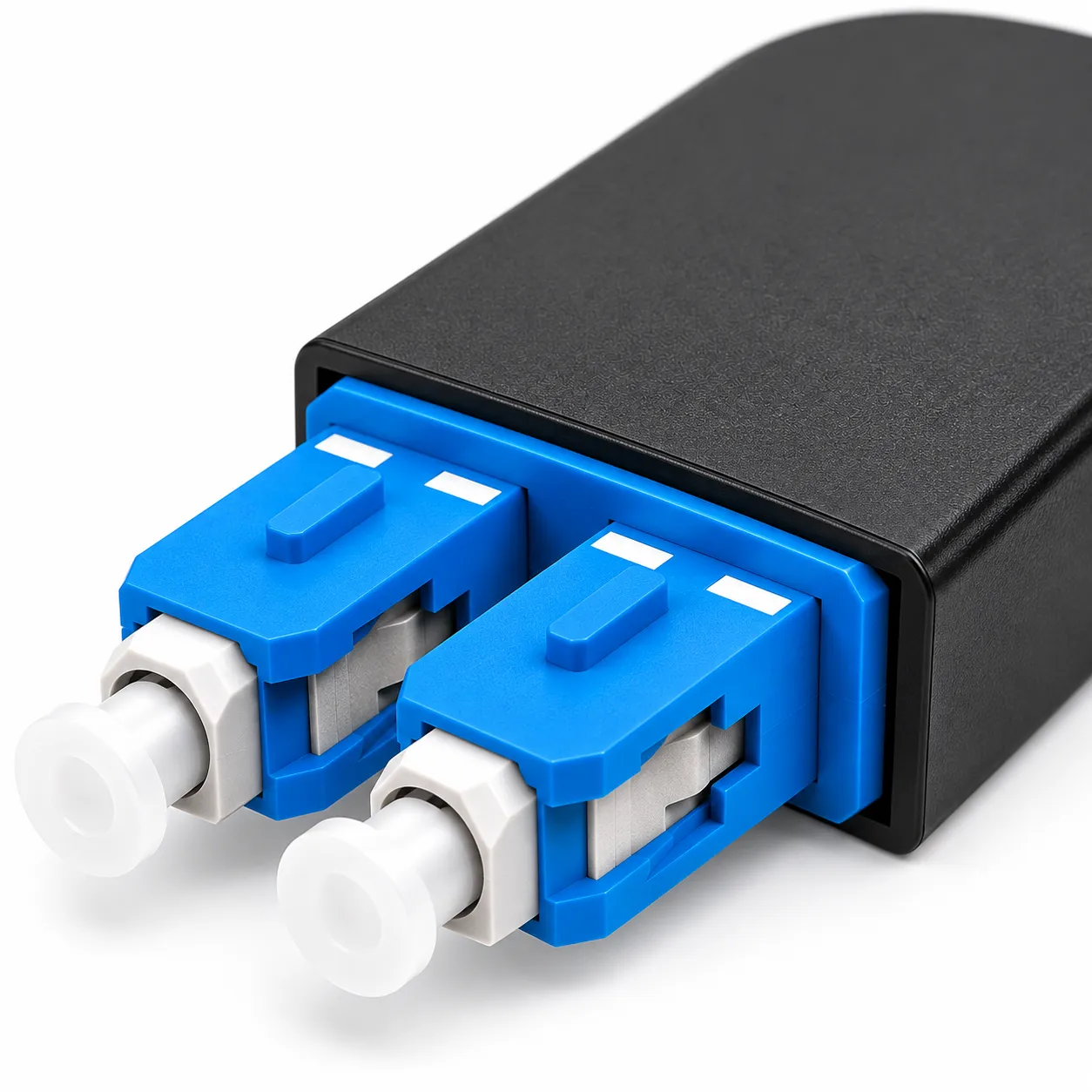

Close-up detail of dual blue SC UPC connectors on a duplex singlemode fiber optic loopback module
SC UPC duplex fiber optic loopback overview image showing connector type, singlemode OS2 fiber mode, black ABS housing, and optical port testing use
SC UPC fiber optic loopback used for optical port testing, diagnostics, and equipment verification in network hardware
  • Angled view of SC UPC duplex singlemode fiber optic loopback with black housing and dual blue SC connectors on a white background
  • Angled view of SC UPC duplex singlemode fiber optic loopback with black housing and dual blue SC connectors on a white background
  • Close-up detail of dual blue SC UPC connectors on a duplex singlemode fiber optic loopback module
  • SC UPC duplex fiber optic loopback overview image showing connector type, singlemode OS2 fiber mode, black ABS housing, and optical port testing use
  • SC UPC fiber optic loopback used for optical port testing, diagnostics, and equipment verification in network hardware
Angled view of SC UPC duplex singlemode fiber optic loopback with black housing and dual blue SC connectors on a white background Angled view of SC UPC duplex singlemode fiber optic loopback with black housing and dual blue SC connectors on a white background Close-up detail of dual blue SC UPC connectors on a duplex singlemode fiber optic loopback module SC UPC duplex fiber optic loopback overview image showing connector type, singlemode OS2 fiber mode, black ABS housing, and optical port testing use SC UPC fiber optic loopback used for optical port testing, diagnostics, and equipment verification in network hardware

SC UPC Fiber Optic Loopback Module, Duplex Singlemode

SC UPC Fiber Optic Loopback with duplex SC/UPC connectors and singlemode 9/125 µm fiber for optical port testing and diagnostics.

$3.97

SC UPC Fiber Optic Loopback for Singlemode Optical Port Testing

The SC UPC Fiber Optic Loopback is a compact duplex singlemode test accessory designed to route an optical transmit signal back to a receive interface. It combines two blue SC/UPC connectors in a protective black housing and is intended for compatible SC/UPC optical test ports.

Use this module during optical port checks, transceiver troubleshooting and equipment verification. The enclosed loopback keeps the return path compact, making it convenient for bench tests, network maintenance and fault-isolation work. Check the port interface and fiber mode before connecting the device; it is a passive loopback accessory, not a calibrated loss-measurement instrument.

This SC UPC Fiber Optic Loopback is supplied as a single, fixed SC/UPC configuration. The two connectors form one return-path assembly; they are not separate patch cords. Match it with singlemode optical hardware that uses SC/UPC ports, and do not mate the UPC polished interface directly with APC equipment.

Product TypeDuplex fiber optic loopback moduleConnector2 × SC/UPC male
Fiber ModeSinglemode, 9/125 µm (OS2-type)PolishUPC
Connector ColorBlueHousingBlack molded plastic
Optical PathTransmit-to-receive return loopInsertion Loss≤ 0.3 dB (working specification)
Return Loss≥ 50 dB (working specification)Typical UseSC/UPC port testing and diagnostics

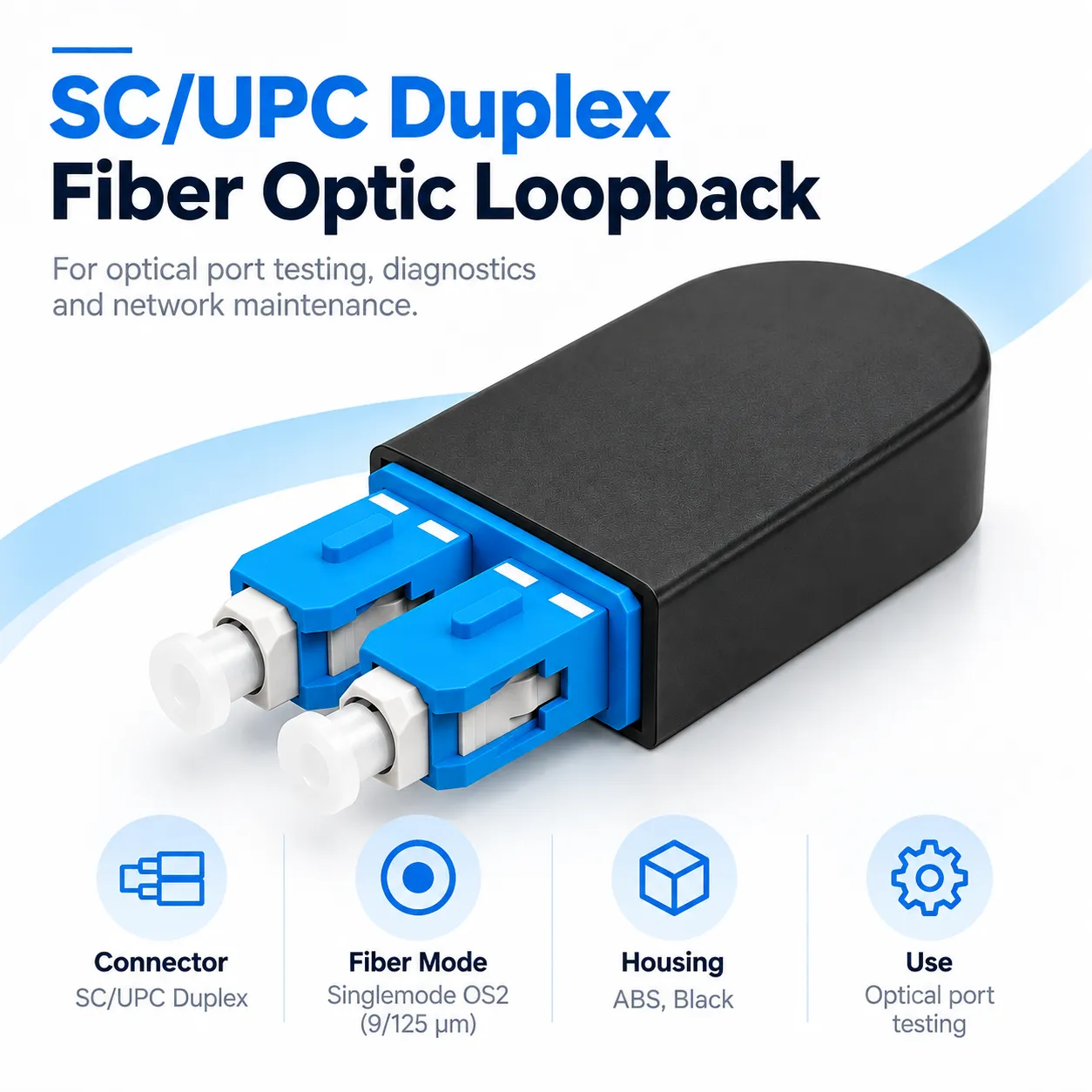

SC/UPC duplex singlemode fiber optic loopback overview with connector, housing and optical testing information

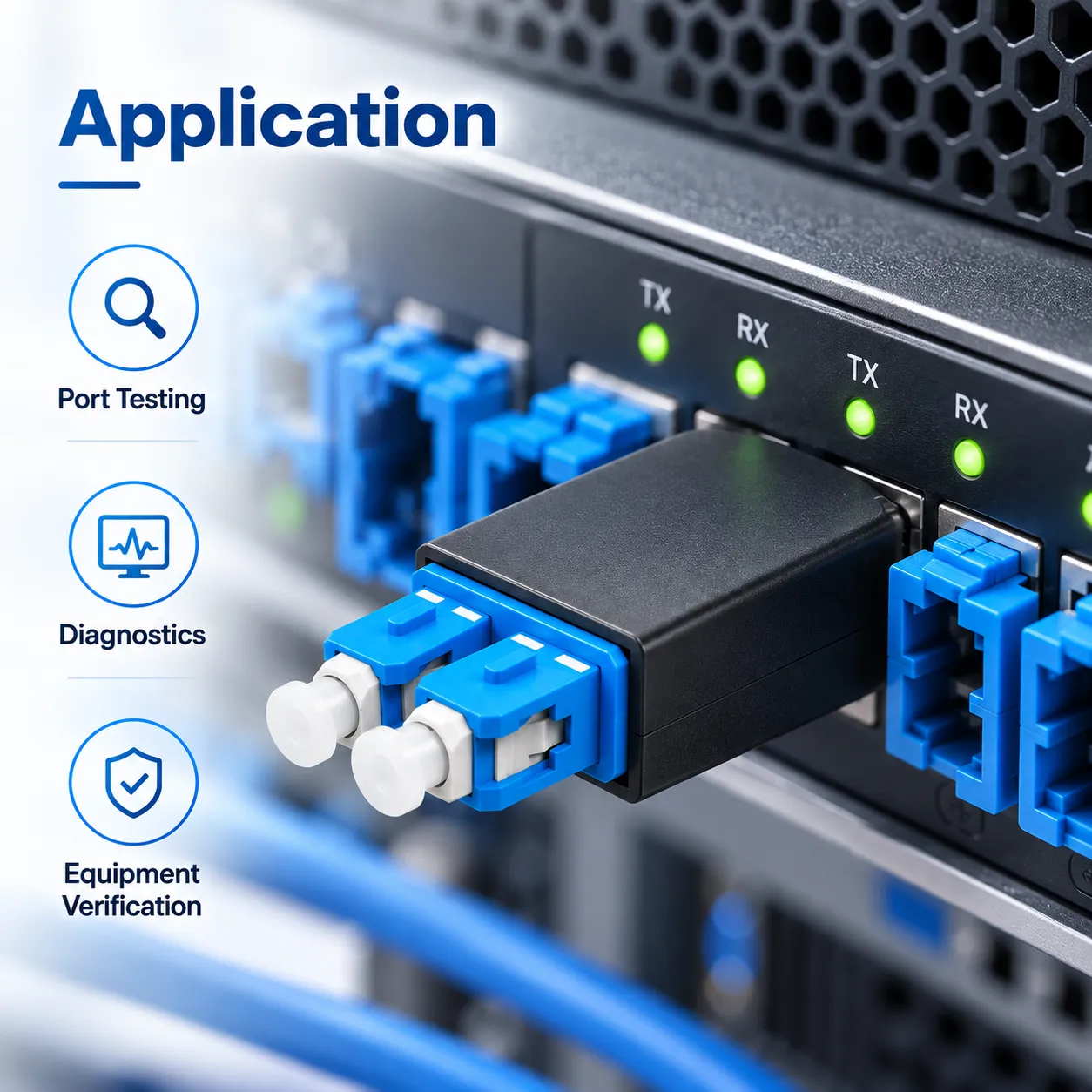

SC/UPC fiber optic loopback application illustration for optical port testing, equipment checks and diagnostics

How Fiber Optic Loopback Testing Works

A duplex loopback connects a device’s transmit and receive optical paths so that a signal can return to the originating test interface. Technicians use this principle to check port response and narrow down faults during maintenance or equipment validation. Testing behavior depends on the connected transceiver and equipment configuration.

Select a Compatible Loopback

Match the connector family, polish type and fiber mode to the optical port. SC and LC have different connector geometries; UPC and APC polishing are not interchangeable mating interfaces. Choose singlemode or multimode based on the test equipment rather than connector color alone.

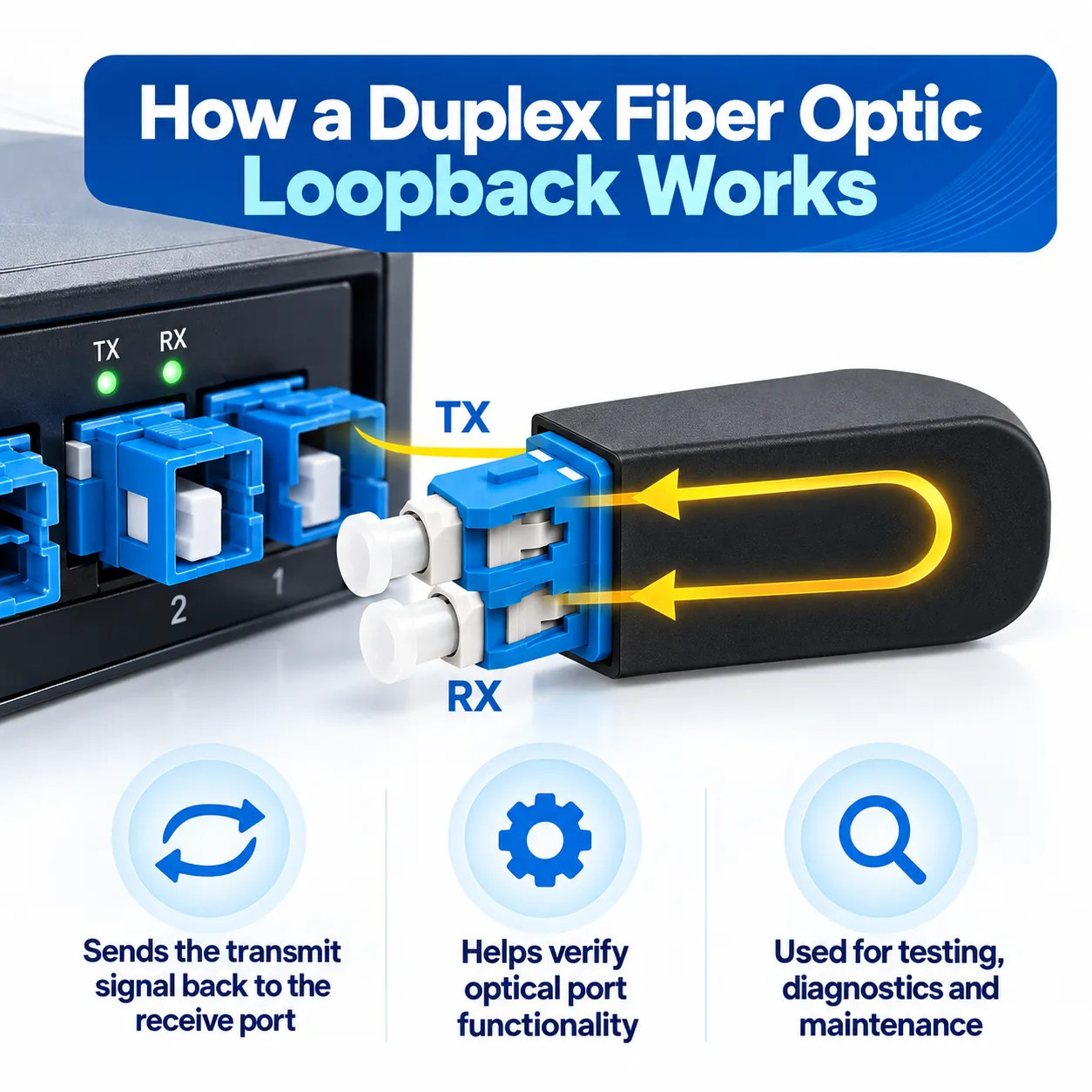

Duplex fiber optic loopback working principle showing how the transmit signal returns to the receive side for optical port testing

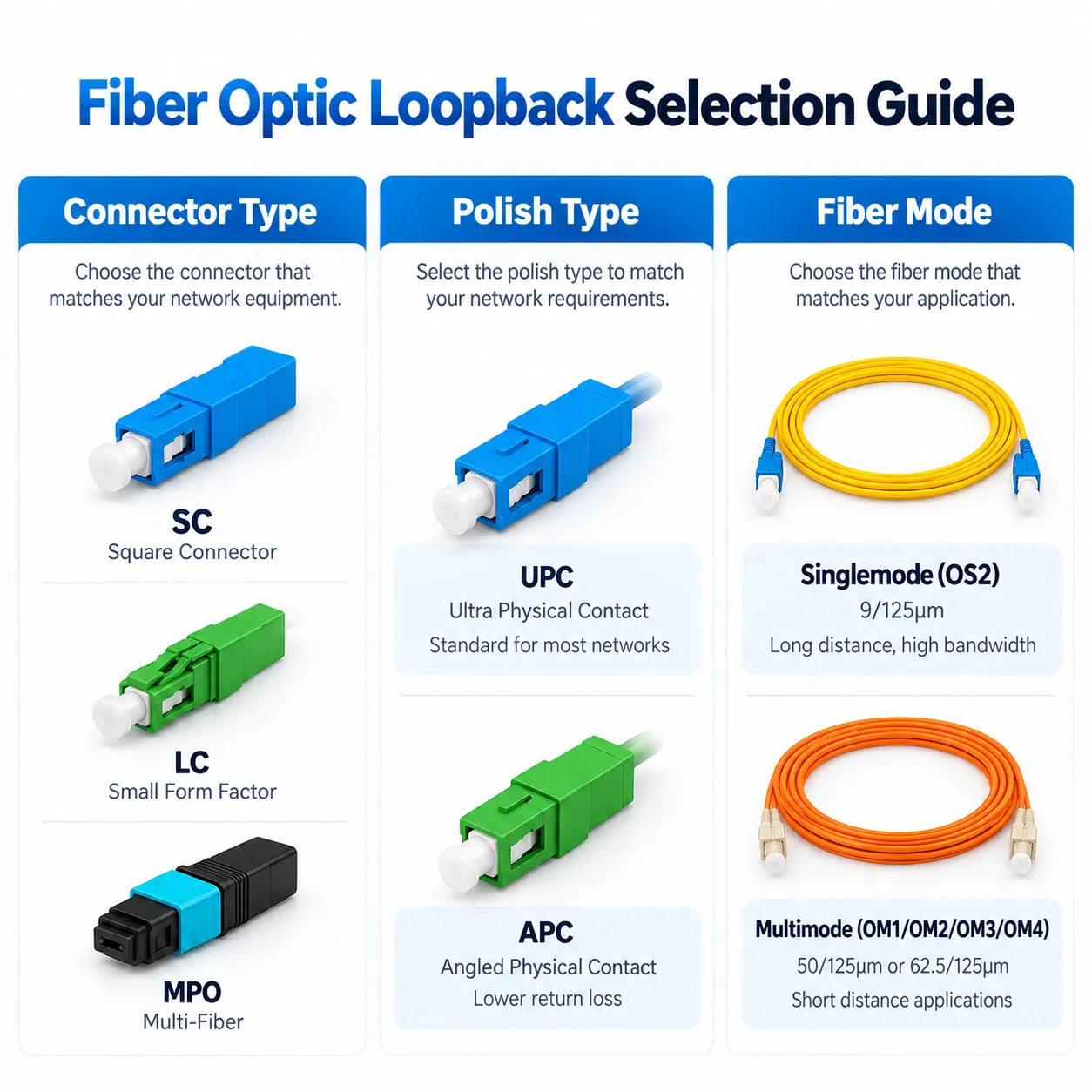

Fiber optic loopback selection guide comparing connector families, UPC and APC polish, and singlemode versus multimode fiber

Strict Quality Control System

Consistent stable quality is our core competitiveness for fiber optic products.
Our technical team has extensive experience in fiber optic communication.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers,
quality control process and production technology,
and compliance with certification and safety standards.
At present, our products meet the industry standards
and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
1649315365 62039 Supplier of fiber optic patch cables, cat5e/cat6/cat6a Ethernet cables, data transmission cables, audio/video cables, and power cords.

Our Advantages

Fast Shipment

Short Lead Time Fast Delivery

Professional Support

Professional Service Technical Support

Quality Guarantee

Worry-Free Guarantee Shopping Satisfactorily

High Quality Cable

Premium Quality High stability

FAQ

What is an SC/UPC fiber optic loopback used for?

It returns an optical transmit signal to a receive interface so technicians can perform port-level checks, troubleshoot optical equipment and isolate possible faults. It does not replace a calibrated test instrument.

Can this loopback be used with an SC/APC port?

No. This model uses blue SC/UPC connectors. UPC and APC end faces must not be directly mated; select an SC/APC loopback for an APC interface.

Is this module suitable for multimode optical ports?

This version is intended for singlemode SC/UPC interfaces. For multimode equipment, choose a loopback with the corresponding multimode fiber and connector configuration.

Do both SC connectors need to match the equipment interface?

Yes. The two connectors form a single duplex loopback assembly. Verify that the equipment presents the compatible SC/UPC transmit and receive positions before use.

Does a loopback prove that an entire fiber link meets its optical loss budget?

No. It supports a return-path or port-function check. Measuring link insertion loss, optical power or full network performance requires the appropriate test equipment and procedure.
