SC Duplex Fiber Optic Adapter Female to Female, 10Pcs for ODF Patch Panels

SC Duplex Fiber Optic Adapter for Two-Channel SC Patching

This SC Duplex Fiber Optic Adapter provides two side-by-side female-to-female SC mating channels in one housing. It is intended for joining corresponding SC connector pairs across a duplex position in an optical distribution frame (ODF), patch panel or compatible enclosure.

The listing is supplied in packs of 10 and identifies single-mode and multimode applications. Duplex refers to two separate fiber connections, not a device that splits one optical signal into two. Confirm the actual connector polish, fiber system and panel opening when selecting the adapter.

Two SC Connections in One Duplex Position

The duplex body groups two independent SC couplings in a common layout. In a panel that accepts SC duplex adapter fittings, this can make paired connections easier to organize than two separate simplex openings. It does not define a transmit or receive direction; that is determined by the connected fibers and equipment.

Choosing the Correct SC Mating Interface

An SC adapter accepts SC connector plugs on opposite sides. Check whether the link uses UPC or APC end-face polishing and select compatible connectors and the matching adapter version. The product’s broad single-mode/multimode description does not mean a single link can freely combine dissimilar fiber types or polish systems.

ODF Installation and 10-Piece Supply

Before installing multiple units, compare the adapter housing, retaining features and orientation with the actual panel cutout. Keep unused connector ports protected from contamination and inspect the mating end faces before patching. A 10-piece pack supports repeated matching SC duplex positions or maintenance spares.

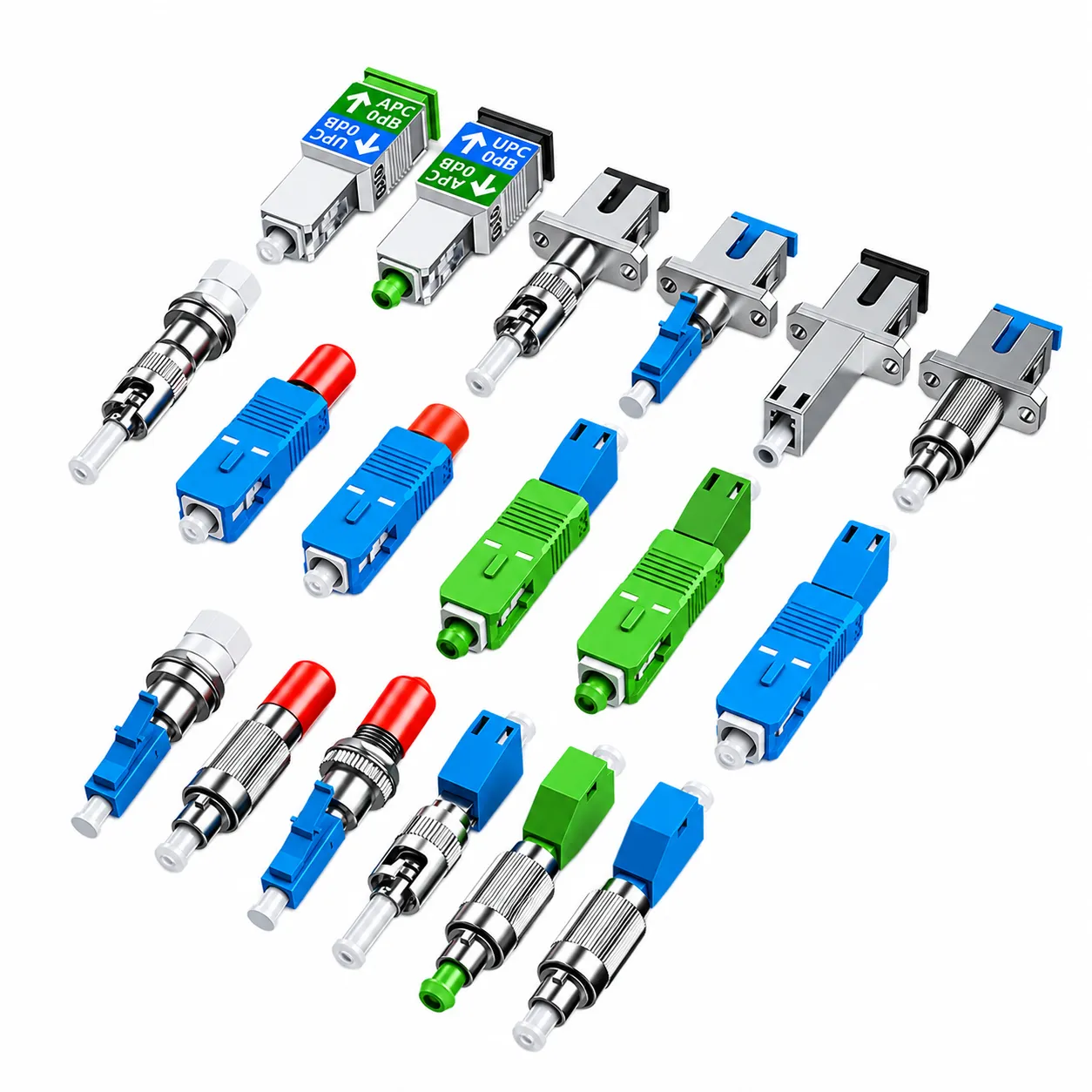

Fiber optic adapters provide a mating interface between compatible fiber connectors. The correct adapter depends on connector type, mating direction, fiber mode, polish compatibility and mounting requirements. Standard adapters join matching connector interfaces, while hybrid adapters connect different connector types. Check the product’s individual specifications before installation.
