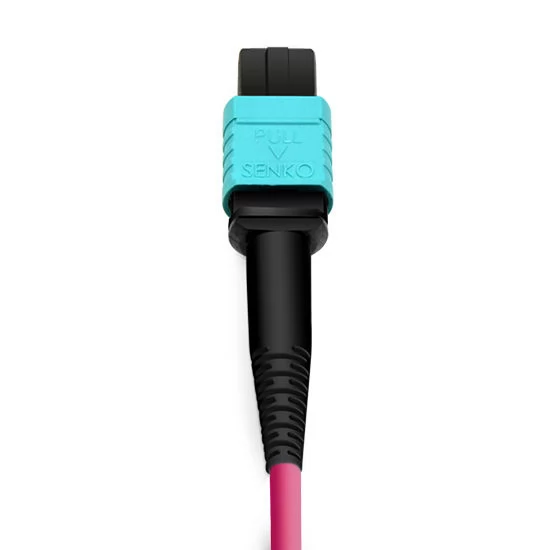

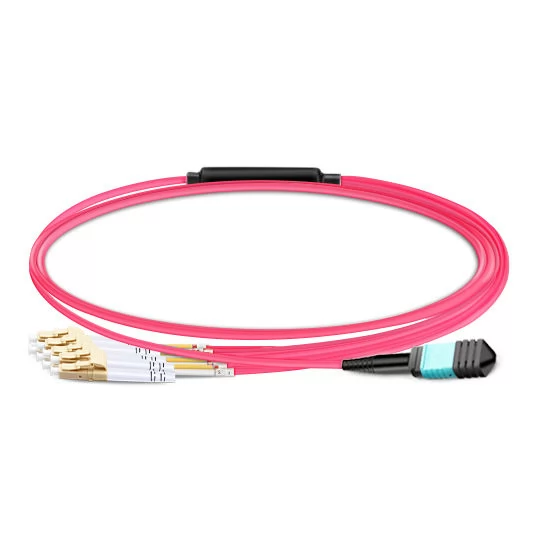

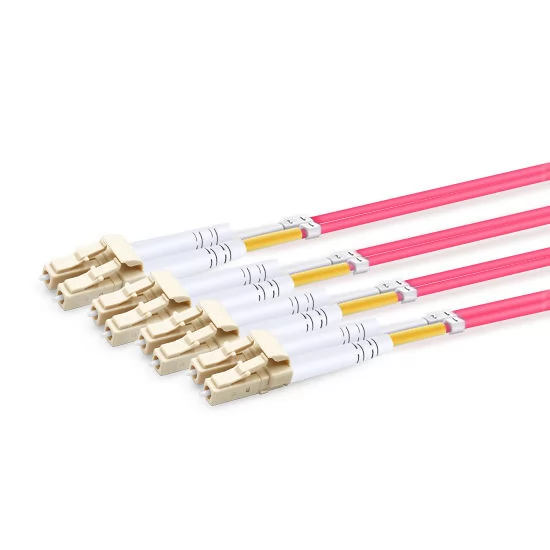

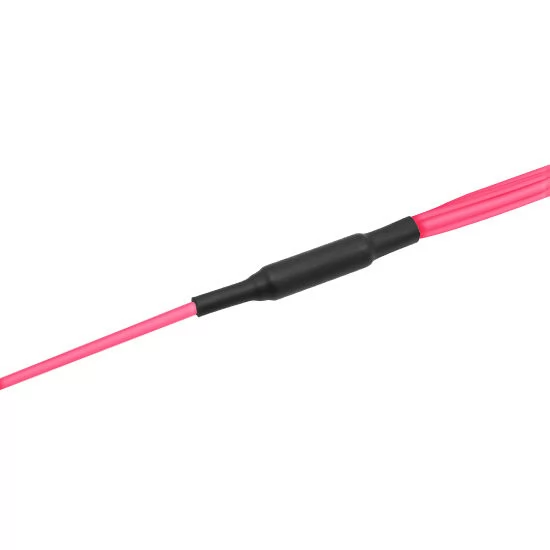

MPO UPC Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, LSZH, Aqua/Violet
MPO UPC Female to 4 LC UPC Duplex OM4
$18.53
- Use high-quality raw materials. Quality Control
- Fast delivery by DHL or Fedex. Shipping Policy
- 60-day return and exchange. Returns & Refunds
- Professional customer service. Services Center
Product Details
| Connector A | MPO UPC Female | Connector B | LC UPC Duplex |

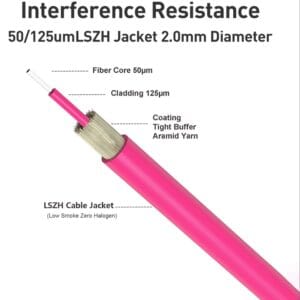

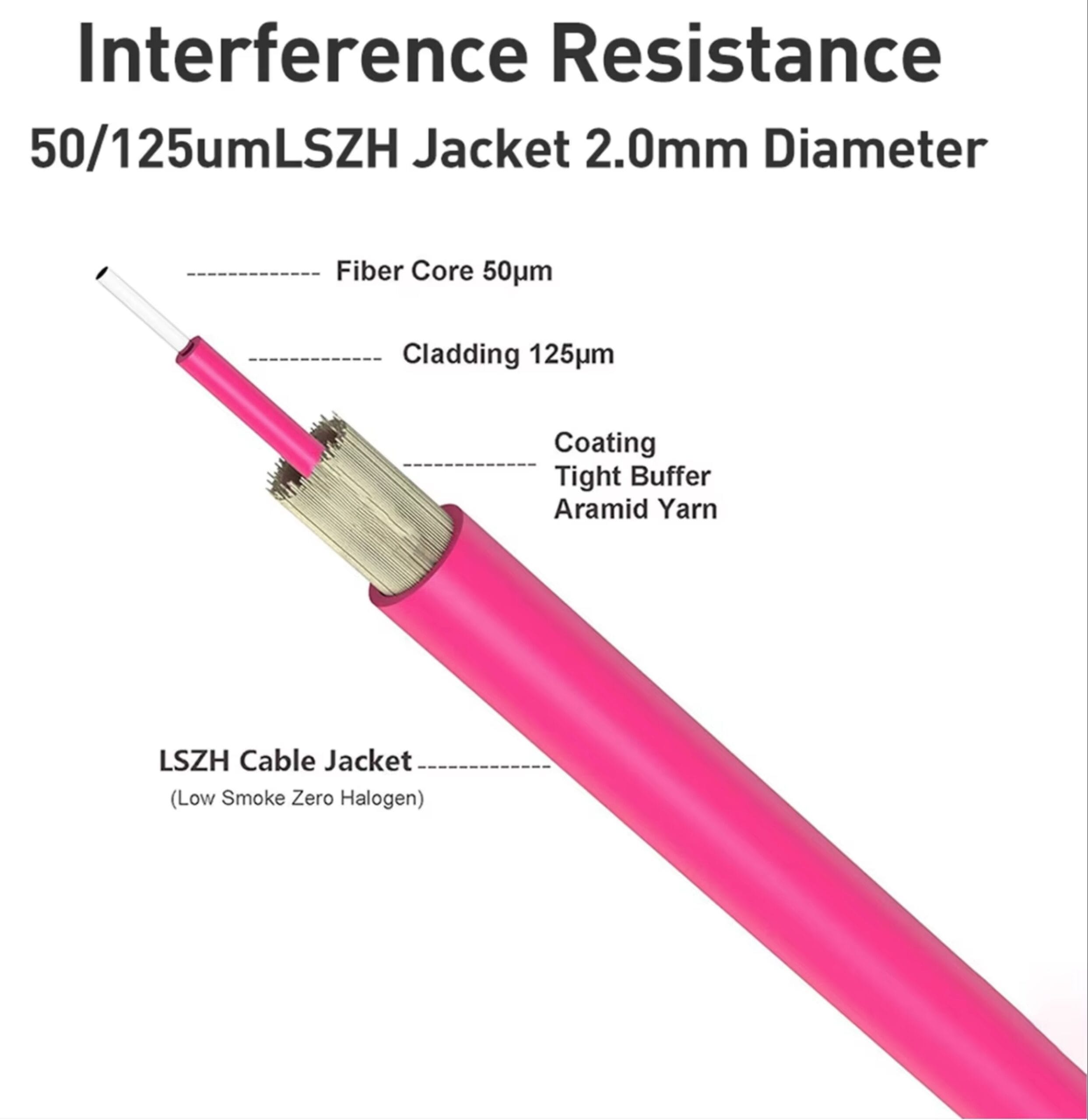

| Fiber Type | OM4 50/125μm Multimode | Wavelength | 850/1300nm |
| Fiber Count | 8 Fibers | Distance | 1m (3ft) |
| Glass Fiber | Corning ClearCurve® | Cable Jacket | LSZH |
| MPO Connector IL | 0.75dB Max (0.35dB Typ.) | LC Connector IL | ≤0.2dB |
| MPO Connector RL | ≥20dB | LC Connector RL | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km | Attenuation at 1300nm | ≤0.6 dB/km |
| Cable Diameter | 3.0mm | Fiber Color | Aqua/Violet |
| Fan-Out Diameter | 2.0mm | Minimum Bend Radius | 7.5mm |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
Rigorous Industrial Product Testing
Communication and networks products require high stability and reliability. Cablefam adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
- 3D Interferometer Test
- End-Face Inspection
- Insertion Loss and Return Loss Testing
Quality Assurance
Excellent quality is the foundation of Cablefam’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
- Short Lead Time
- Fast Delivery
- Professional Service
- Technical Support
- Worry-Free Guarantee
- Shopping Satisfactorily
- Premium Quality
- High stability
