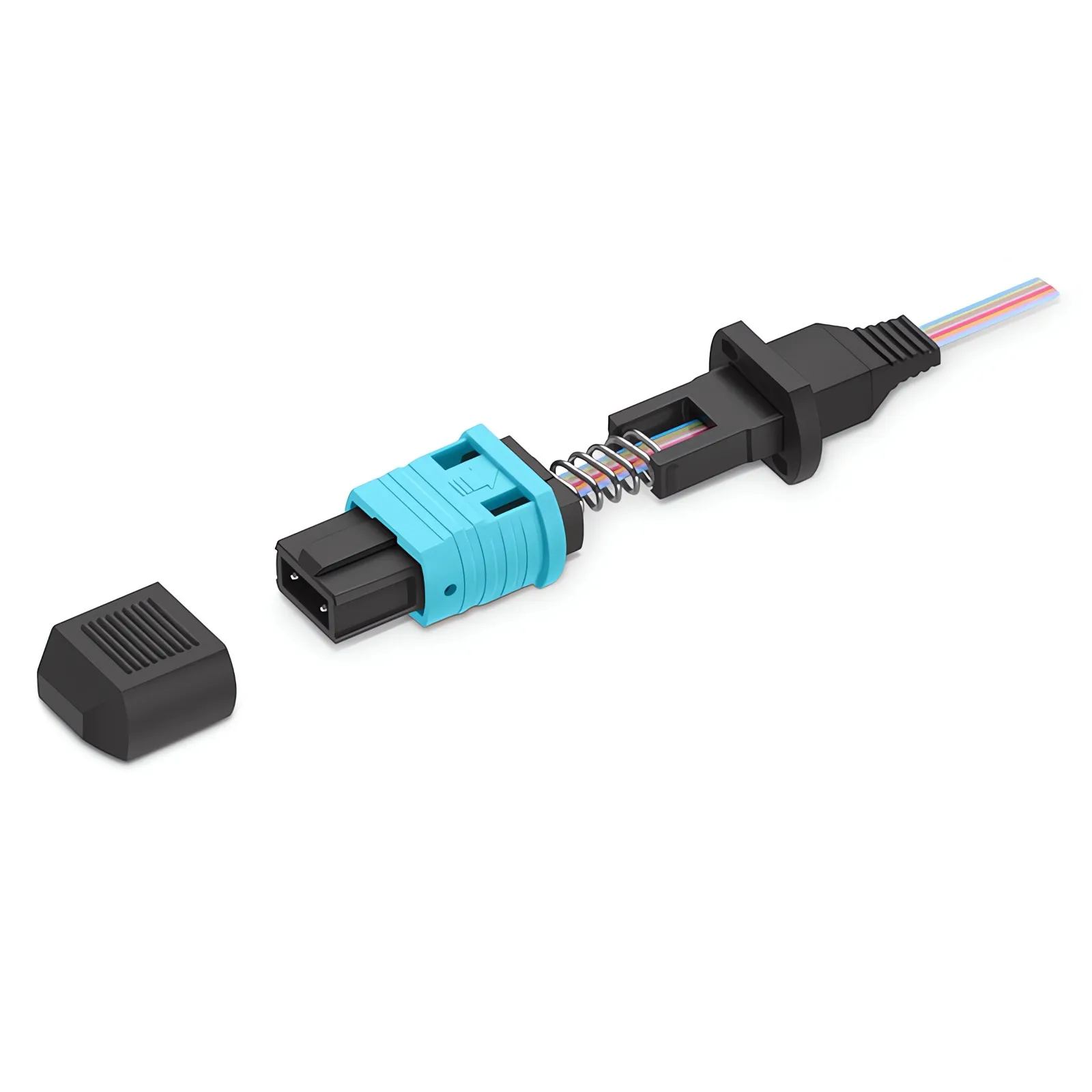

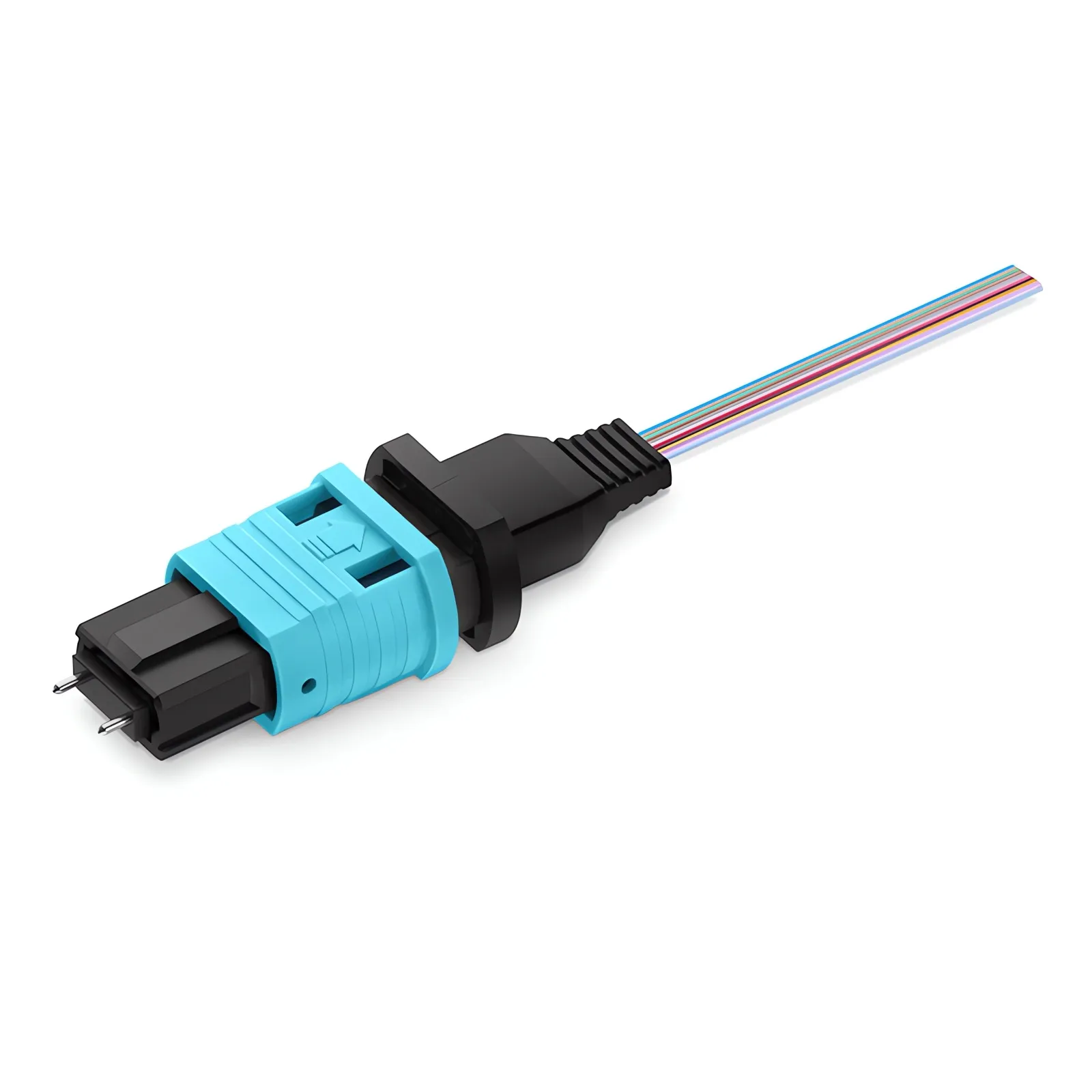

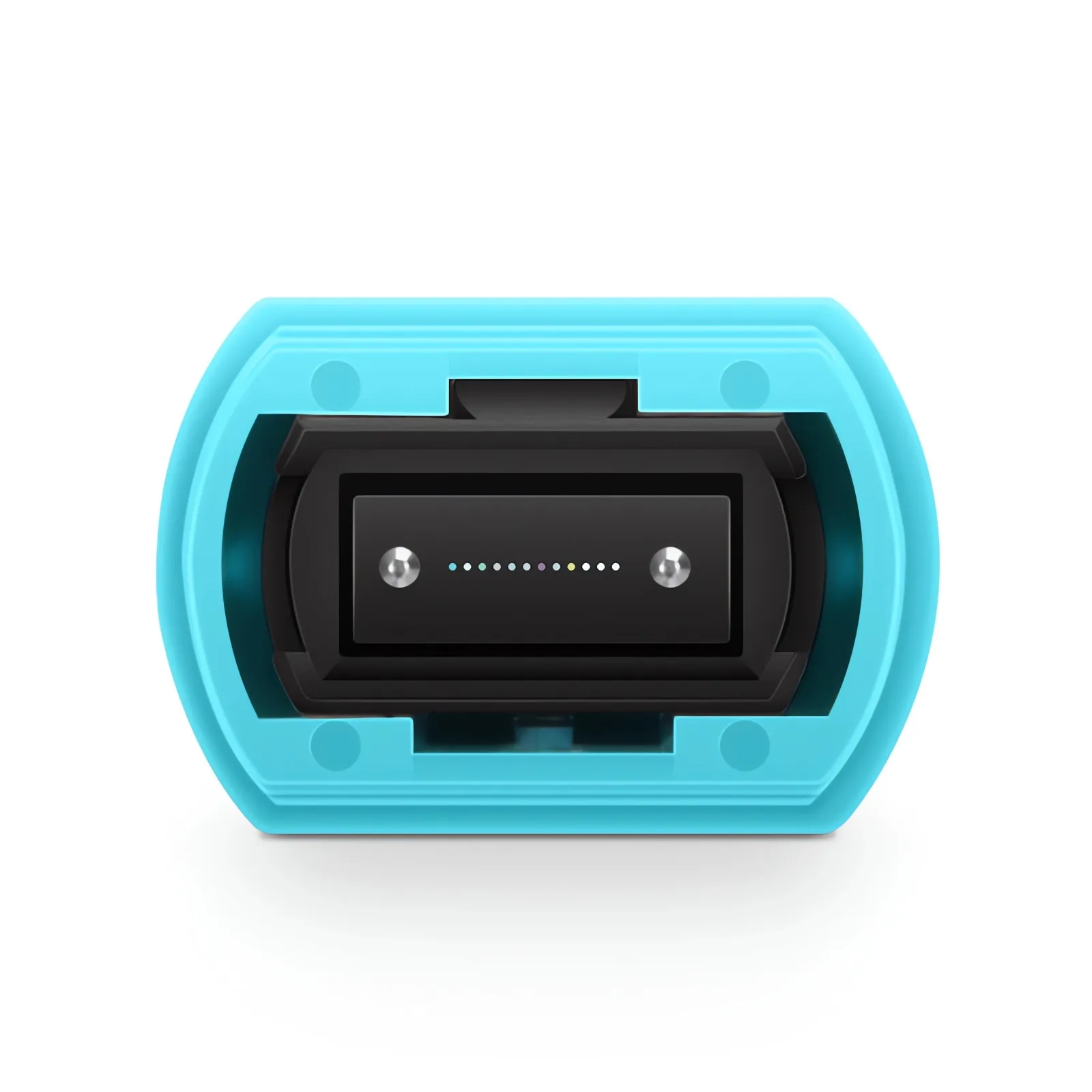

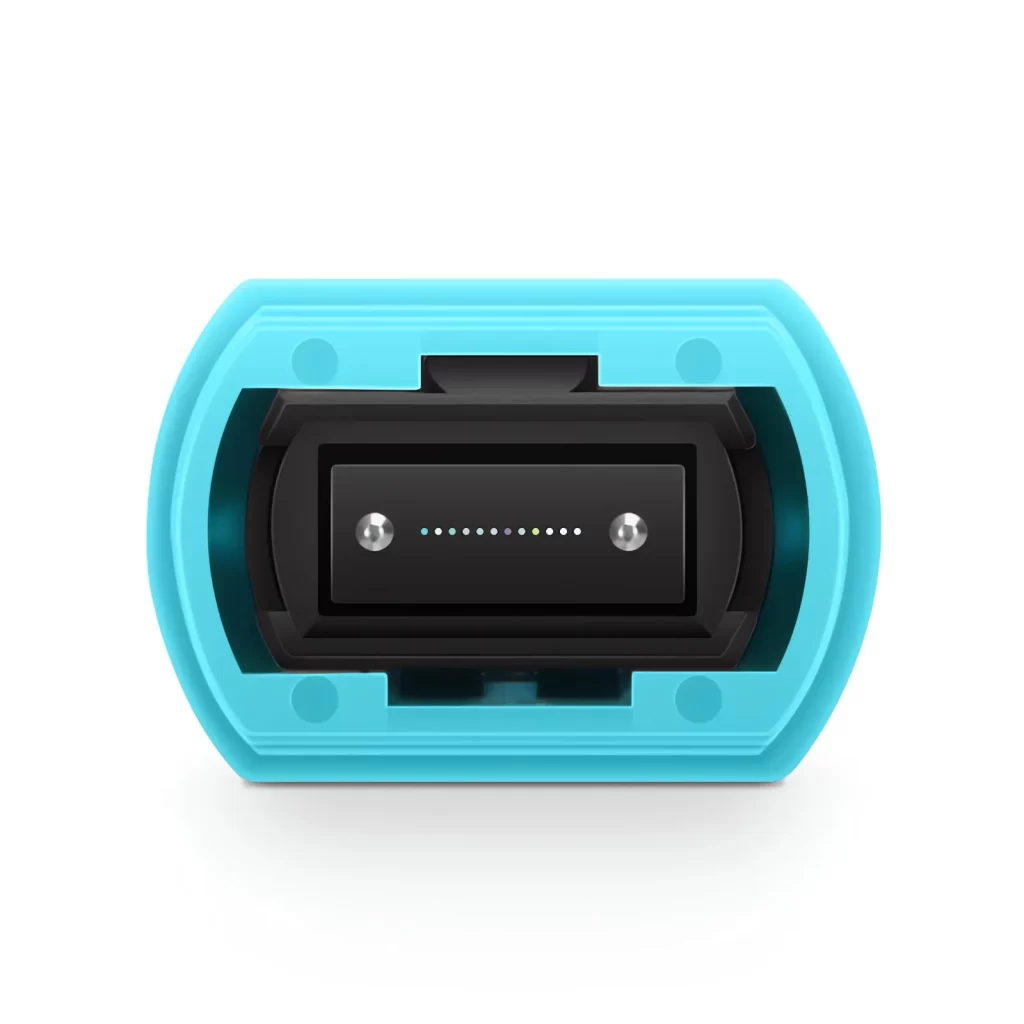

MPO (Male) OM3/OM4 Multimode Field Assembly Splice-on Connector, Flat Ribbon
The fusion splice MPO connector is a multimode 50/125μm OM3/OM4 fiber connector, intended for unjacketed flat ribbon fiber cable installation.
$12.60
- Use high-quality raw materials. Quality Control
- Fast delivery by DHL or Fedex. Shipping Policy
- 60-day return and exchange. Returns & Refunds
- Professional customer service. Services Center
Connector Type
MPO Male (Pinned)
Polish Type
UPC
Number of Fibers
12
Fiber Type
OM3/OM4
Insertion Loss
0.75dB Max, 0.35dB Typ.
Return Loss
20dB Min.
Housing Color
Aqua
Boot Color
Black
Cable Type
Flat Ribbon
Temperature
Storage 0 to 42°C (32 to 108℉）
Operating 0 to 60°C (32 to 140℉）
Operating 0 to 60°C (32 to 140℉）
