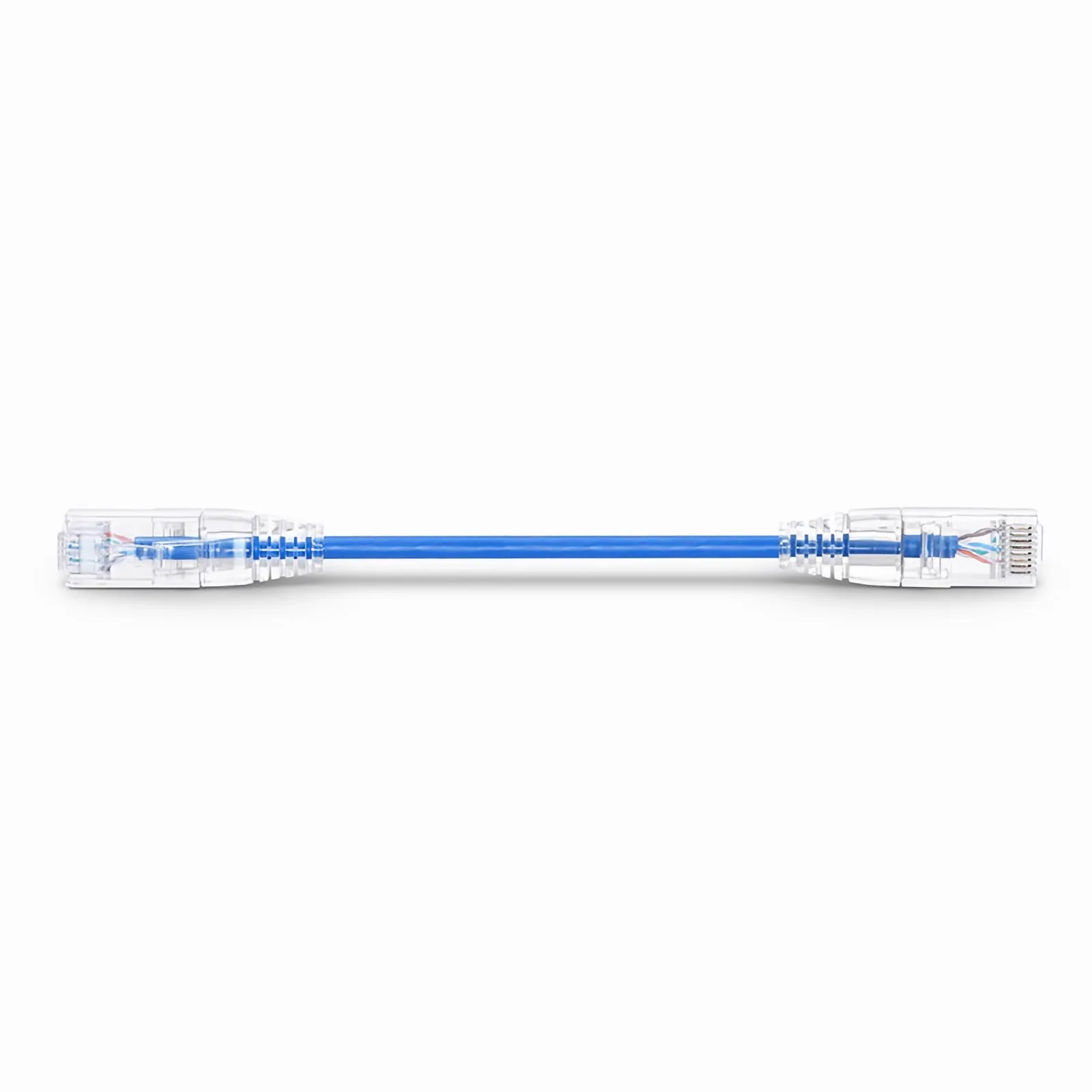

Cat6a 24AWG Snagless Unshielded (U/UTP) LSZH Ethernet Network Patch Cable

×

Bulk Quote:



Cat6a 24AWG Snagless Unshielded (U/UTP) LSZH Ethernet Network Patch Cable



    Cat6a network patch cable is the cost-effective solution for indoor data center applications, supporting up to 10GBase-T and 550MHz within 100 meters of cable.

    US $3.60
    • Use high-quality raw materials
    • Fast delivery by default DHL or Fedex
    • 60-day worry-free return and exchange
    • Professional customer service

    Cat6a Snagless Unshielded (UTP) LSZH Ethernet Network Patch Cable, 24AWG, 10GBase-T

    Cat6a network patch cable is the cost-effective solution for indoor data center applications, supporting up to 10GBase-T and 550MHz within 100 meters of cable. And it is fully backward compatible with all the previous categories. The FS cat6a patch cables conductor apply Pure Bare Copper with high electrical conductivity and low signal transmission attenuation. The sheath material is low smoke and halogen-free LSZH, which can produce less smoke and almost no highly toxic gas called halogen. Stranded copper patch cable can be used with a longer flex-life. Tested and verified to meet Cat6a component requirements for ANSI/TIA-568.2-D and ISO/IEC 11801 standards. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles. Cat6a cable uses eight-core four-pair precision twisted pairing technology and passes the Fluke test, which ensures that it can provide stable high-speed network connection and ensure the accuracy and reliability of data transmission.

    Specifications
    Cable Type
    Cat6a Snagless
    Shielding Type
    Unshielded (UTP)
    Cable Jacket
    LSZH
    Length
    0.5m (Including Plugs)
    Data Rate Support
    10GBase-T
    Maximum (Tested) Frequency
    550MHz
    Conductor Type
    Stranded >99.95% Oxygen-free Copper
    Connectors
    RJ45 (Male)
    Gauge (AWG)
    24 (7/0.20mm)
    Cable Outer Diameter (mm)
    6.1 ± 0.4
    PoE Compatibility
    PoE/PoE+/PoE++
    Wire Scheme
    T568B, Straight
    Plug Type
    8 Position
    Support FSWireNet
    No
    Operating Temperature
    -40 to +85°C (-40 to 185°F)
    Installation Temperature
    -10 to +50°C (14 to 122°F)
