Cat6a network patch cable is the cost-effective solution for indoor data center applications, supporting up to 10GBase-T and 750MHz within 100 meters of cable. And it is fully backward compatible with all the previous categories. The FS cat6a patch cables conductor apply Pure Bare Copper with high electrical conductivity and low signal transmission attenuation. The sheath material is new environmentally friendly material PVC CMP, which is durable, flame-retardant, resistant to bending. Stranded copper patch cable can be used with a longer flex-life. Tested and verified to meet Cat6a component requirements for ANSI/TIA-568.2-D and ISO/IEC 11801 standards. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles. Cat6a cable uses eight-core four-pair precision twisted pairing technology and passes the Fluke test, which ensures that it can provide stable high-speed network connection and ensure the accuracy and reliability of data transmission.

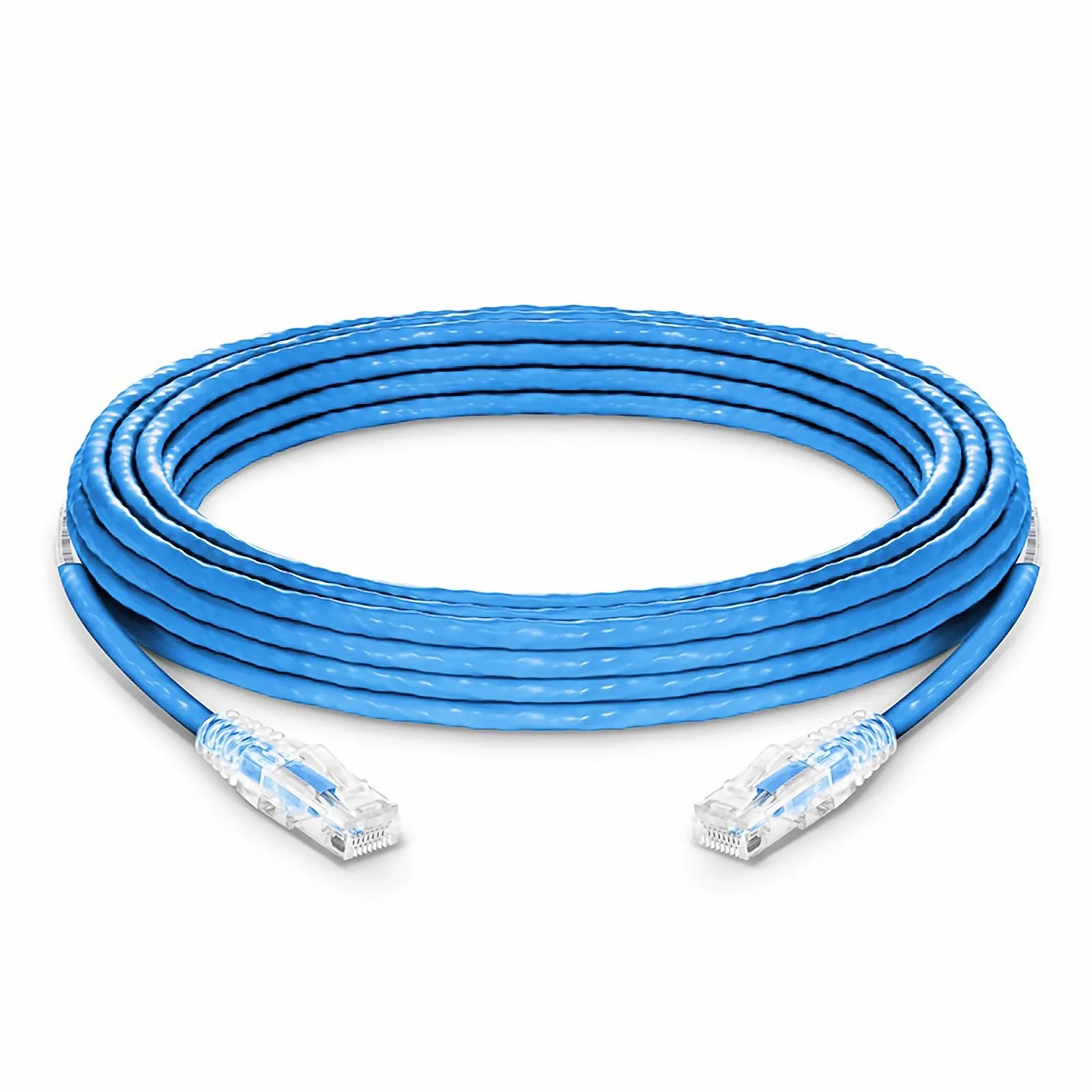

Cat6a 23AWG Snagless Unshielded (U/UTP) PVC CMP Ethernet Network Patch Cable
Cat6a network patch cable is the cost-effective solution for indoor data center applications, supporting up to 10GBase-T and 750MHz within 100 meters of cable.
Price range: $44.10 through $169.20
- Use high-quality raw materials. Quality Control
- Fast delivery by DHL or Fedex. Shipping Policy
- 60-day return and exchange. Returns & Refunds
- Professional customer service. Services Center
Cat6a Snagless Unshielded (UTP) Ethernet Network Patch Cable, 23AWG, 10GBase-T
Specifications
Cable Type
Cat6a Snagless
Shielding Type
Unshielded (UTP)
Cable Jacket
PVC CMP
Length
10.0m (Including Plugs)
Conductor Material
>99.95% Oxygen-free Copper
Conductor Type
Solid
Data Rate Support
10GBase-T
Maximum (Tested) Frequency
750MHz
Gauge (AWG)
23
Cable Outer Diameter (mm)
6.2 ± 0.3
Termination End
RJ45 Plug
Twisted Pairs
4 Pairs
Wire Scheme
T568B, Straight
Standard
ISO/IEC 11801, ANSI/TIA-568.2-D
Plug Type
8 Position
Support FSWireNet
Yes
Operating Temperature
-20 to +75°C (-4 to 167°F)
Installation Temperature
-10 to +50°C (14 to 122°F)
