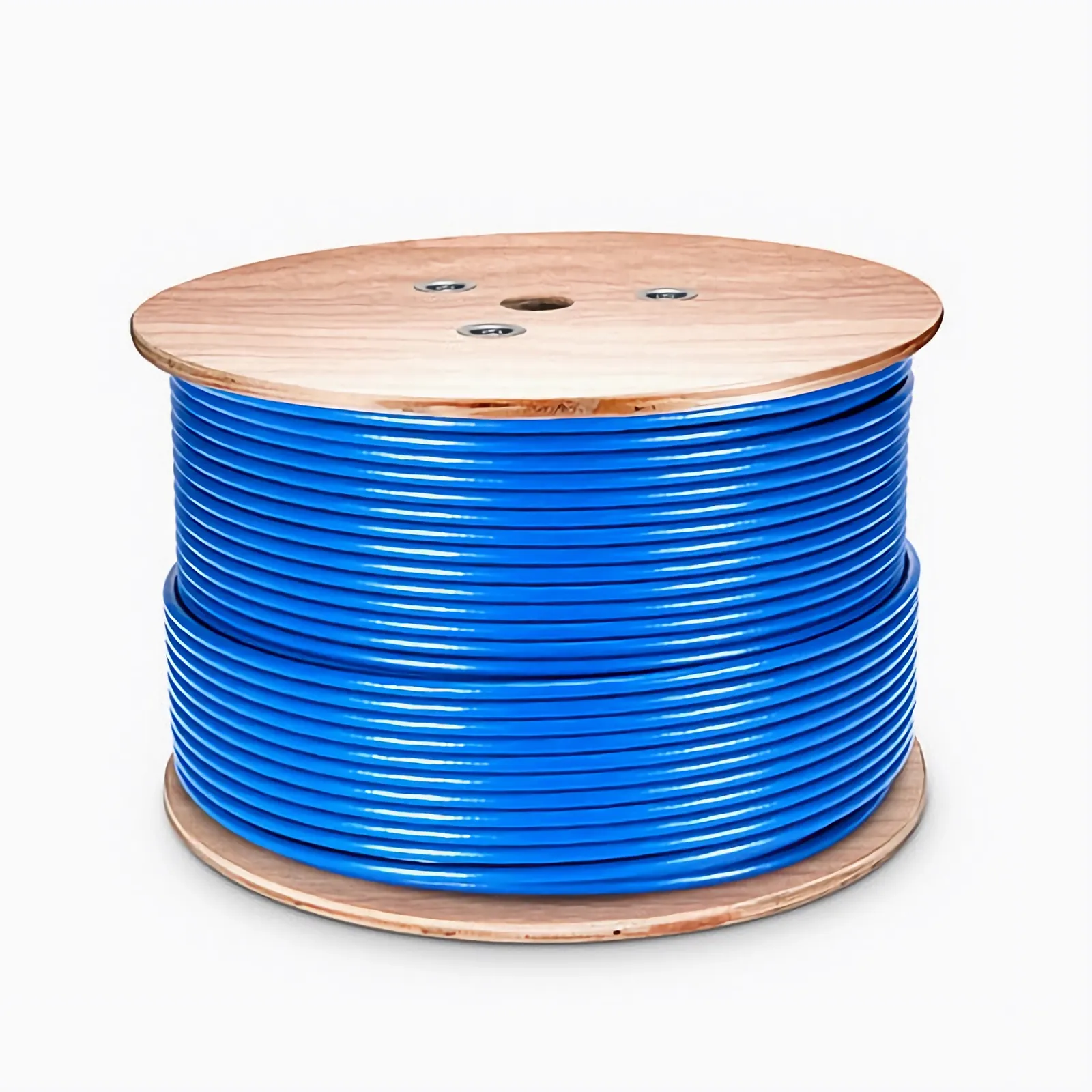

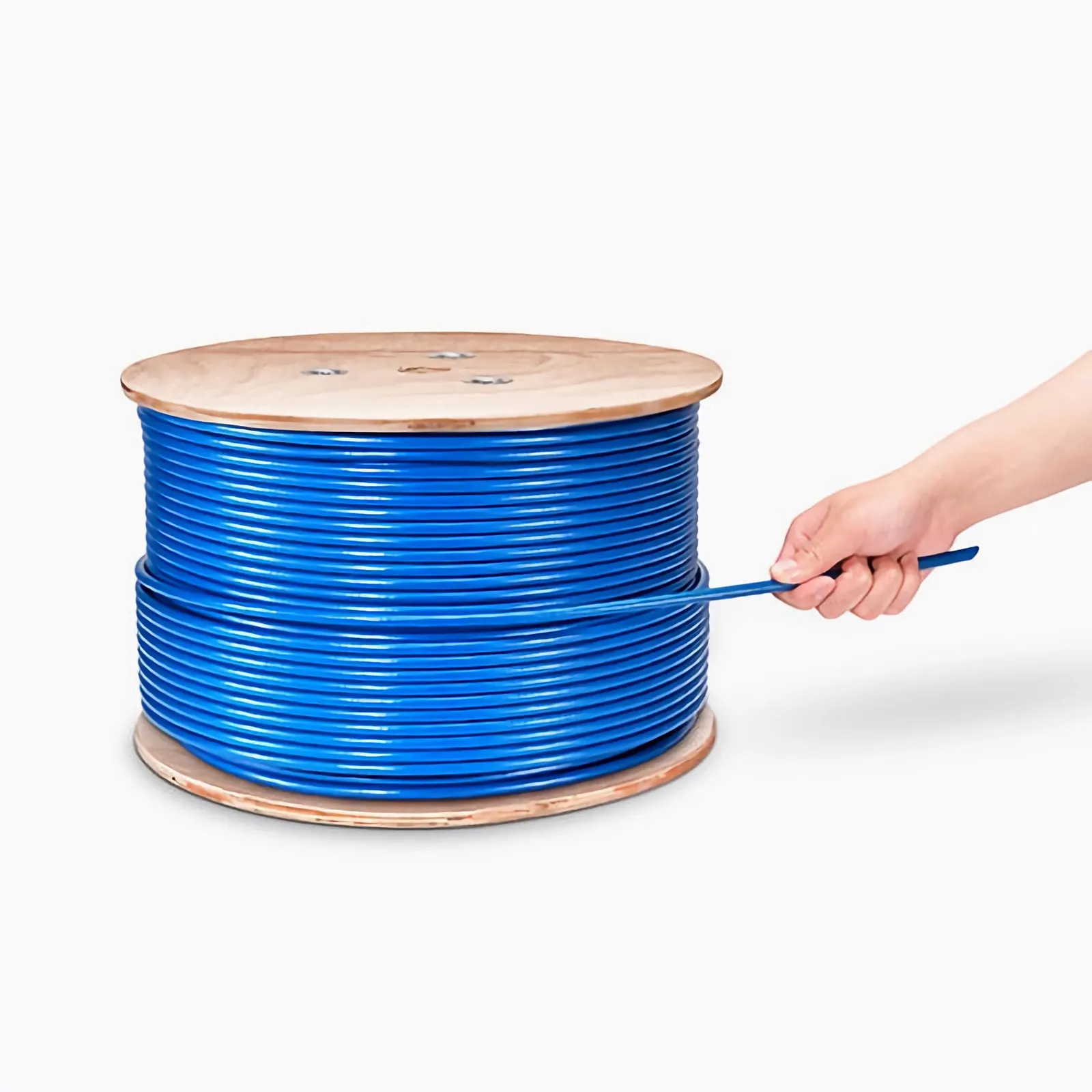

Cat6 Ethernet Bulk Cable, 305m, 23AWG Solid Pure Bare Copper Wire, 550MHz, Shielded (SF/UTP), PVC CMR, with Reel (Blue)
This cable is perfect for all your advanced networking installations.
$562.50
- Use high-quality raw materials. Quality Control
- Fast delivery by DHL or Fedex. Shipping Policy
- 60-day return and exchange. Returns & Refunds
- Professional customer service. Services Center
Cable Type
Category 6
Shielding Type
SF/UTP
Cable Jacket
PVC CMR
Cable Length
305m
Reference Bandwidth
550MHz
Data Rate Support
10/100/1000Base-T
Wire Gauge
23AWG
Conductor Type
Pure Bare Copper Wire
Putup Type
Reel
Number of Conductors
4 Pairs
Conductor Diameter (mm)
0.565 ± 0.005
Cable Outer Diameter (mm)
7.80 ± 0.40
Maximum Installation Tension (N)
110
Bend Radius (mm)
32.8
Cable Color
Blue
Standard
ISO/IEC 11801, ANSI/TIA-568.2-D
Operating Temperature
-20 to 75°C (-4 to 167°F)
Installation Temperature
-10 to 50°C (-14 to 122°F)
