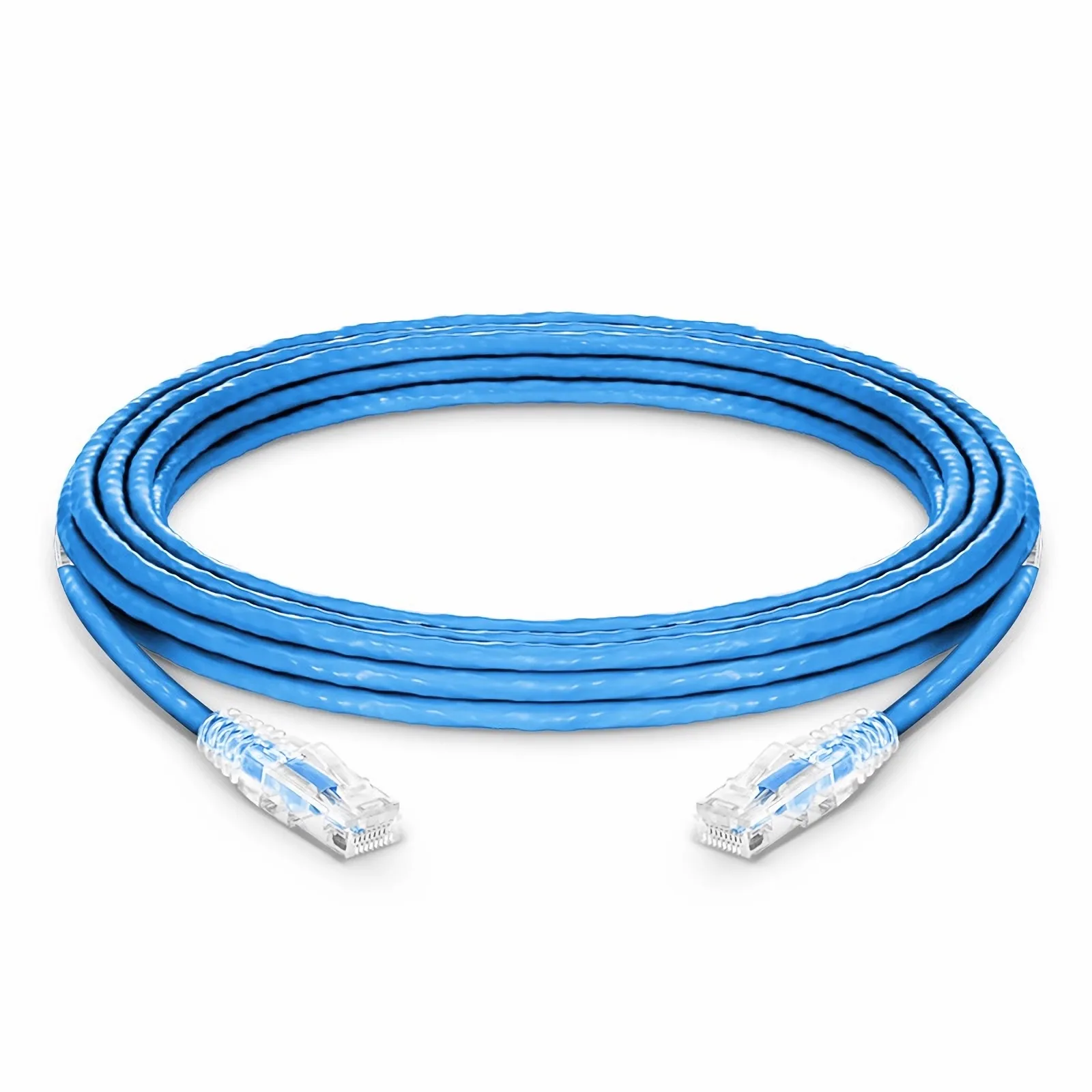

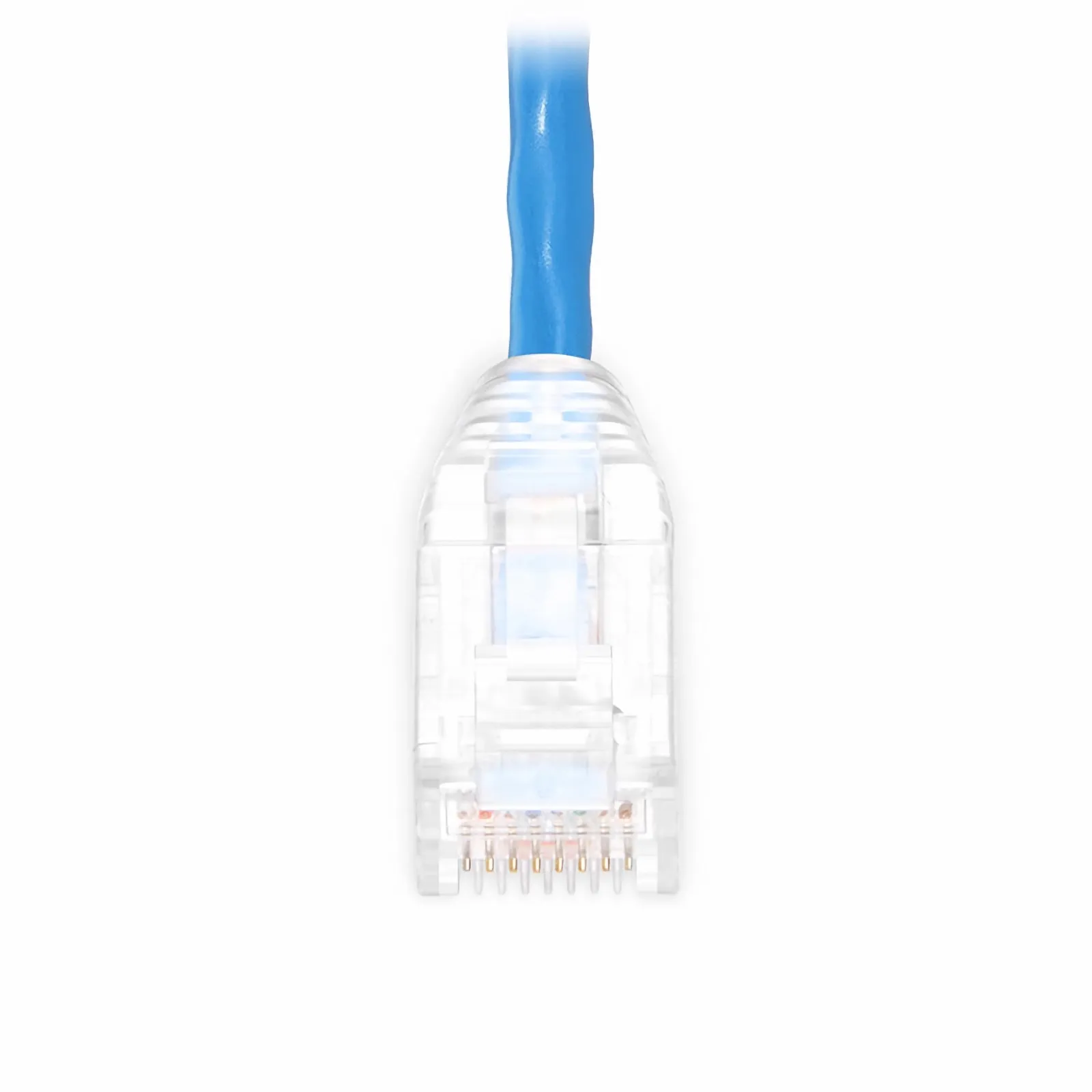

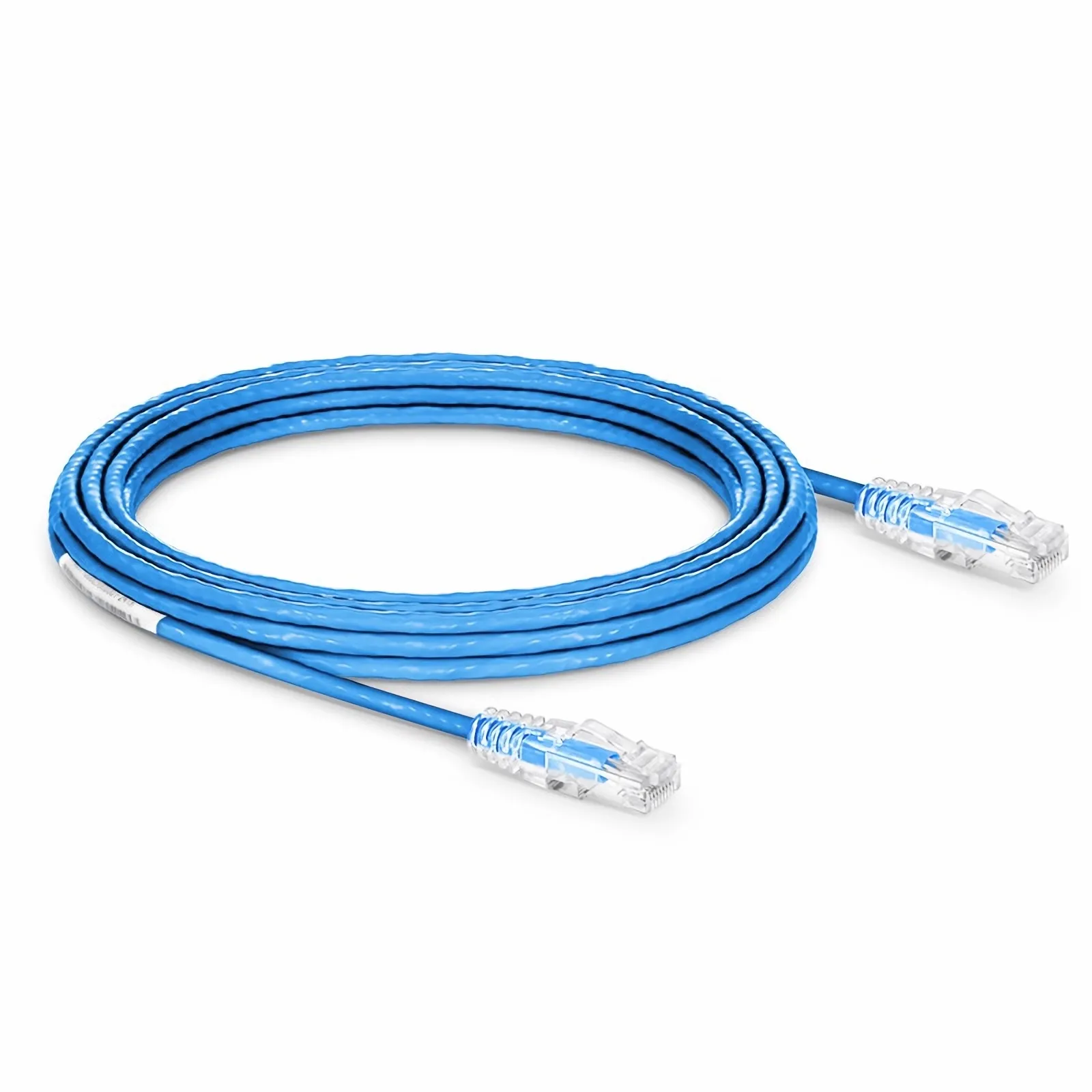

Cat6 UTP patch cable features 23AWG unshielded twisted pair solid pure bare copper cable with a high performance modular plug at each end. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation. The flexible strain relief boot provides easy access in high-density applications.
It exceeds the performance of the Cat6 Ethernet network cable standard and offers the cost-effective solution for indoor Gigabit Ethernet data center applications, supporting 1000Mbps and 550MHz within 100 meters of cable. All patch cords shall be compatible with both T568B wire scheme. Stranded copper patch cable can be used with a longer flex-life. Tested and verified to meet Cat6 component requirements for ANSI/TIA-568.2-D and ISO/IEC 11801 standards. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.
Cat6 c Snagless Unshielded (U/UTP) PVC CMP Ethernet Network Patch Cable
Cat6 UTP patch cable features 23AWG unshielded twisted pair solid pure bare copper cable with a high performance modular plug at each end.
Price range: $32.40 through $63.00
- Use high-quality raw materials. Quality Control
- Fast delivery by DHL or Fedex. Shipping Policy
- 60-day return and exchange. Returns & Refunds
- Professional customer service. Services Center
Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, 23AWG, 1000Base-T
Specifications
Cable Type
Cat6 Snagless
Shielding Type
Unshielded (UTP)
Cable Jacket
PVC CMP (Round)
Length
10.0m (Including Plugs)
Conductor Material
>99.95% Oxygen-free Copper
Conductor Type
Stranded
Data Rate Support
1000Base-T and Maximum to 10GBase-T
Maximum (Tested) Frequency
550MHz
Gauge (AWG)
23
Cable Outer Diameter (mm)
6.1 ± 0.4
PoE Compatibility
PoE/PoE+/PoE++
Connectors
RJ45 (Male)
Wire Scheme
T568B, Straight
Standard
ISO/IEC 11801, ANSI/TIA-568.2-D
Plug Type
8 Position
Support FSWireNet
Yes
Operating Temperature
-20 to +75°C (-4 to 167°F)
Installation Temperature
-10 to +50°C (14 to 122°F)
