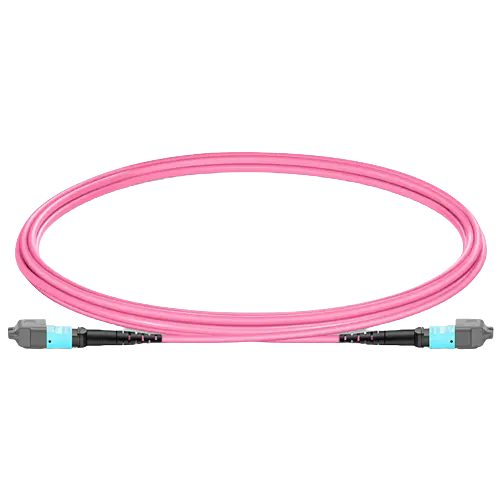

12 Fibers Multimode (OM4) Patch Cable, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB, Magenta

This Bend Insensitive OM4 multimode fiber (50/125 µm) is designed for high-performance data transmission. It features a 12-fiber count and supports 850/1300 nm wavelengths with low attenuation (≤2.3 dB/km at 850 nm and ≤1.0 dB/km at 1300 nm). The connectors have a UPC to UPC polish, Type B polarity, ensuring an insertion loss of ≤0.35 dB and a return loss of ≥30 dB.​

Physical Characteristics and Durability

The fiber cable has a compact 3.0 mm diameter and a minimum bend radius of 7.5 mm for the fiber core, making it highly flexible for tight spaces. It is built for durability with a tensile strength of 80/150 N (Long/Short Term) and connector durability rated for 500 to 1000 mating cycles. The minimum bend radius for the cable itself is 10D (Dynamic) and 5D (Static).​

Safety and Environmental Rating

This cable is constructed with a Low Smoke Zero Halogen (LSZH) jacket and carries an OFNR (Optical Fiber Non-conductive Riser) flame rating, ensuring enhanced safety in building installations. It is designed to operate reliably in a wide temperature range from -20°C to 70°C, making it suitable for various demanding environments.

Quality Assurance

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
