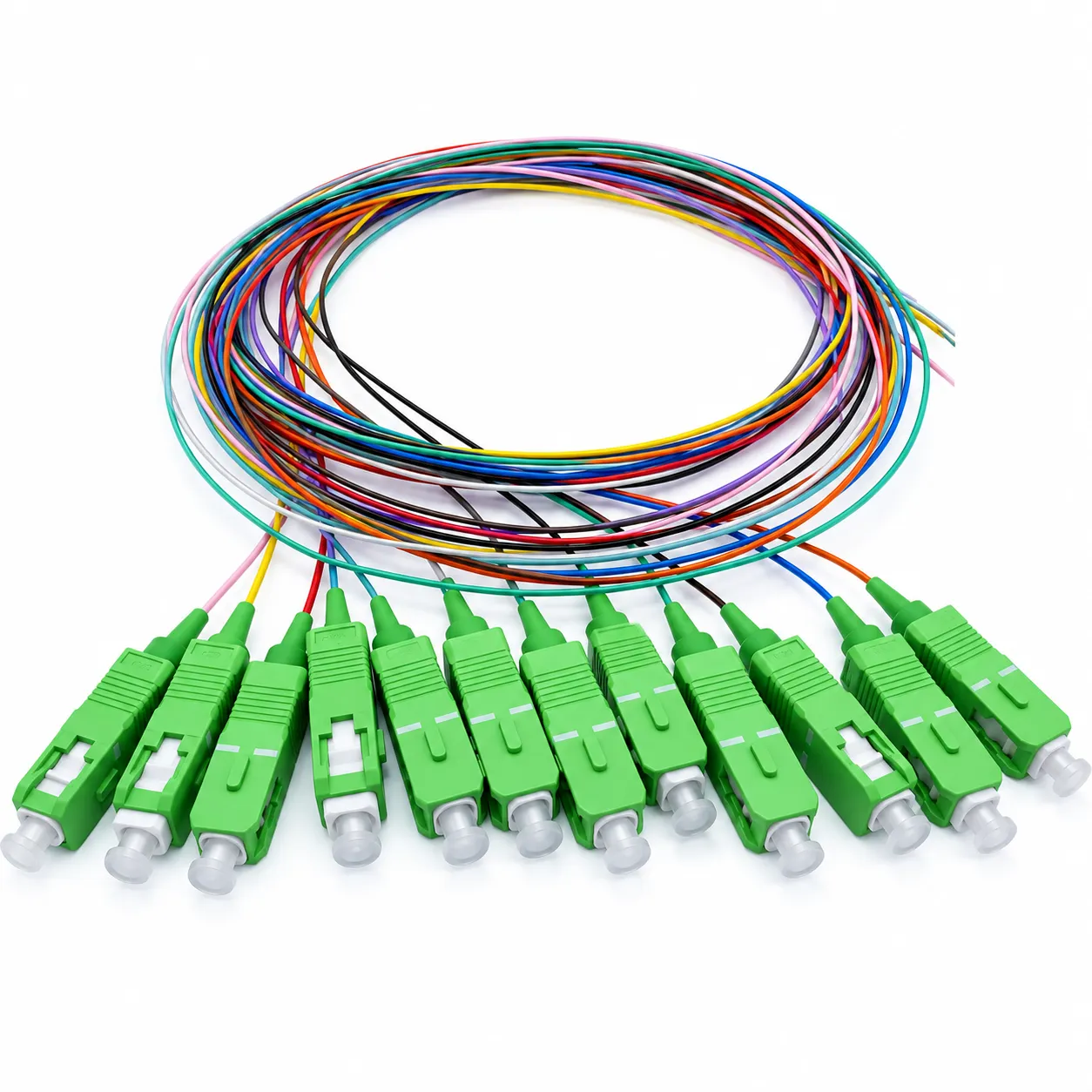

12 fiber SC APC single-mode pigtail with green SC connectors and color-coded coiled fibers

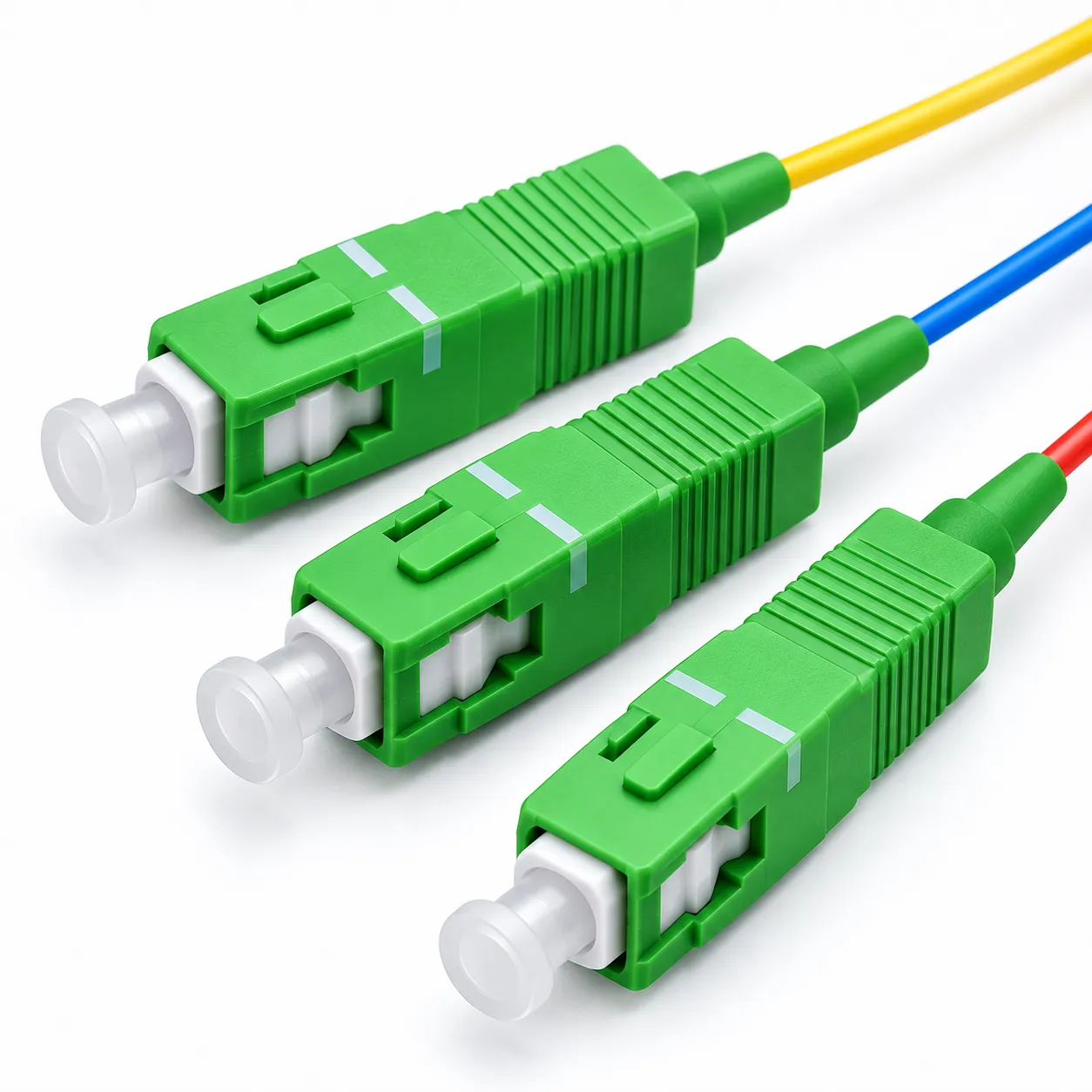

Close-up of green SC APC fiber pigtail connectors with white protective dust caps
Illustrated 12 fiber SC APC pigtail structure with color-coded fibers, connector ends and labeled specifications
Green SC APC fiber pigtail connectors installed in an optical distribution frame with organized fibers and splice tray
  • 12 fiber SC APC single-mode pigtail with green SC connectors and color-coded coiled fibers
  • Close-up of green SC APC fiber pigtail connectors with white protective dust caps
  • Illustrated 12 fiber SC APC pigtail structure with color-coded fibers, connector ends and labeled specifications
  • Green SC APC fiber pigtail connectors installed in an optical distribution frame with organized fibers and splice tray
12 fiber SC APC single-mode pigtail with green SC connectors and color-coded coiled fibers Close-up of green SC APC fiber pigtail connectors with white protective dust caps Illustrated 12 fiber SC APC pigtail structure with color-coded fibers, connector ends and labeled specifications Green SC APC fiber pigtail connectors installed in an optical distribution frame with organized fibers and splice tray

12 Fiber SC APC Pigtail, 1m G.652.D Single Mode

12 Fiber SC APC Pigtail with G.652.D single-mode fiber, 1m length and 0.9mm color-coded branches for ODF use and fusion splicing.

₩9,036

12 Fiber SC APC Pigtail for Single-Mode Fiber Splicing

The 12 Fiber SC APC Pigtail is a 1-meter, 12-fiber assembly with SC/APC connectors pre-terminated on color-coded 0.9 mm branches. It uses G.652.D single-mode fiber, with the opposite ends left unterminated for fusion splicing into a distribution or termination enclosure.

Each green SC/APC connector uses an angled-contact interface and must be paired with compatible SC/APC equipment. SC/APC and SC/UPC polishing styles should not be directly mated. The SC push-pull housing is larger than an LC connector, making connector type an important part of enclosure and adapter selection.

The individual colored branches allow installers to identify, route and splice the 12 fibers separately. In optical distribution frames (ODFs), FTTH termination boxes and other fiber-management enclosures, the pre-terminated ends connect to matching SC/APC ports while the free ends are spliced to the incoming cable fibers. Protect completed splices and follow the enclosure’s bend-management requirements.

Product TypeFiber Optic PigtailFiber Count12 fibers
ConnectorSC/APCFiber TypeG.652.D single-mode
Assembly Length1 mBranch Diameter0.9 mm
TerminationSC/APC to unterminated fiberFiber IdentificationColor-coded branches
Insertion Loss (supplier-listed)≤0.3 dBReturn Loss (APC, supplier-listed)≥60 dB

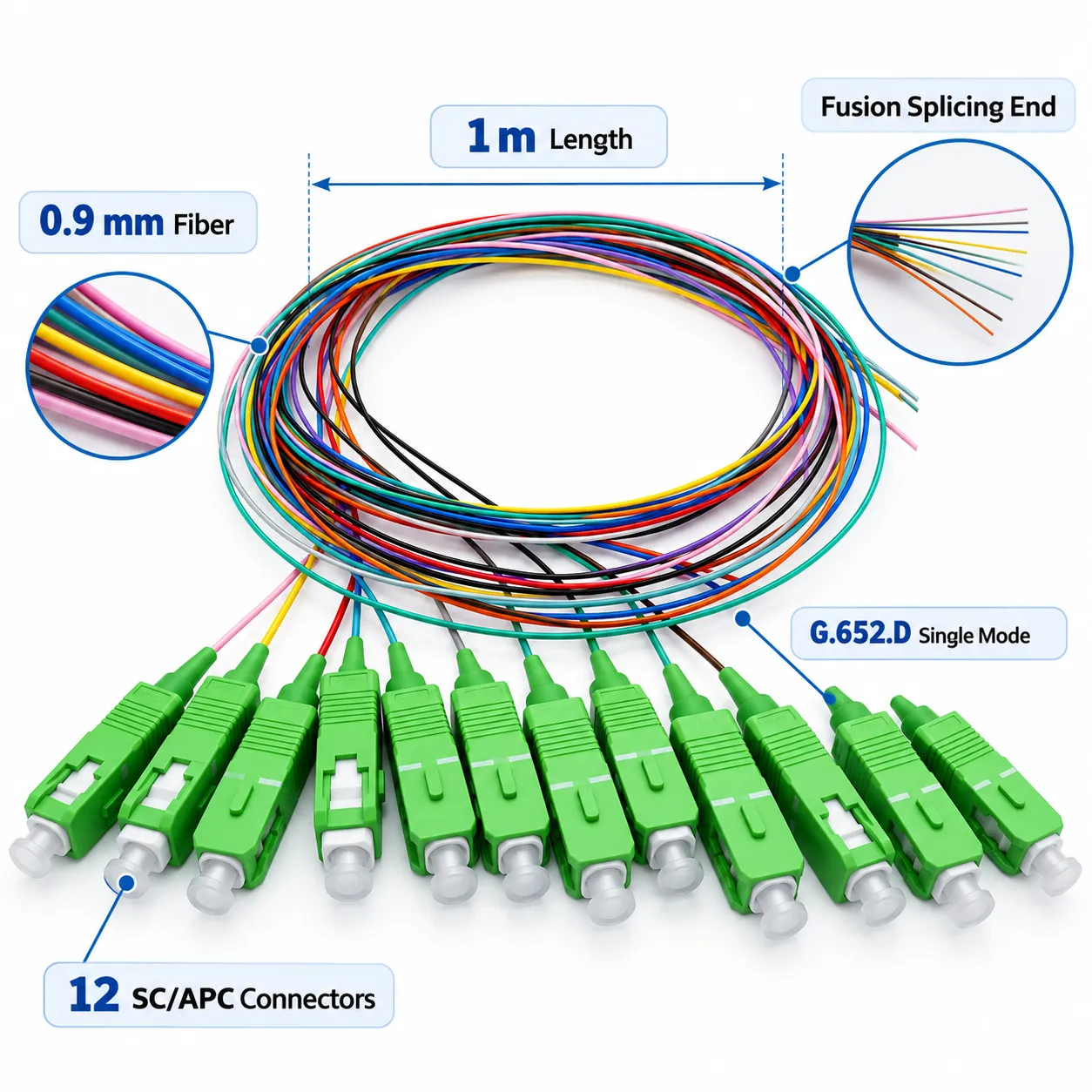

12 Fiber SC APC Pigtail structure overview showing green SC/APC connectors and color-coded fiber branches

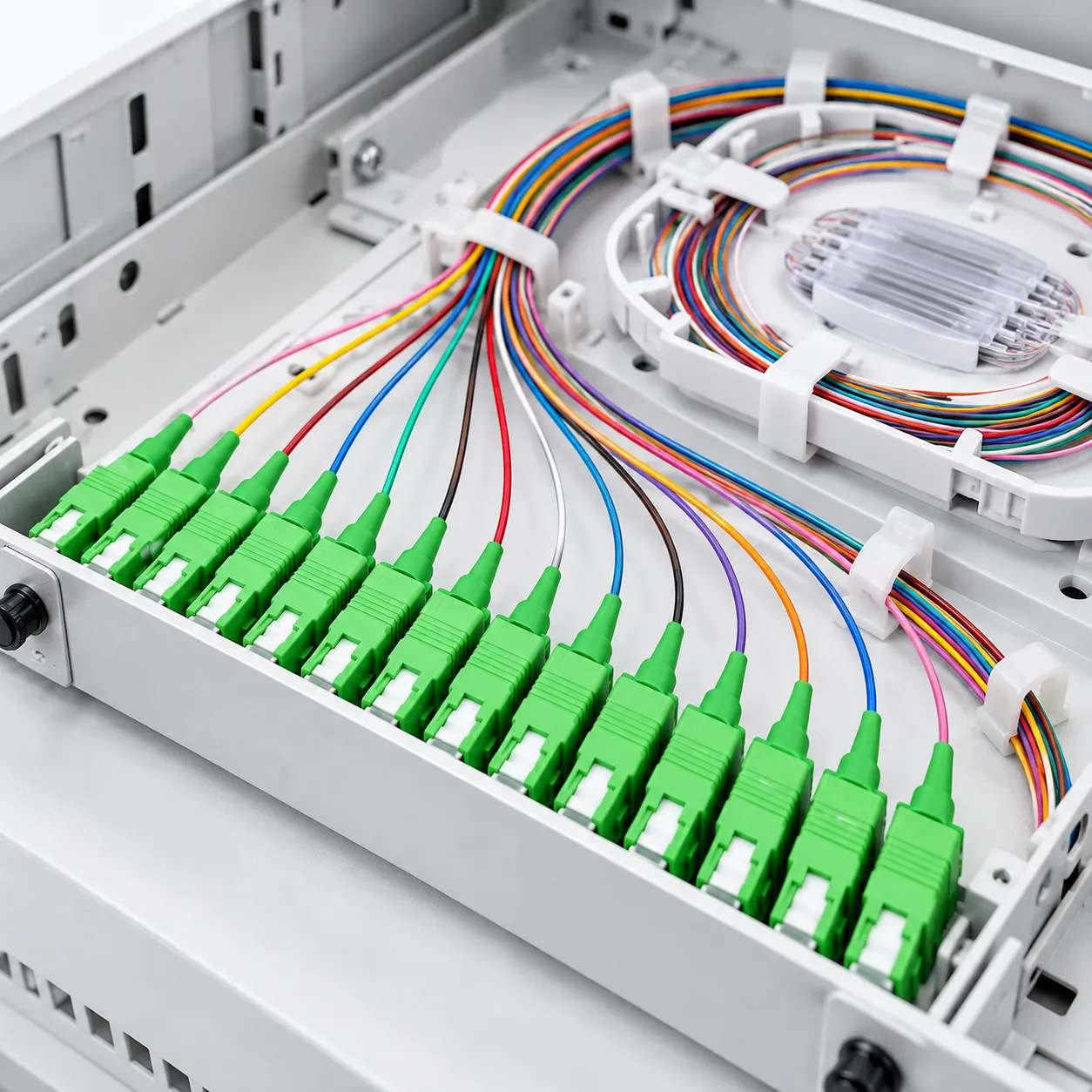

12 fiber SC APC pigtail shown in an optical distribution frame with routed fibers and splice management
Illustration of fiber optic pigtail structure and splicing in a fiber termination system

A fiber optic pigtail has a connector at one end and an unterminated fiber end for joining to a cable by splicing. Multi-fiber pigtail bundles allow individual fibers to be identified, routed into splice trays and connected to the correct distribution ports. Protect each completed splice and manage fiber routing according to the enclosure and cable requirements.

Fiber optic pigtails used in FTTH and optical fiber distribution network applications

Fiber optic pigtails are used in FTTH distribution boxes, optical distribution frames and telecom termination enclosures. Selection depends on fiber mode, connector type, polish, fiber count and available splice-tray space. Match the connector and polish to the intended adapter and the fiber characteristics to the network design before installation.

Strict Quality Control System

Consistent stable quality is our core competitiveness for fiber optic products.
Our technical team has extensive experience in fiber optic communication.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers,
quality control process and production technology,
and compliance with certification and safety standards.
At present, our products meet the industry standards
and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
1649315365 62039 Supplier of fiber optic patch cables, cat5e/cat6/cat6a Ethernet cables, data transmission cables, audio/video cables, and power cords.

Our Advantages

Fast Shipment

Short Lead Time Fast Delivery

Professional Support

Professional Service Technical Support

Quality Guarantee

Worry-Free Guarantee Shopping Satisfactorily

High Quality Cable

Premium Quality High stability

자주 묻는 질문

Can I plug this SC/APC pigtail into an SC/UPC adapter or port?

Use an SC/APC-compatible adapter and matching APC end-face connection. SC/APC and SC/UPC connectors have different polishing styles and should not be directly mated.

How are the 12 unterminated fiber ends connected during installation?

Prepare each free end and fusion-splice it to the corresponding cable fiber, then protect the splice and route it inside a suitable splice tray. Follow the fiber assignment plan and enclosure requirements.

Why does this pigtail use 12 different colored fiber branches?

Color coding helps technicians distinguish individual fibers when routing, splicing and troubleshooting. Match each branch to the fiber sequence specified for the installation.
