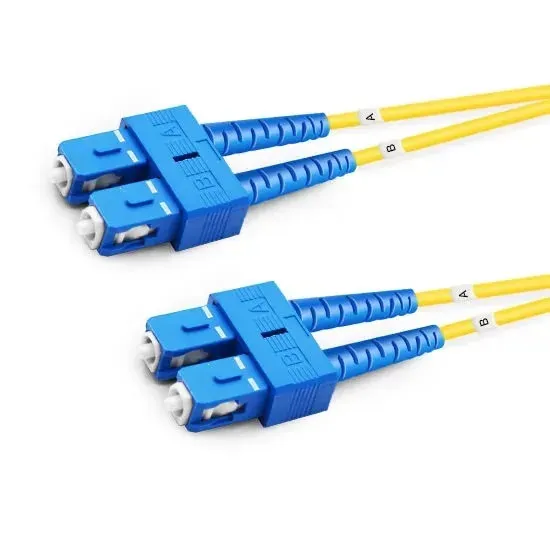

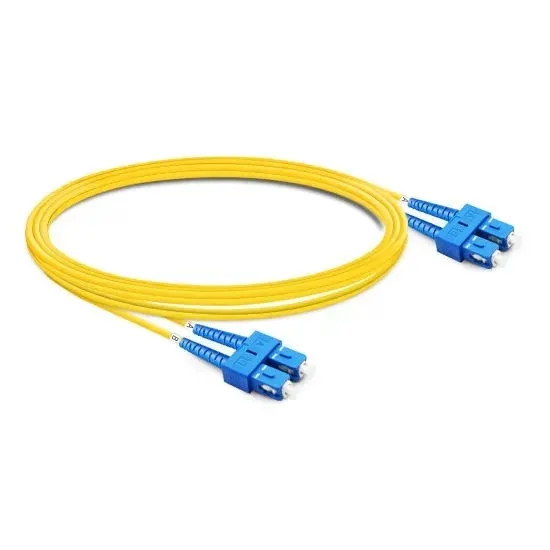

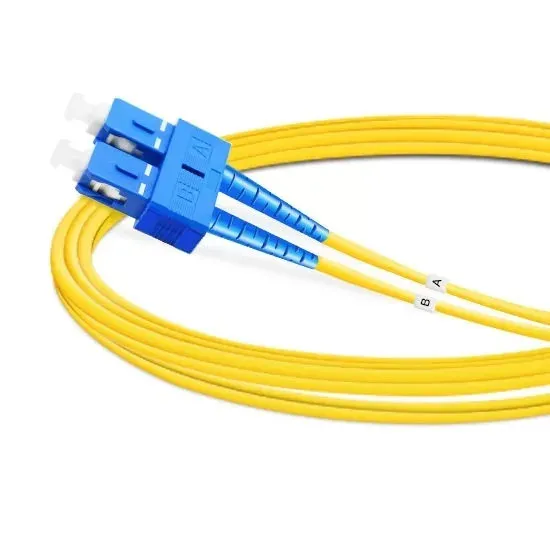

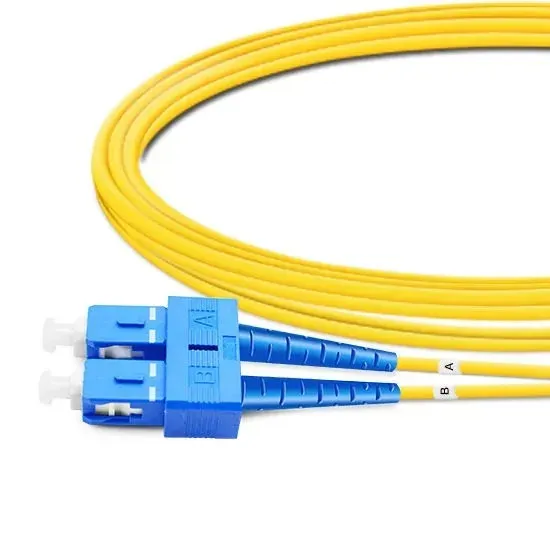

Name: SC UPC の二重 LSZH 9/125 の単一モード 3.0mm の繊維パッチ ケーブルへの SC UPC
SKU: 6569
Availability: InStock

Specifications

Connector Type

SC UPC to SC UPC

Fiber Grade

G.657.A/G.652.D

Fiber Mode

OS2 9/125μm

Wavelength

1310/1550nm

Insertion Loss

≤0.3dB

Return Loss

≥50dB

Min. Bend Radius(Fiber Core)

10mm

Min. Bend Radius(Fiber Cable)

10/5D (Dynamic/Static)

Attenuation at 1310 nm

0.36 dB/km

Attenuation at 1550 nm

0.22 dB/km

Fiber Count

Duplex

Cable Diameter

3.0mm

Cable Jacket

LSZH/OFNR

Polarity

A (Tx) to B (Rx)

Operating Temperature

-20~70°C

Storage Temperature

-40~80°C

Compliance

TIA-604 (FOCIS)

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. Cablefam adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: 3D Interferometer Test

: End-Face Inspection

: Insertion Loss and Return Loss Testing

Quality Assurance

Excellent quality is the foundation of Cablefam’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
