The Cat6a slim patch cable is the perfect solution for high-density racks in data centers and out-of-band management in AI networks. Its compact 28AWG design simplifies installation and management. Smaller patch lead size helps alleviate congestion as well as improve airflow with in the racks. Snagless boot prevents unwanted cable snags during installation and provides extra strain relief, which provides easy access in high-density applications. Tested and verified to meet Cat6a component requirements for ANSI/TIA-568.2-D and ISO/IEC 11801 standards. They reduce the patch cord density by 33% when compared to typical Cat6a patch cords. The smaller diameter makes for a slimmer, more flexible cable that is perfect for cross-connects, workstations, or racks with higher-density and limited space.

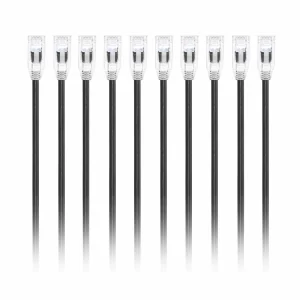

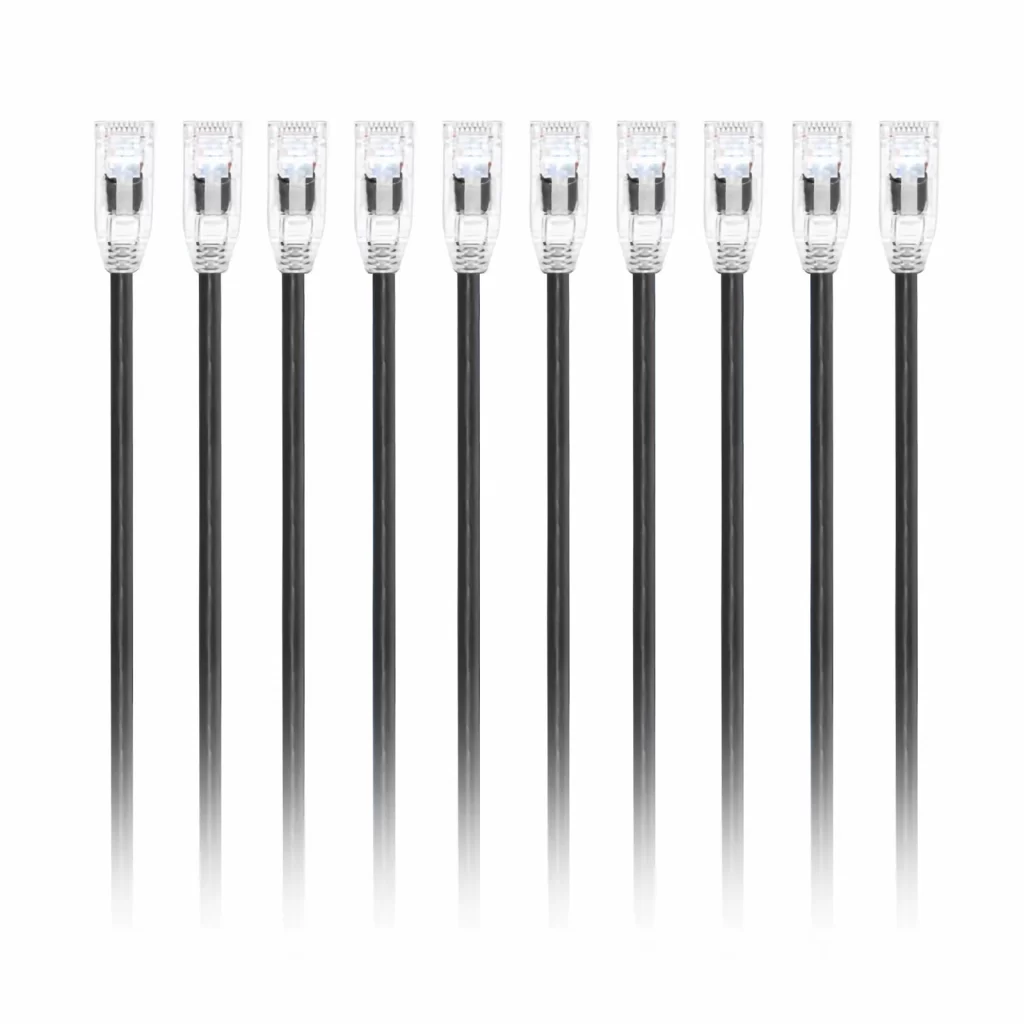

Cat6a 28AWG Snagless Unshielded (U/UTP) PVC CM Small Diameter High-Flex Ethernet Network Patch Cable, 10Pcs/pack
The Cat6a slim patch cable is the perfect solution for high-density racks in data centers and out-of-band management in AI networks.
US $28.80
- Utiliser des matières premières de haute qualité
- Livraison rapide par défaut DHL ou Fedex
- Retour et échange sans souci sous 60 jours
- Un service client professionnel
Cat6a Snagless Booted Unshielded (UTP) Slim Ethernet Network Patch Cable, 28AWG, 1/10G Base-T
Specifications
Cable Type
Cat6a Slim Snagless
Shielding Type
Unshielded (UTP)
Cable Jacket
PVC CM
Length
0.5m (Including Plugs)
Conductor Material
>99.95% Oxygen-free Copper
Conductor Type
Stranded
Data Rate Support
1000Base-T and Maximum to 10GBase-T
Maximum (Tested) Frequency
550MHz
Gauge (AWG)
28AWG (7/0.12mm)
Cable Outer Diameter (mm)
4.2 ± 0.3
PoE Compatibility
PoE/PoE+/PoE++
Twisted Pairs
4 Pairs
Wire Scheme
T568B, Straight
Standard
ISO/IEC 11801, ANSI/TIA-568.2-D
Plug Type
8 Position
Support FSWireNet
No
Operating Temperature
-20 to +75°C (-4 to 167°F)
Installation Temperature
-10 to +50°C (14 to 122°F)
