OM3 MPO Patch Cable, Male to Male, 8/12 Fibers, 50/125µm Multimode
OM3 MPO Patch Cable with male-to-male MPO connectors, available in 8 or 12 fibers for compatible 50/125µm multimode links.
Rango de precios: desde €10.59 hasta €21.15
- Utilizar materias primas de alta calidad. Control de calidad
- Entrega rápida por DHL o Fedex. Política de envíos
- Devolución y cambio en 60 días. Devoluciones y reembolsos
- Servicio al cliente profesional. Centro de Servicios

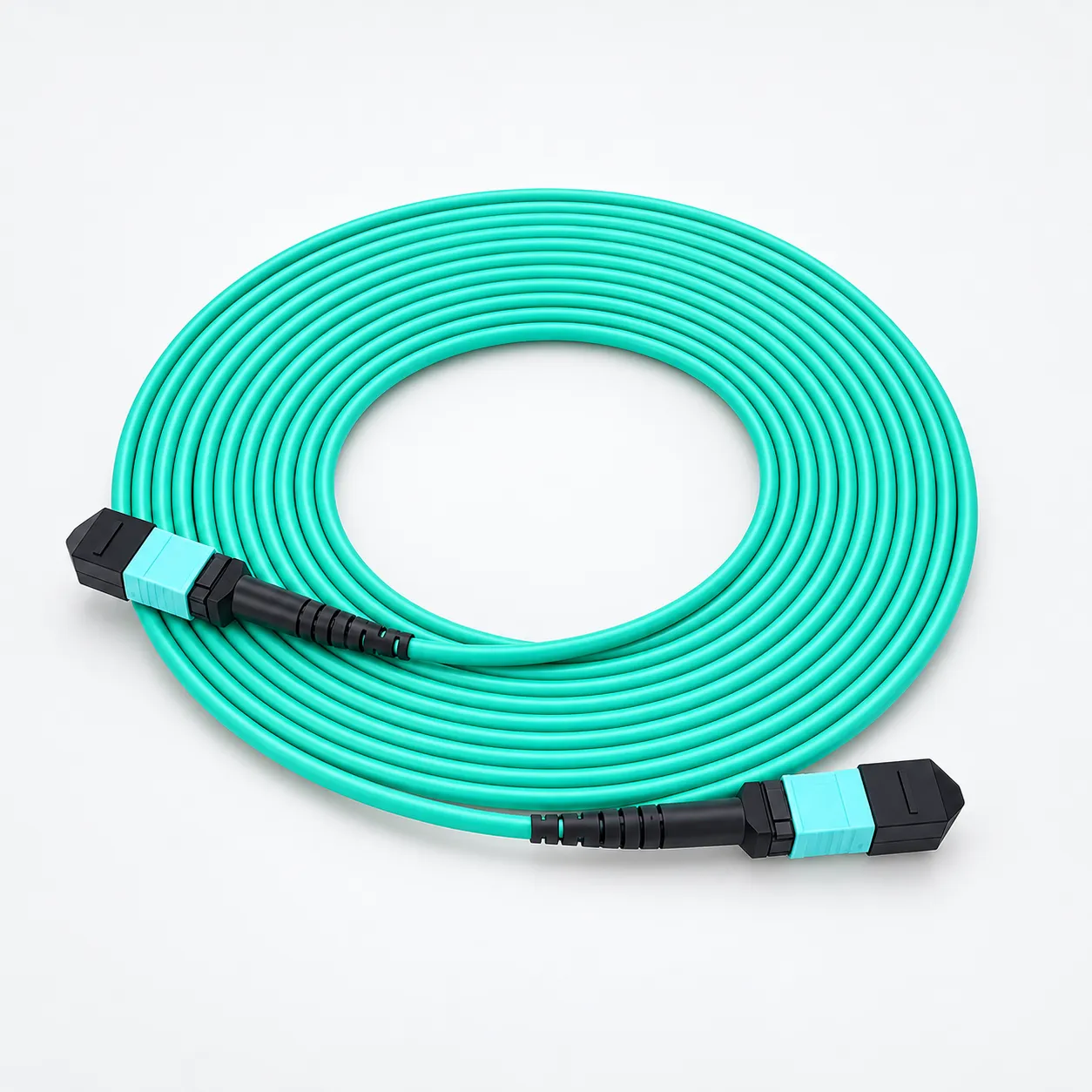

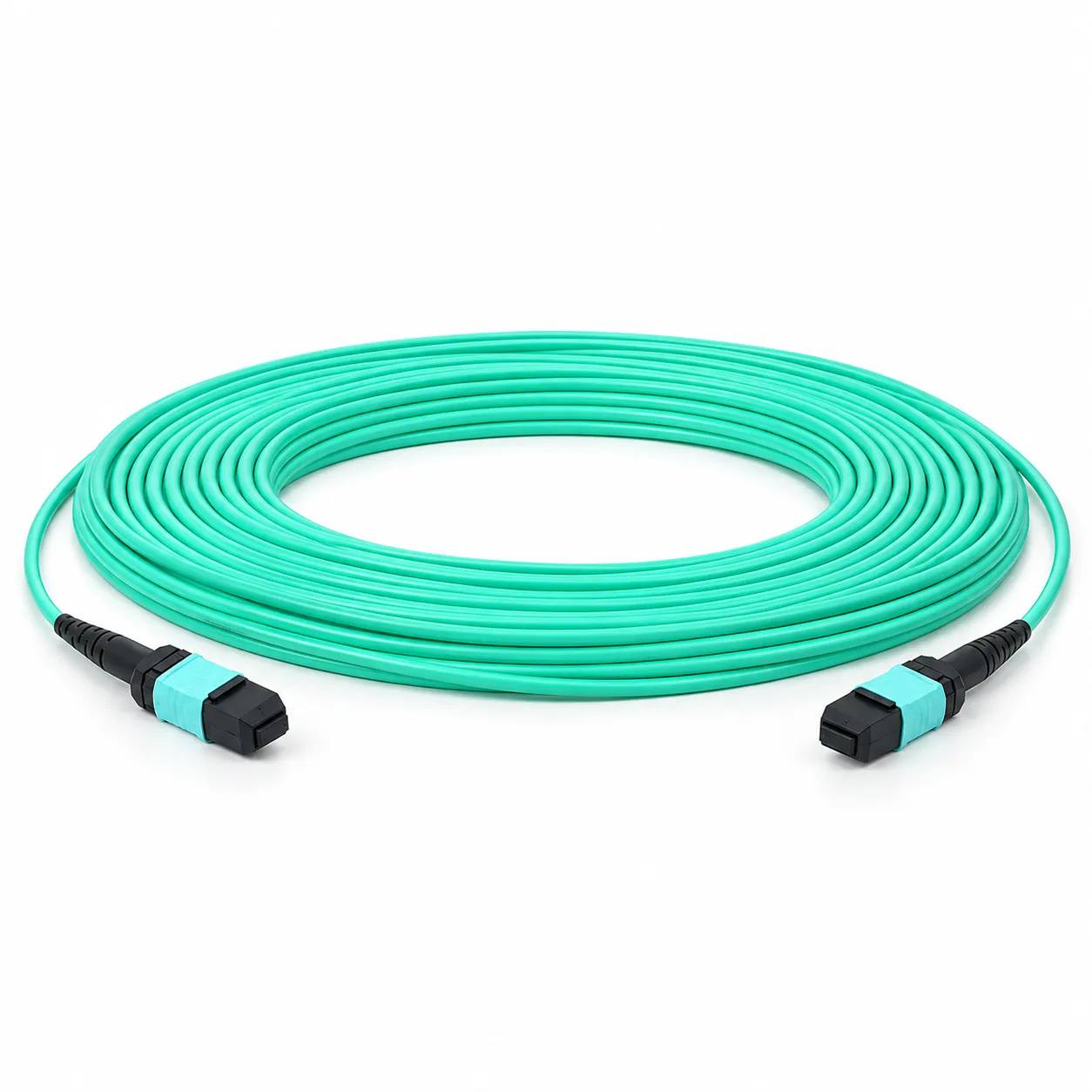

OM3 MPO Patch Cable, Male to Male, with 8 or 12 Fibers
The OM3 MPO Patch Cable is an MPO-to-MPO multimode fiber assembly with pinned (male) MPO connectors at both ends. It uses OM3 50/125µm fiber and is available with 8 or 12 fibers. Choose from the actual listed lengths for each fiber-count option. It is intended for compatible high-density multimode MPO cabling systems.
Male MPO connectors have guide pins and must mate with compatible pinless (female) MPO connectors. Before selecting this cable, verify the mating interface, polarity and key orientation required by the link. Eight-fiber and 12-fiber configurations must be matched to the channel’s fiber-position mapping.
| Connector A | MPO Male (pinned) | Connector B | MPO Male (pinned) |
| Fiber Type | OM3 multimode | Nominal Fiber Size | 50/125µm |

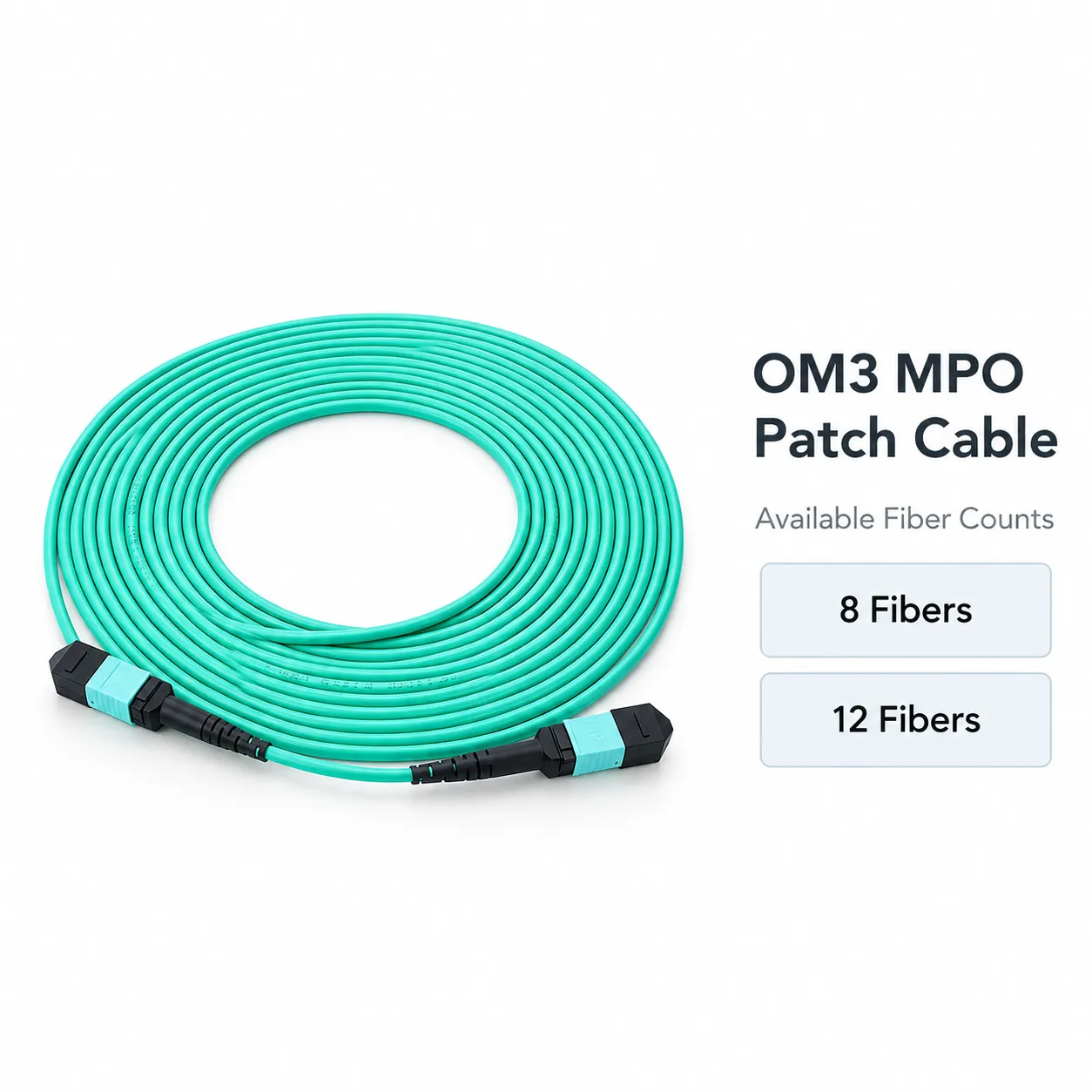

| Fiber Count | 8 or 12 fibers | End-face Polish | Multimode PC (reference configuration) |
| Test Wavelengths | 850 / 1300 nm | Loss Grade | Standard |
| Insertion Loss | ≤0.7 dB (standard grade) | Return Loss | ≥20 dB (MM/PC standard) |
| Mating Durability | 50 mating cycles; insertion-loss change <0.2 dB | Cable Tensile Strength | 100 N |
| Minimum Bend Radius | 10 × D (static); 20 × D (dynamic) | Operating Temperature | −25°C to +70°C |
| 8-Fiber Length Options | 1m, 2m, 3m, 5m | 12-Fiber Length Options | 1m, 2m, 3m, 5m, 10m |
In the bend-radius specification, D denotes the cable outer diameter.
Strict Quality Control System
| Consistent stable quality is our core competitiveness for fiber optic products. Our technical team has extensive experience in fiber optic communication. |
Quality Certification
| We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc. |
 |
Our Advantages
Short Lead Time Fast Delivery
Professional Service Technical Support
Worry-Free Guarantee Shopping Satisfactorily
Premium Quality High stability
