LC Female Hybrid Fiber Optic Adapter for SC FC and ST Female Ports with Long and Short Options

LC Female Hybrid Fiber Optic Adapter for SC FC and ST Female Connectors

This LC Female Hybrid Fiber Optic Adapter connects an LC plug to the selected SC, FC or ST plug through a passive female-to-female interface. The product page offers three connector pairings—LC female to SC female, LC female to FC female and LC female to ST female—with a Long or Short version of each, making six purchasing options.

Unlike a same-interface coupler, the two sides use different connector families. Select the connector pairing first, then confirm the Long or Short body and flange arrangement required for the panel or equipment position. The adapter provides mechanical optical mating and does not change fiber mode, end-face polish or wavelength.

Select the Opposite Connector Family

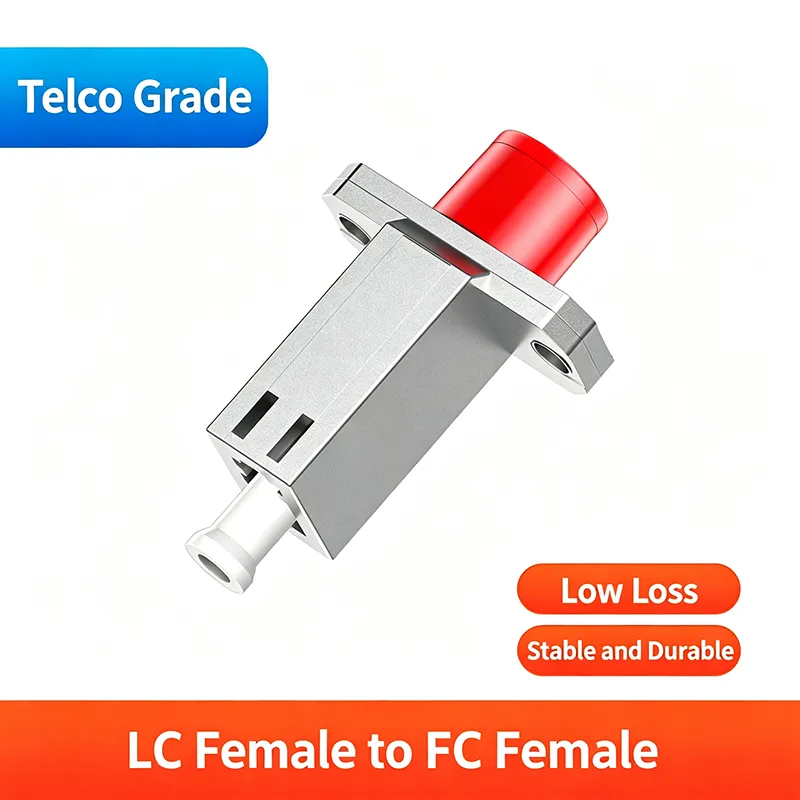

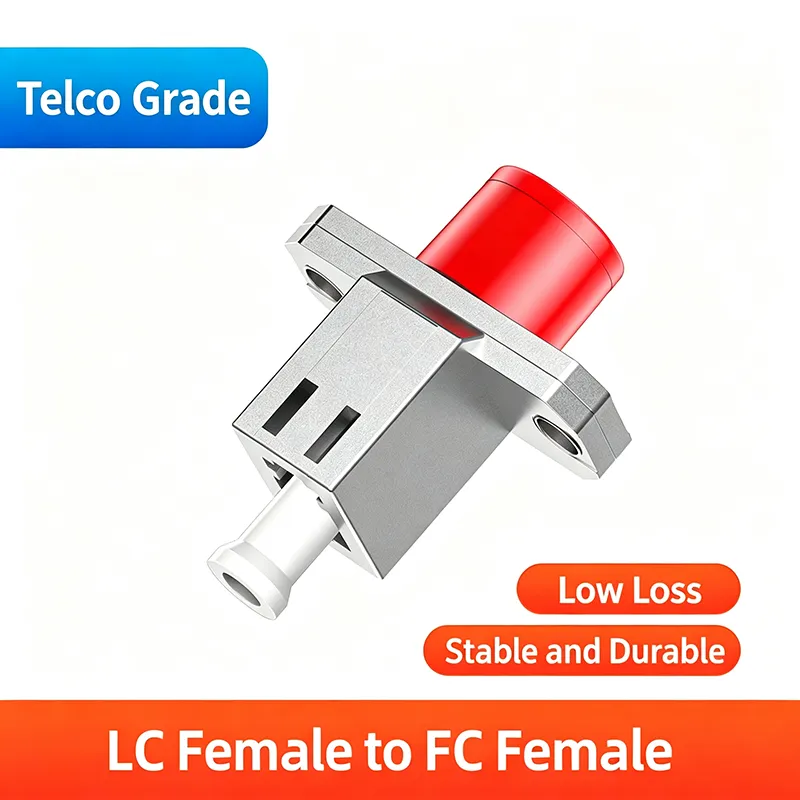

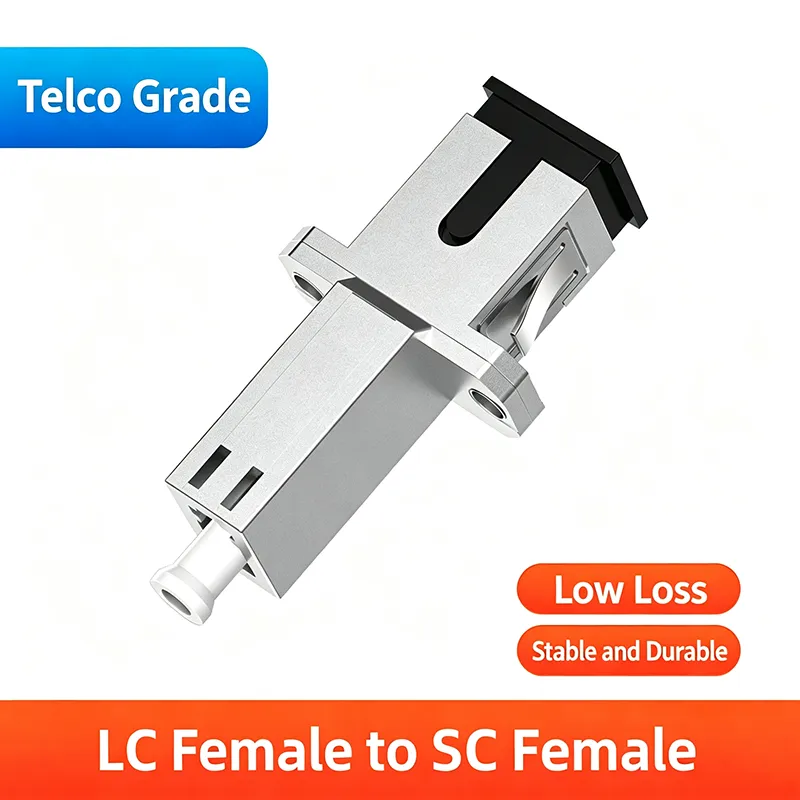

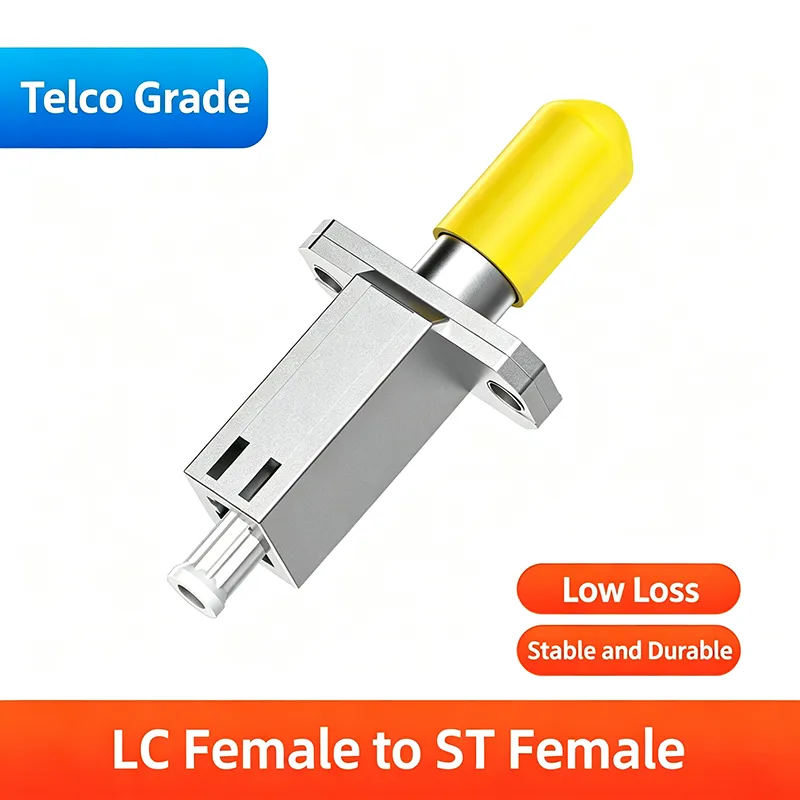

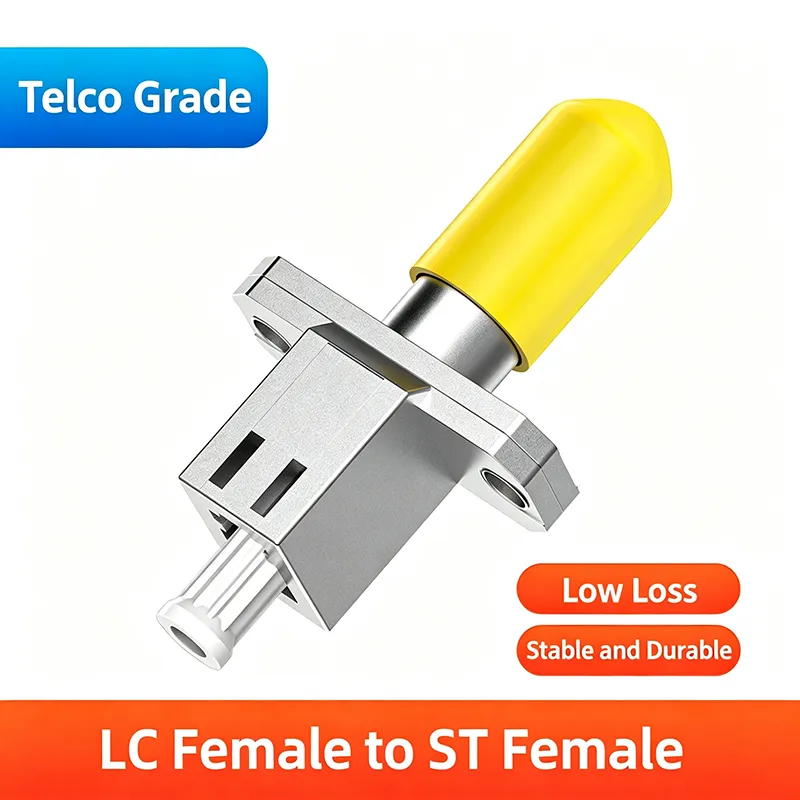

For the LC Female Hybrid Fiber Optic Adapter, choose LC-to-SC when the other patch lead has an SC plug, LC-to-FC for an FC plug, or LC-to-ST for an ST plug. The LC side remains female in every listed version. Although the connector housings differ, correct ferrule and polish matching must still be confirmed for the actual fiber link.

Long and Short Form Factors

The LC Female Hybrid Fiber Optic Adapter is offered in Long and Short bodies for each connector pairing. These describe physical construction, not different optical transmission modes. Before replacing a fitted part, compare the mounting-hole position, flange profile, reach into the enclosure, clearance behind the panel and the dimensions of the selected variant; the names Long and Short alone do not establish interchangeability.

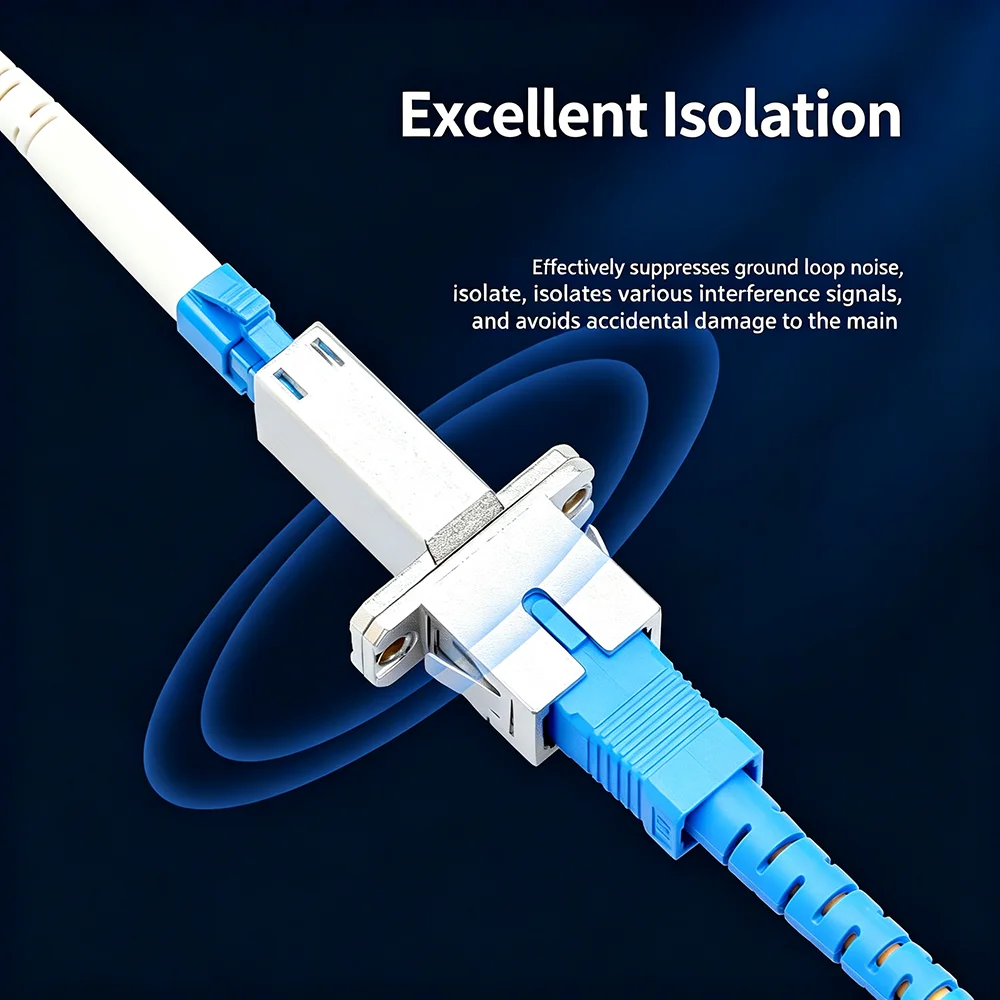

Hybrid Panel Patching and Fit

The LC Female Hybrid Fiber Optic Adapter brings two different connector families together at a suitable passive female-to-female mating point. It is not interchangeable with a male-to-female test-instrument adapter, and it does not replace an optical converter. Keep dust away from open ports and verify that the selected flange style suits the enclosure.

Fiber optic adapters provide a mating interface between compatible fiber connectors. The correct adapter depends on connector type, mating direction, fiber mode, polish compatibility and mounting requirements. Standard adapters join matching connector interfaces, while hybrid adapters connect different connector types. Check the product’s individual specifications before installation.
