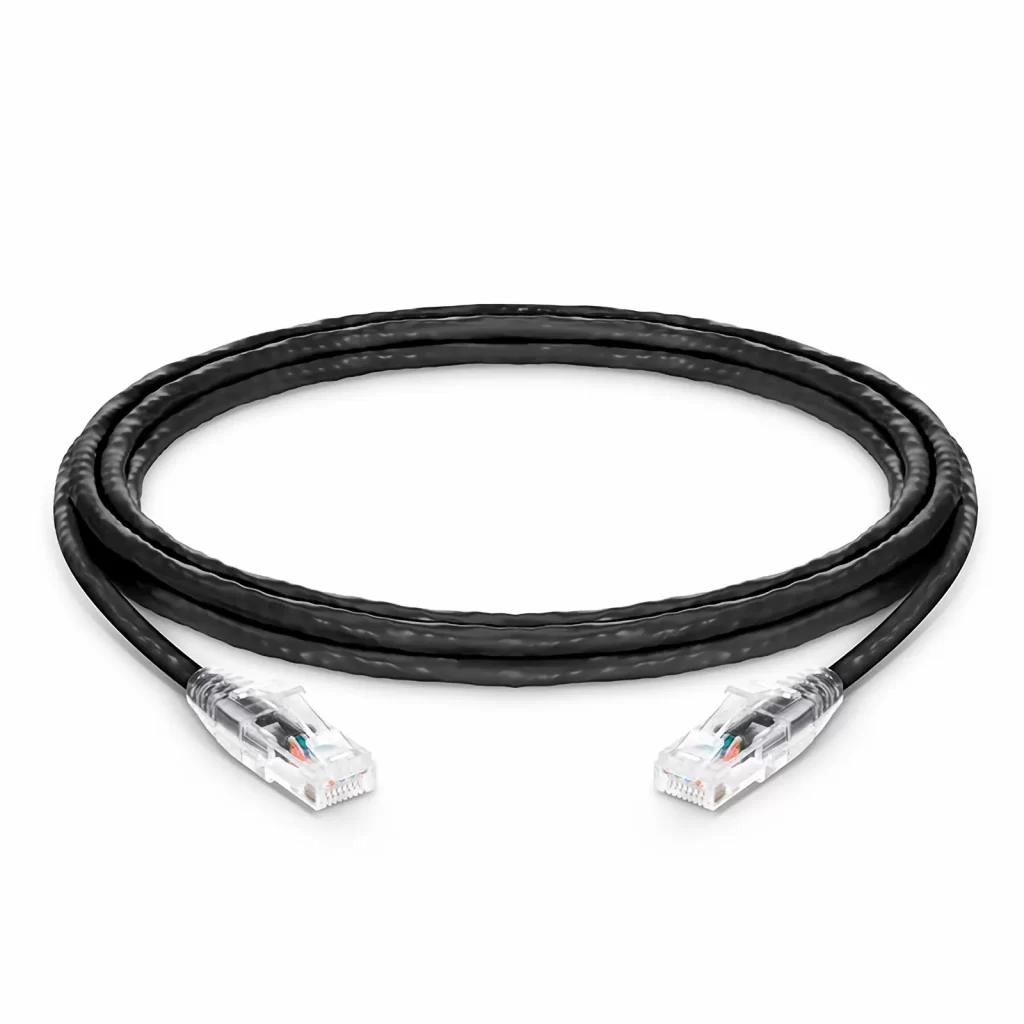

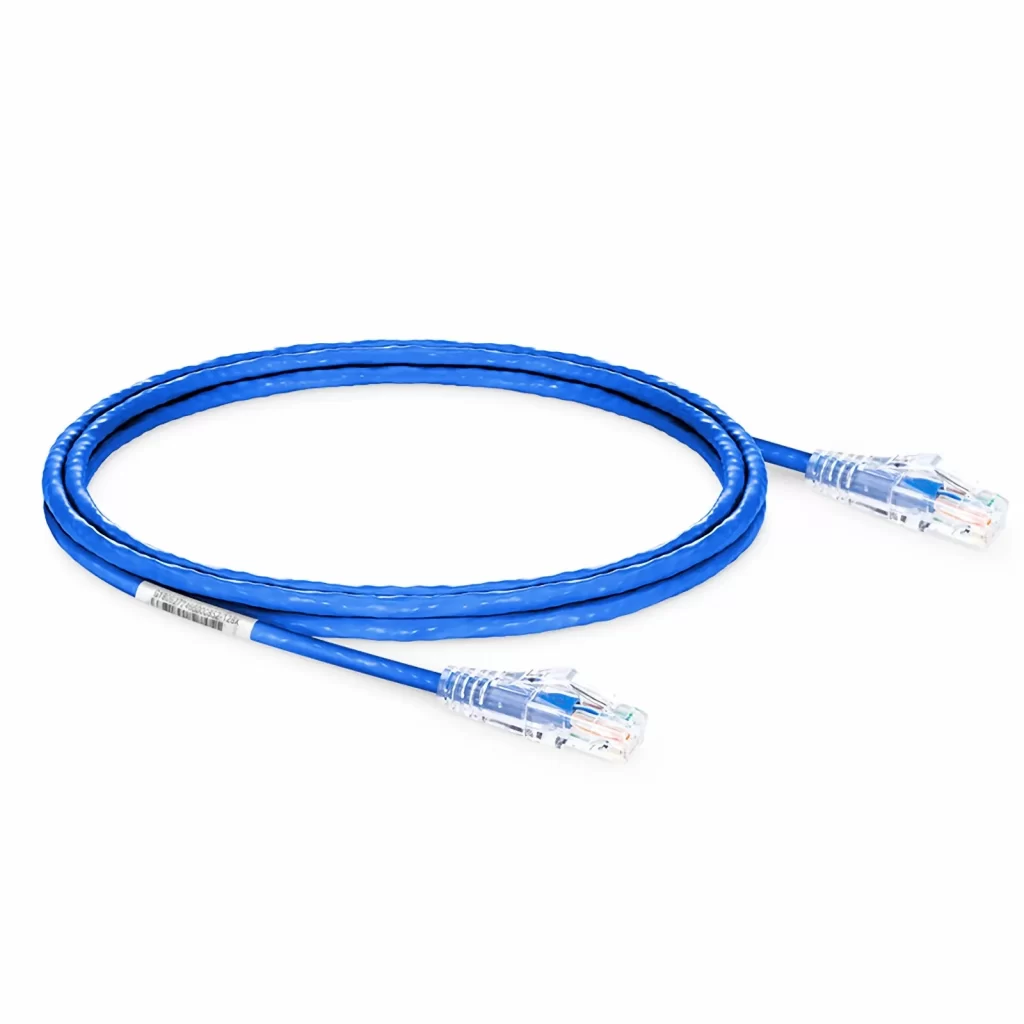

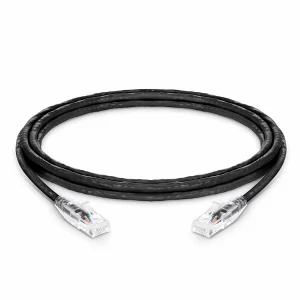

Cat6 24AWG Snagless Unshielded (U/UTP) PVC CM Ethernet Network Patch Cable, (5pcs/pack)

×

Presupuesto al por mayor:



Cat6 24AWG Snagless Unshielded (U/UTP) PVC CM Ethernet Network Patch Cable, (5pcs/pack)



    El cable de conexión UTP Cat5e incluye un cable de cobre trenzado de par trenzado no apantallado 24AWG con un conector modular de alto rendimiento en cada extremo.

    US $34.20
    • Utilizar materias primas de alta calidad
    • Entrega rápida por defecto DHL o Fedex
    • 60 días de devolución y cambio sin preocupaciones
    • Atención al cliente profesional

    Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, 24AWG, 1000Base-T

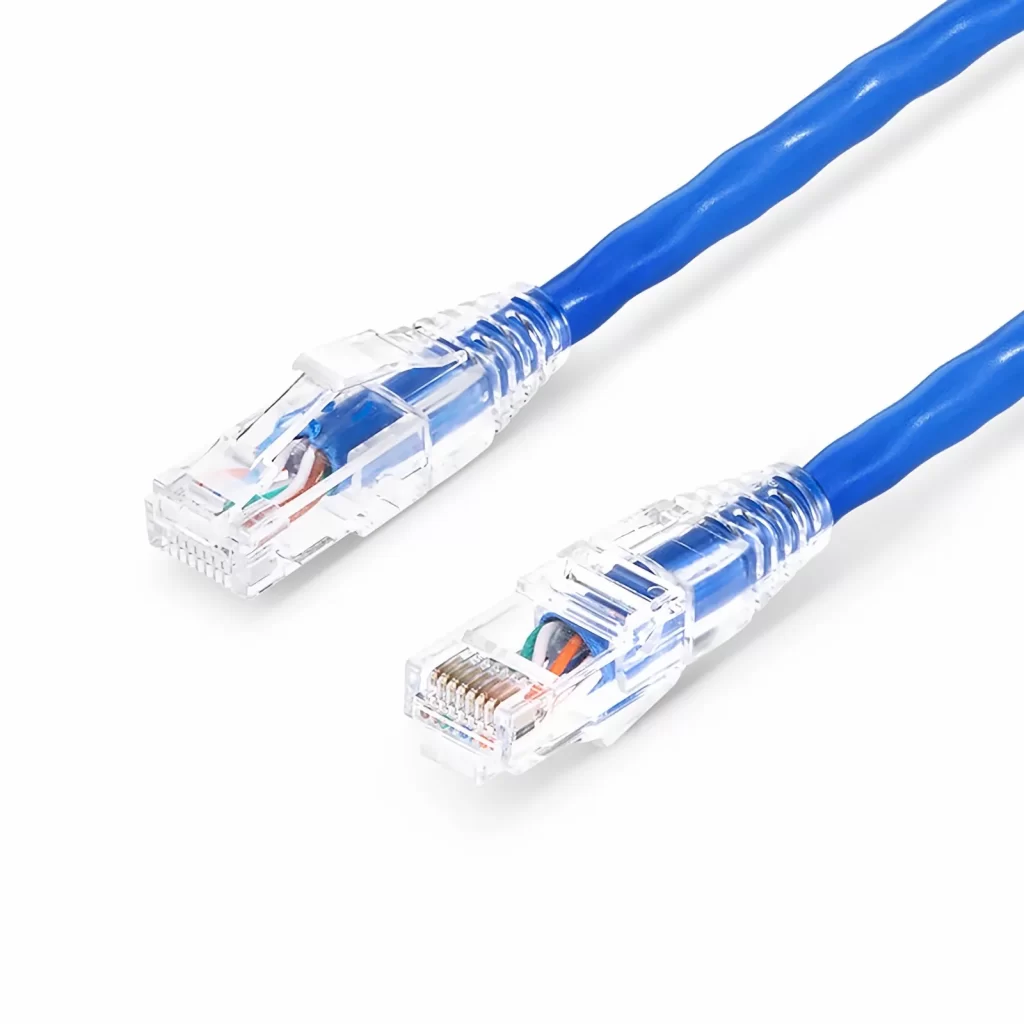

    Cat6 UTP patch cable features 24AWG unshielded twisted pair stranded pure bare copper cable with a high performance modular plug at each end. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation. The flexible strain relief boot provides easy access in high-density applications.
    It exceeds the performance of the Cat6 Ethernet network cable standard and offers the cost-effective solution for indoor Gigabit Ethernet data center applications, supporting up to 1000Mbps and 550MHz within 100 meters of cable. All patch cords shall be compatible with both T568B wire scheme. Stranded copper patch cable can be used with a longer flex-life. Tested and verified to meet Cat6 component requirements for ANSI/TIA-568.2-D and ISO/IEC 11801 standards. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.

    Specifications
    Cable Type
    Cat6 Snagless
    Shielding Type
    Unshielded (UTP)
    Cable Jacket
    PVC CM (Round)
    Length
    3m (Including Plugs)
    Conductor Material
    >99.95% Oxygen-free Copper
    Conductor Type
    Stranded
    Data Rate Support
    1000Base-T and Maximum to 10GBase-T
    Maximum (Tested) Frequency
    550MHz
    Gauge (AWG)
    24 (7/0.20mm)
    Cable Outer Diameter (mm)
    6.1 ± 0.4
    PoE Compatibility
    PoE/PoE+/PoE++
    Connectors
    RJ45 (Male)
    Wire Scheme
    T568B, Straight
    Standard
    ISO/IEC 11801, ANSI/TIA-568.2-D
    Plug Type
    8 Position
    Support FSWireNet
    Yes
    Operating Temperature
    -20 to +75°C (-4 to 167°F)
    Installation Temperature
    -10 to +50°C (14 to 122°F)
