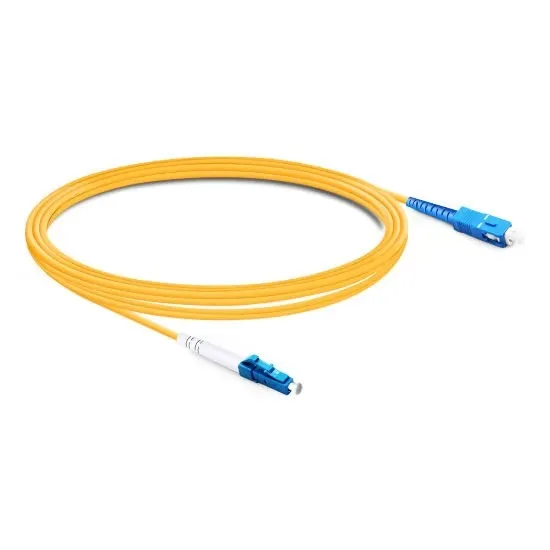

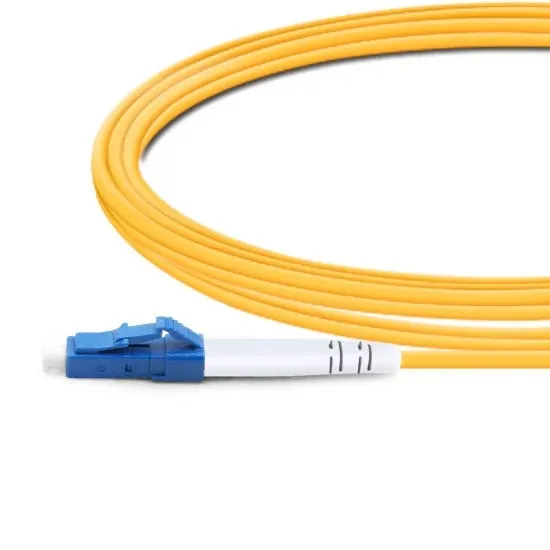

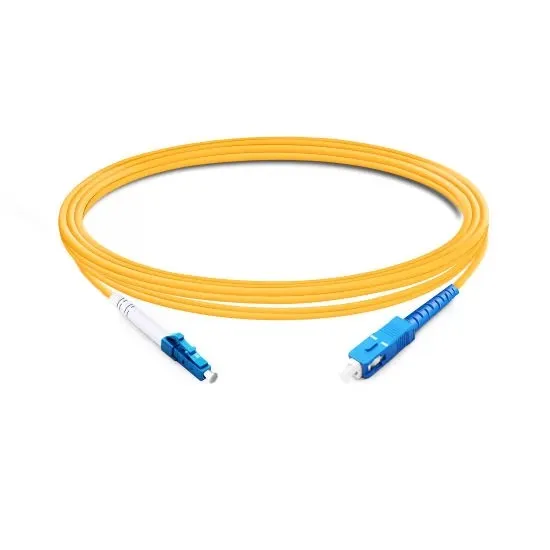

LC UPC to SC UPC OS2 Single-Mode Simplex Fiber Optic Patch Cord, 2.0mm LSZH

LC UPC to SC UPC OS2 Single-Mode Simplex Fiber Optic Patch Cord with 9/125μm fiber, a 2.0mm LSZH jacket, and eight length options.

نطاق السعر: من ⁦$1.95⁩ خلال ⁦$8.73⁩
الطول

LC UPC to SC UPC OS2 Single-Mode Simplex Fiber Optic Patch Cord with 2.0mm LSZH Jacket

The LC UPC to SC UPC OS2 Single-Mode Simplex Fiber Optic Patch Cord connects an LC/UPC interface at one end to an SC/UPC interface at the other. It uses OS2 9/125μm single-mode fiber in a one-fiber simplex construction, with a 2.0mm low-smoke zero-halogen (LSZH) jacket.

Use this patch cord for compatible indoor fiber patch panels, optical equipment and fiber-to-the-home or telecommunications connections requiring LC/UPC and SC/UPC ports. Select from 1m, 2m, 3m, 5m, 10m, 15m, 20m and 30m lengths. Both ends use UPC-polished connectors and should be matched to the corresponding connector type and polish on each port.

Connector ALC/UPCConnector BSC/UPC
Fiber TypeOS2 9/125μm single-modeFiber StructureSimplex (one fiber)
Cable JacketLSZHCable Diameter2.0mm
Available Lengths1m, 2m, 3m, 5m, 10m, 15m, 20m, 30mInsertion Loss≤0.5dB
ApplicationsFTTH, telecommunications networks, indoor fiber patchingConnector PolishUPC at both ends
OS2 singlemode simplex fiber patch cord structure illustration showing fiber core, cladding, coating, aramid yarn and LSZH jacket
OS2 singlemode simplex fiber patch cord with anti-stretch aramid yarn for tensile and bending resistance
OS2 singlemode simplex fiber patch cords connected in a rack-mounted fiber optic distribution application

Strict Optical Cable Performance Inspection

Fiber patch cords require stable transmission performance and long service life.
We select high-standard single-mode fiber core, premium LSZH outer material
and mature production process to support stable optical transmission,
reliable connector performance and long-term network deployment.
3D interferometer test for OS2 singlemode simplex fiber patch cord connector end-face geometry

3D Interferometer Test

End-face inspection of an OS2 singlemode simplex fiber patch cord connector using a fiber inspection microscope

End-Face Inspection

Insertion loss and return loss testing setup for an OS2 singlemode simplex fiber patch cord

Insertion Loss and Return Loss Testing

Strict Quality Control System

Consistent stable quality is our core competitiveness for fiber optic products.

Our technical team owns rich experience in single-mode fiber communication field.

Our factory owns complete production and testing workshops,

and supports customized OEM & ODM service for various network system suppliers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers,

quality control process and production technology,

and compliance with certification and safety standards.

At present, our products meet the industry standards

and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

CableFam quality certification graphic



Our Advantages

Fast Shipment

Short Lead Time Fast Delivery

Professional Support

Professional Service Technical Support
Quality Guarantee

Worry-Free Guarantee Shopping Satisfactorily
Premium quality badge representing CableFam product quality and stability

Premium Quality High stability

أسئلة متكررة

What are the differences between LC and SC fiber connectors?

LC connector is small-sized with a latch lock, saving cabinet space and widely used in high-density data center optical switches. SC connector adopts square push-pull design, easy to plug and unplug, commonly applied in traditional communication equipment rooms, PON optical splitters and security monitoring devices. Both UPC flat polishing ensures stable low-loss signal transmission for conventional optical links.

Can I connect the UPC ends to APC ports?

No. UPC and APC connector end faces should not be directly mated. Choose a cable with the polish type required by each equipment port.

Where is this LC UPC to SC UPC OS2 simplex fiber jumper used?

It is suitable for interconnection between high-density data center equipment and traditional telecom machines, campus optical network construction, security video monitoring transmission and indoor optical wiring of commercial buildings.

What does simplex mean for this patch cord?

Simplex means this patch cord contains one optical fiber, rather than the two fibers of a duplex cord. Check the fiber count required by your link.
