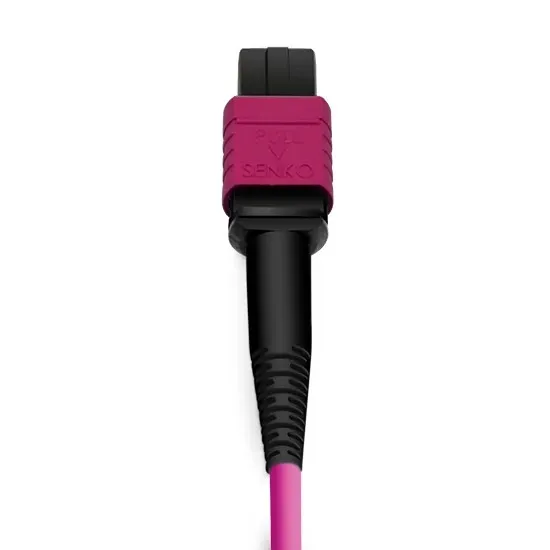

كابل جذعي MPO بطول 16 ألياف أنثى إلى أنثى، القطبية B، LSZH، ألياف متعددة الأنماط OM4 50/125، UPC

Product Identity and Branding

This fiber optic cable is manufactured by Cablefam, a trusted provider of connectivity solutions. It is identified by the specific model number SLC-LC-M-002, ensuring precise compatibility and standardization for your networking infrastructure.

Fiber Performance

Designed for versatile data transmission, this cable utilizes Multimode fiber technology. This type of fiber is optimized for short-distance communication, making it an ideal choice for LANs, data centers, and internal building connections where high bandwidth is required over shorter runs.

Safety and Origin

The product is sourced from Mainland China and adheres to strict safety standards. It is certified as containing None regarding high-concerned chemicals, guaranteeing a safer composition for both installation personnel and the environment.

Quality Assurance

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

• Connector & Fiber Specs

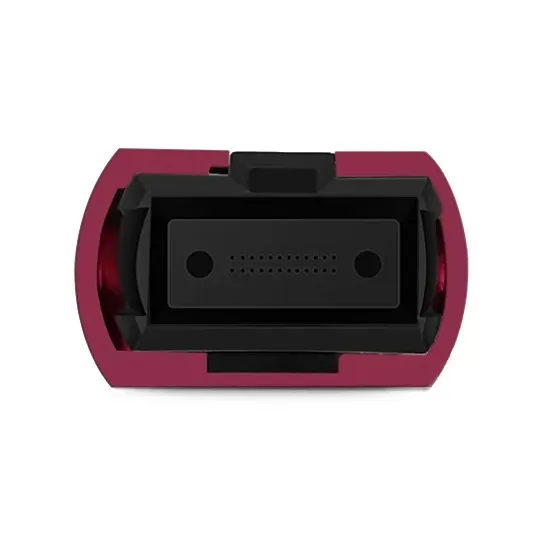

  Connector A & B: MPO Female; Fiber Type: OM4 50/125µm Multimode; Fiber Count: 16 Fibers; Wavelength: 850/1300nm;

• Optical Performance

  Polish Type: UPC to UPC; Insertion Loss: 0.75dB Max (0.35dB Typ.); Return Loss: ≥20dB; Attenuation at 850nm: ≤2.3 dB/km; Attenuation at 1300nm: ≤0.6 dB/km.

• Mechanical & Environmental Details

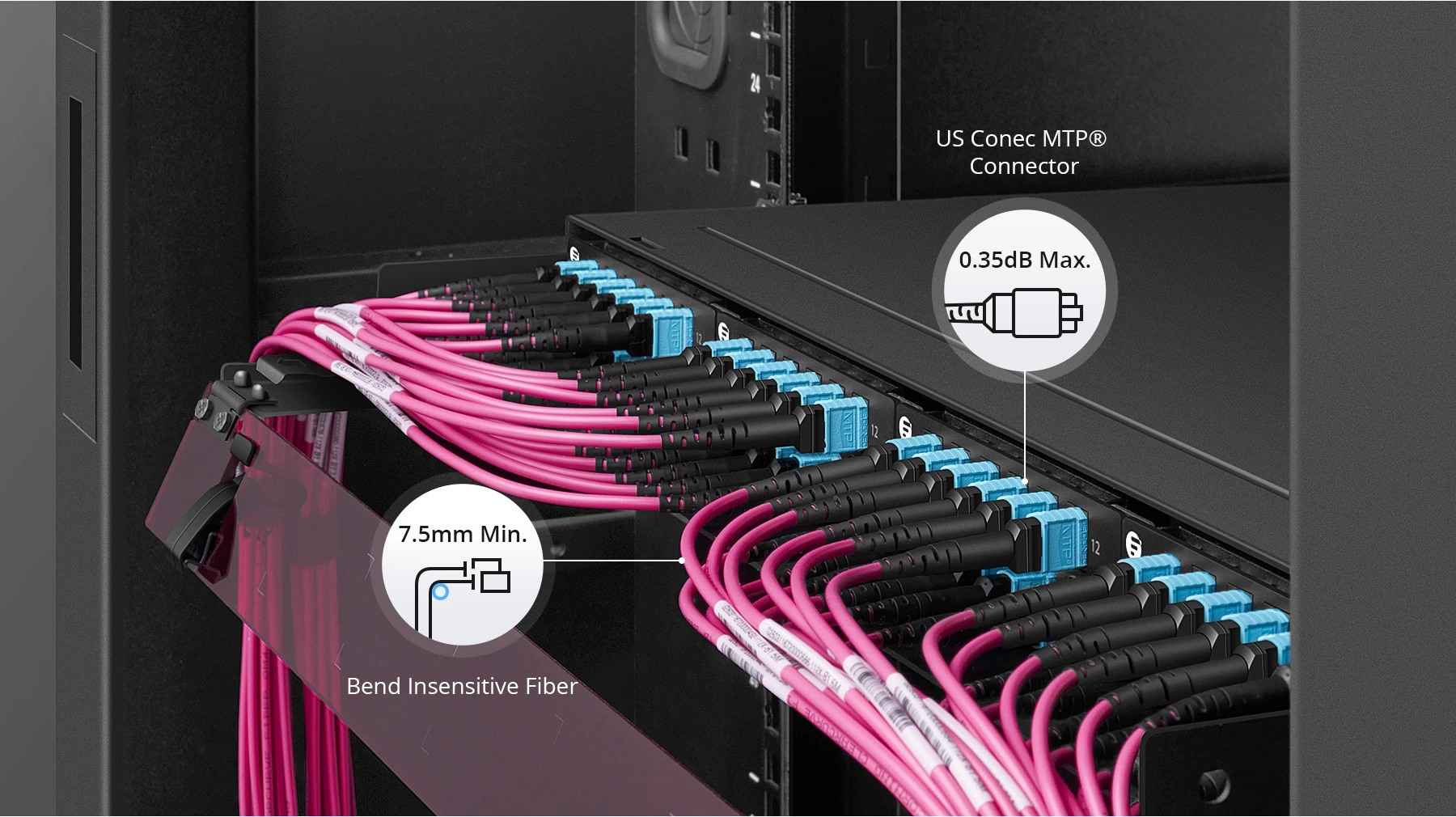

  Glass Fiber: Corning ClearCurve®; Jacket: LSZH; Cable Diameter: 3.0mm; Fiber Color: Aqua/Violet; Min Bend Radius: 7.5mm; Installation Tensile Load: 66N; Long-Term Tensile Load: 50N; Operating Temp: -10°C to +70°C; Storage Temp: -40°C to +85°C.
